Applications

Ventilated Doors for Fresh Air and Performance

Fresh air and ventilation reduce air pollutants, odors, and the potential for mold growth while helping to regulate building air pressure. The key is not to leave doors open to achieve this but instead use ventilated high-performance doors.

  • Helps keep pests, insects or other unwanted contaminants out

  • High-speed operation keeps fast-paced facilities moving while lower-cycle doors still provide a barrier

  • Secure rigid rolling and roll-up fabric models available

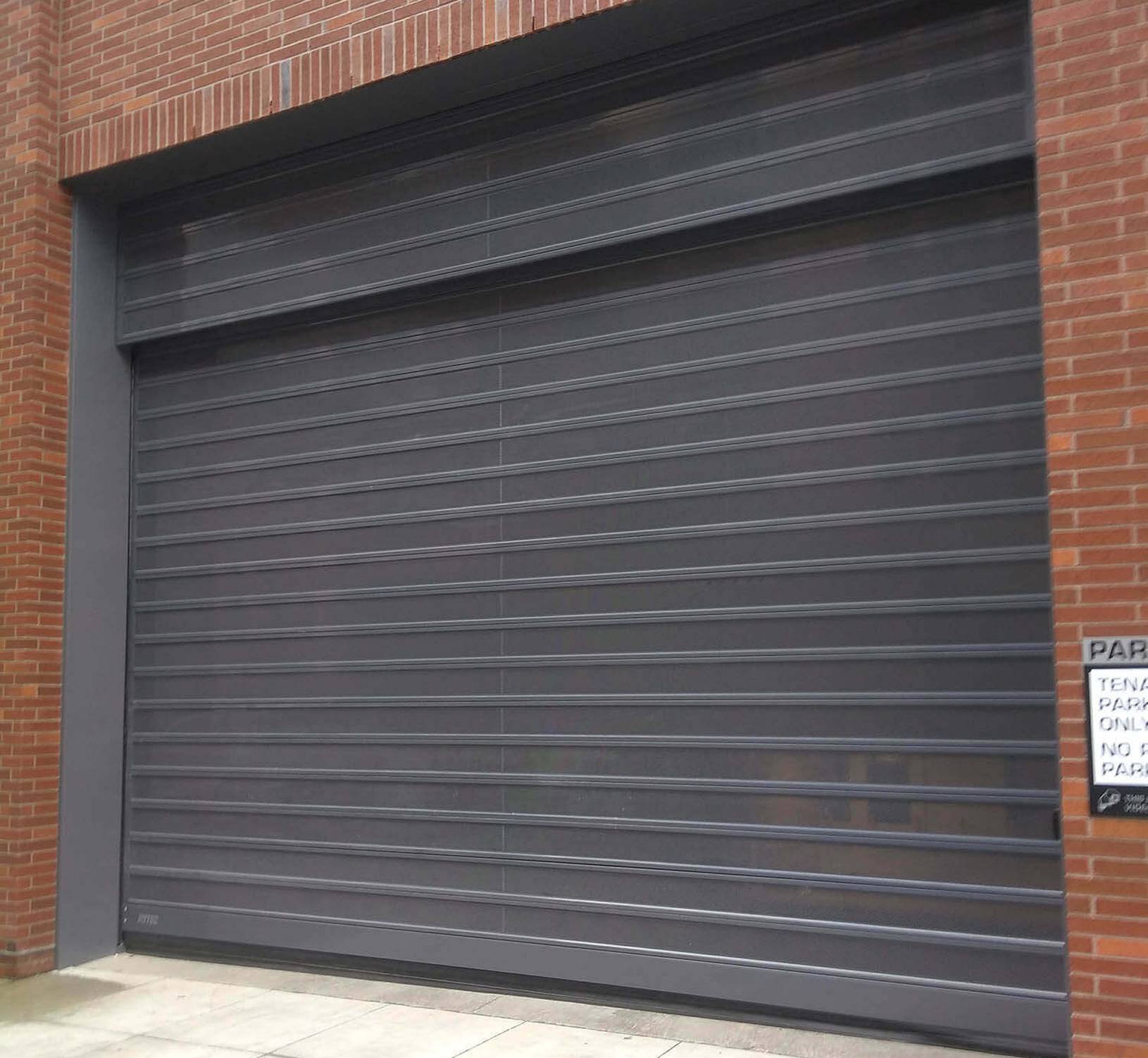

Spiral VT Parking Garage Door on Brick Building

How to Choose Your Ventilated Door

Not sure which model fits? Here’s how to get to the right spec.

  1. Define your application.

    What are the air transfer needs, traffic flow, size, and what's moving through it?

  2. Talk to a Rytec specialist.

    Share your conditions and we’ll recommend an appropriate model.

  3. Schedule a site visit.

    Your local rep or dealer takes measurements and confirms specifications.

  4. Receive your quote.

    Get a recommendation that’s customized to your specific needs.

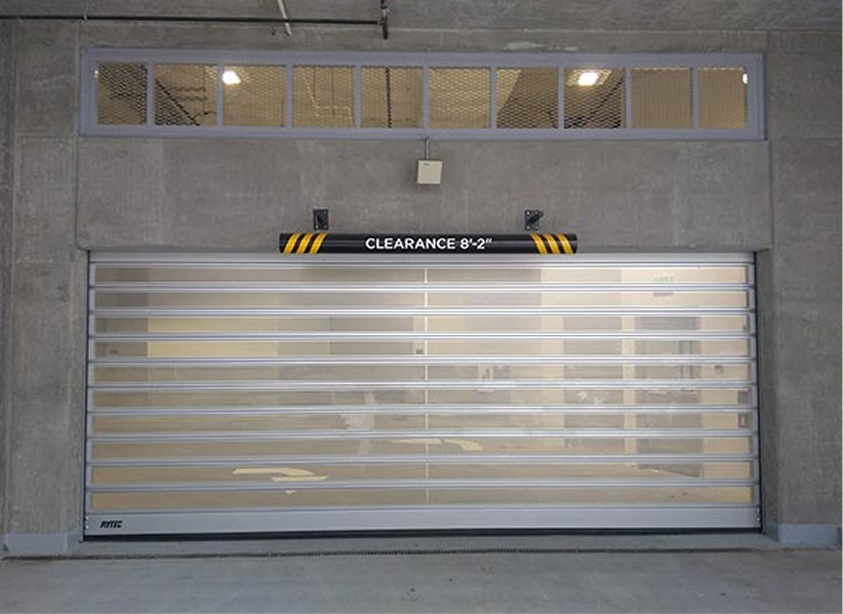

Spiral VT door with a clearance sign above

Which Door Best Fits Your Operation?

Bantam®

Interior and exterior manually operated, low-cycle door with Break-Away capabilities for low traffic environments.

  • Up to 10' wide × 10' high with a vinyl panel

  • Manual operation or motorized option available with speeds up to 12 inches per second
Bantam

PredaDoor® NXT®

Versatile and durable high-performance fabric roll-up door provides unprecedented reliability for interior and exterior applications.

  • Up to 16' wide × 16' high, 2-ply Rylon® panel standard with full perimeter seals

  • Opens at up to 50 inches per second, Quick-Set Break-Away tabs allow the bottom bar to release on impact in either direction and easily be reset

PredaDoor NXT

Fast-Seal®

The first high-performance Break-Away™ fabric door, engineered to last, take a hit and withstand high winds or negative pressure.

  • Up to 35' wide or 24' high, 3-ply Rylon® panel standard with full perimeter seals and reinforced side frames

  • Opens at up to 50 inches per second, Quick-Set™ Break-Away™ tabs allow the bottom bar to release on impact in either direction and easily be reset

Fast-Seal

Spiral® VT

High-performance rigid rolling door with unique panel design allows for maximum ventilation while maintaining safety, speed and security.

  • Up to 20′ wide × 19′ 8"  high, standard perforated slats for secure ventilation

  • Opens at up to 100 inches per second using a unique, patented Spiral design that creates no metal-to-metal contact creating less door panel wear and tear
Spiral

Frequently Asked Questions

Yes. Many ventilated garage doors can appear vulnerable to security breaches, but the Spiral® VT rigid rolling door is specifically engineered to deliver solid security, optimal airflow, and high speed together, making it a strong fit for parking structures.
