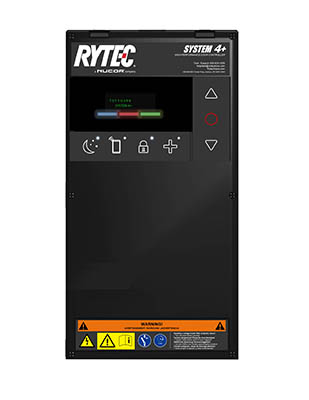

All New System 4+™ Drive and Control
NEW for 2026 – Rytec introduces System 4+™ Drive and Control. Currently transitioning on select models, it features all System 4® functionality and brings even more to the Rytec portfolio of high-performance doors. Its 24VDC power supply is nearly 3x the size of original System 4 and includes standard integrated Bluetooth capability plus an additional configurable output relay. With integrated operational log memory, integrated switches and standard configurable function buttons, its power plus functionality is unparalleled – and is backward compatible with System 4® and System 3® controlled doors.
-
Benefits
- Monitors power consumption and utilizes dynamic speed curves.
- Three buttons enable total digital control of all door functions, parameters and positioning.
- Additional nighttime, Bluetooth, lock and custom buttons for even more programming control.
- Records up to 6 months of operational details and door movement history.
- UL/cUL listed controller and complete assembly in a NEMA 4X enclosure.
- Increased power supply to support common ancillary components.
Construction
- NEMA 4X Polycarbonate Plastic Enclosure
- 208VAC, 230VAC 1-Phase or 3-Phase or 460VAC 3-Phase Power
- Variable Frequency Drive
- Absolute Encoder
- Low-Voltage Color-Coded Terminals
Options
- 575 Volt / 3-Phase Power

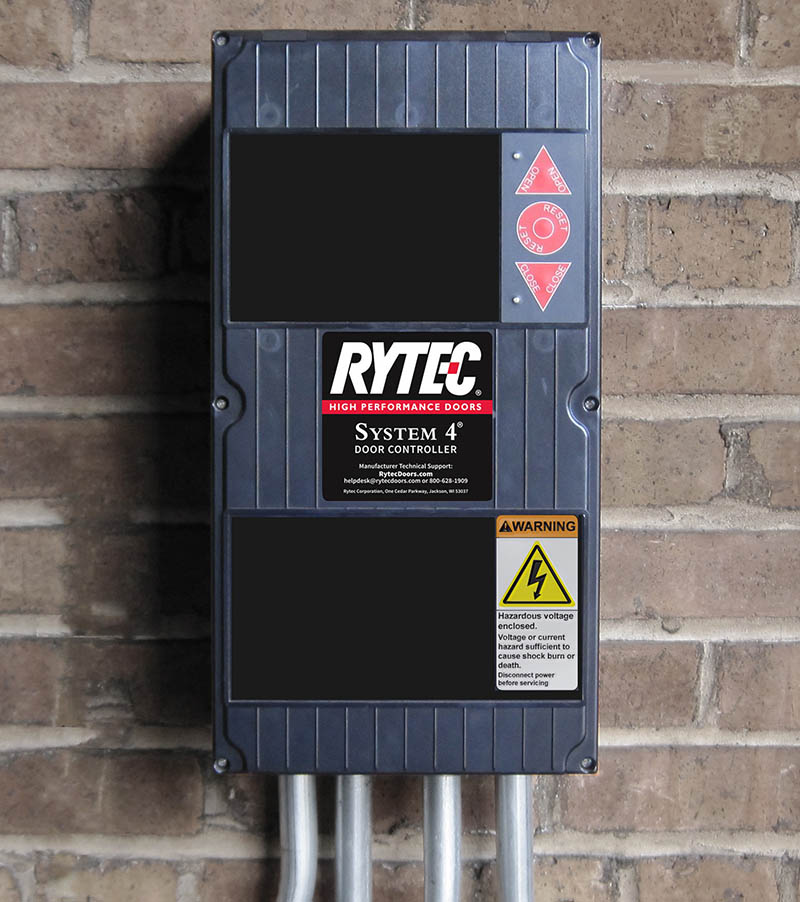

Standard System 4® Controller
When originally released our standard System 4® Door Controller had greater functionality and unprecedented efficiency than controllers before it. Rytec’s next-generation System 4 Door Controller took performance to a whole new level. It was faster, smarter, smaller and easier to install than other high-speed door controllers. Its intelligent processor and variable frequency drive generates an energy-efficient speed curve for smooth motion, soft starting and soft stopping.
As we transition to the new System 4+, the standard System 4 still provides great functionality and is controlling thousands of doors out in the field today – but if additional connectivity is desired do not hesitate to contact your Rytec representative to see if upgrading is right for you.
- Fast and smoother operation with full control of speed adjustments.
- Three simple buttons enable total digital control of all door functions, parameters and positioning.
- UL/cUL listed controller and complete assembly in a NEMA 4X enclosure.
- Easy to read vacuum fluorescent display provides scrolling messages and easy to understand instructions.

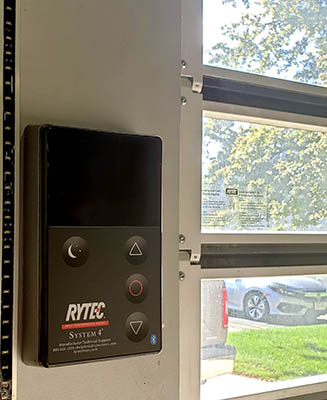

BTA4 and the Exclusive Pre-Wired Premium Package
Taking advantage of the power of the System 4 Door Controller and combining it with the slimmer, smaller, state-of-the-art BTA4 remote door controller the exclusive pre-wired premium package provides architecturally enhanced aesthetics at floor level and simplifies field installation. Factory-tested, certified and warrantied, it provides factory-tested wiring preinstalled in the head assembly before shipment.
- Multiple mounting options for BTA4 controller, even in the side column.
- Faster electrical installation provides minimal disruption to operations.
- Provides easy Bluetooth access and control for service programming and updating.
- Industry-leading 3-year extensive warranty electrical component coverage.
See the System 4® Door Controller in Action
Performance Under Control
