PredaDoor® NXT® For Demanding, High-Traffic Facilities

The PredaDoor® NXT® is built to withstand the demands of busy, high-traffic facilities. Engineered with durable components and the ability to break-away if impacted, it can be reset with the touch of a button.

  • Opens at up to 50 inches per second and seals fully around the perimeter with a standard 2-ply Rylon® panel

  • Quick-Set™ Break-Away™ tabs release on impact in either direction

  • Ry-Wi® Wireless System runs two-way communication between the control box and bottom bar with no coil cords to replace

  • 5-year limited warranty on motor, mechanical components, and Rylon® panel material
Request a Quote Compare Models View Product Sheet

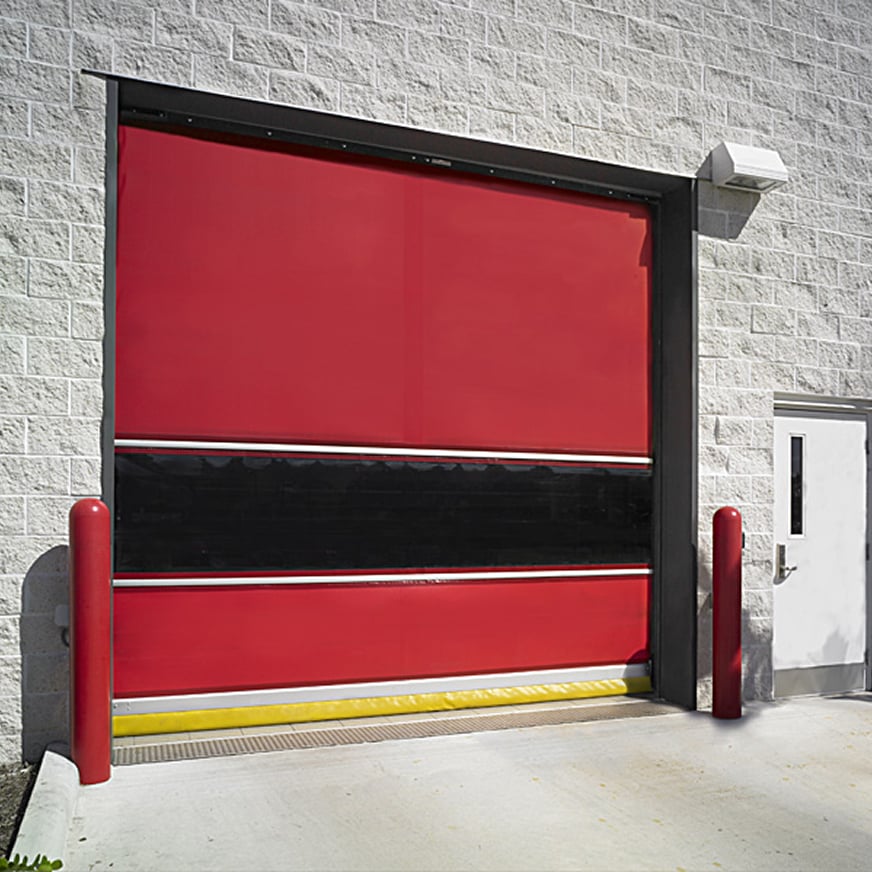

PredaDoor NXT door-small

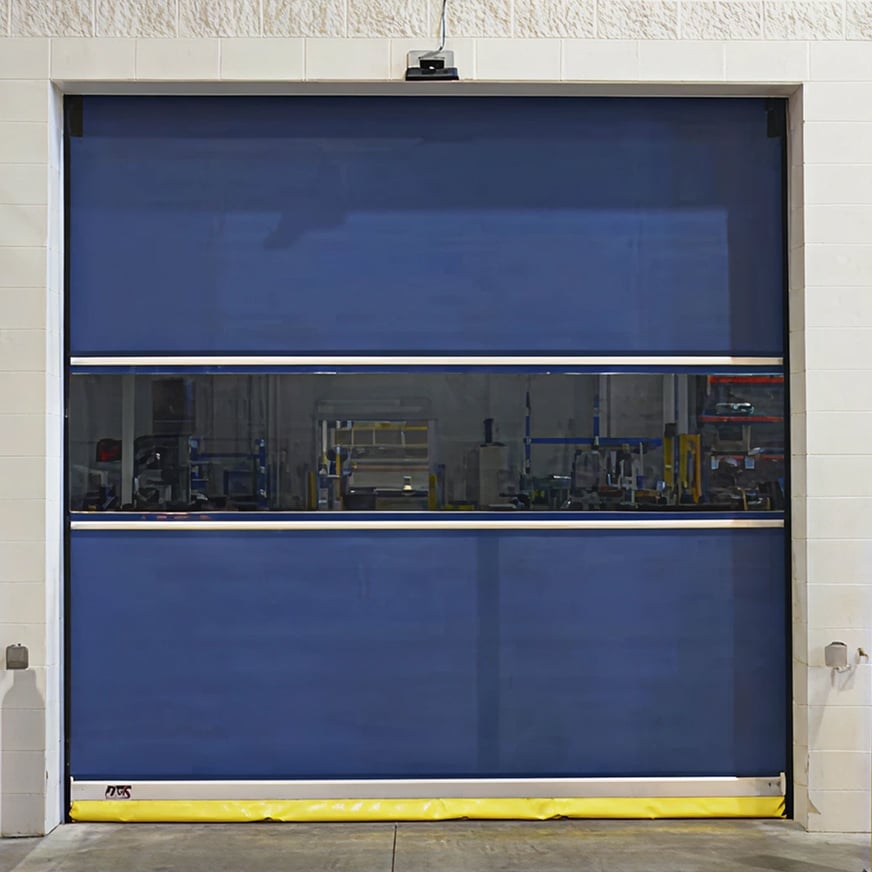

PredaDoor NXT-small

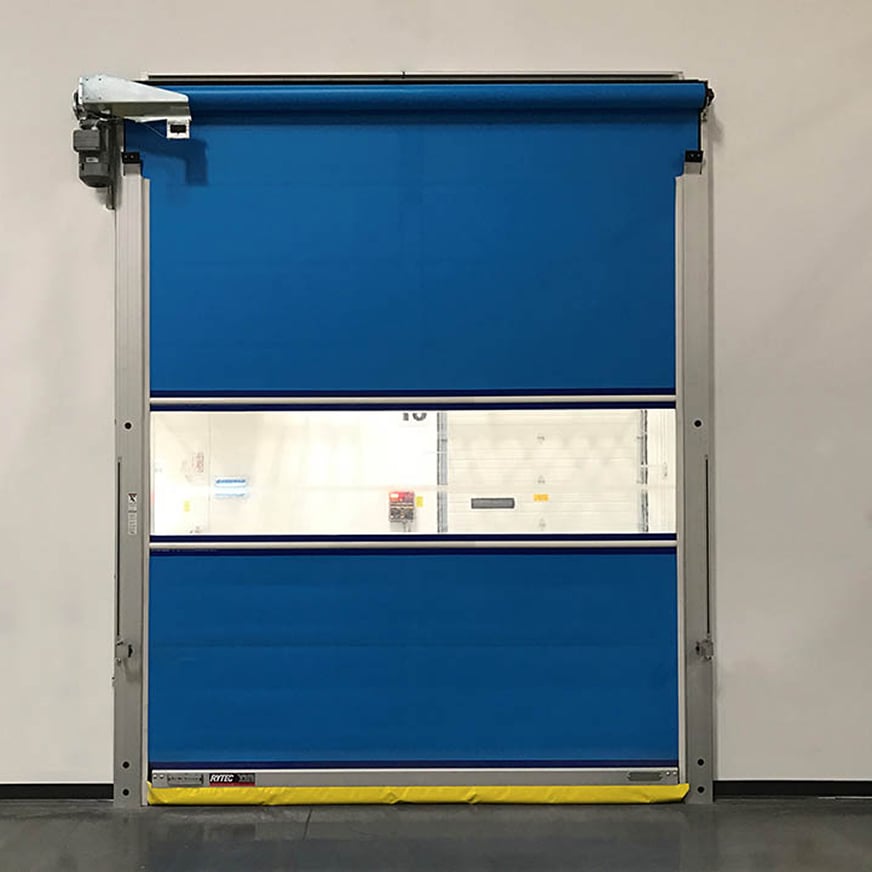

PredaDoor NXT-2

Key Specs

Opening speed
Up to 50 inches per second
Max opening size
16' wide × 16' high
Panel material

2-ply Rylon® standard; 3-ply USDA/FDA-compliant Rylon, vinyl, or screen material optional

Vision panel
Full width, replaceable
Warranty

5-year limited motor/mechanical + Rylon® panel; 2-year limited electrical

Design Professionals

Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

Why the PredaDoor® NXT®

The PredaDoor® NXT® fabric high-cycle roll-up door offers durable components, unsurpassed performance and reliability for a variety of both interior and exterior applications.

With opening speeds up to 50 inches per second, it’s easy to keep traffic flowing. And, a full perimeter seal helps you hold temperatures between zones to reduce the load on your HVAC system.

You can specify it up to 16' W x 16′ H, add USDA/FDA-compliant panels for food and beverage, or order stainless steel components for washdown environments. We back it with a 5-year limited warranty on motor, mechanical components, and Rylon® panel material for extra peace of mind.

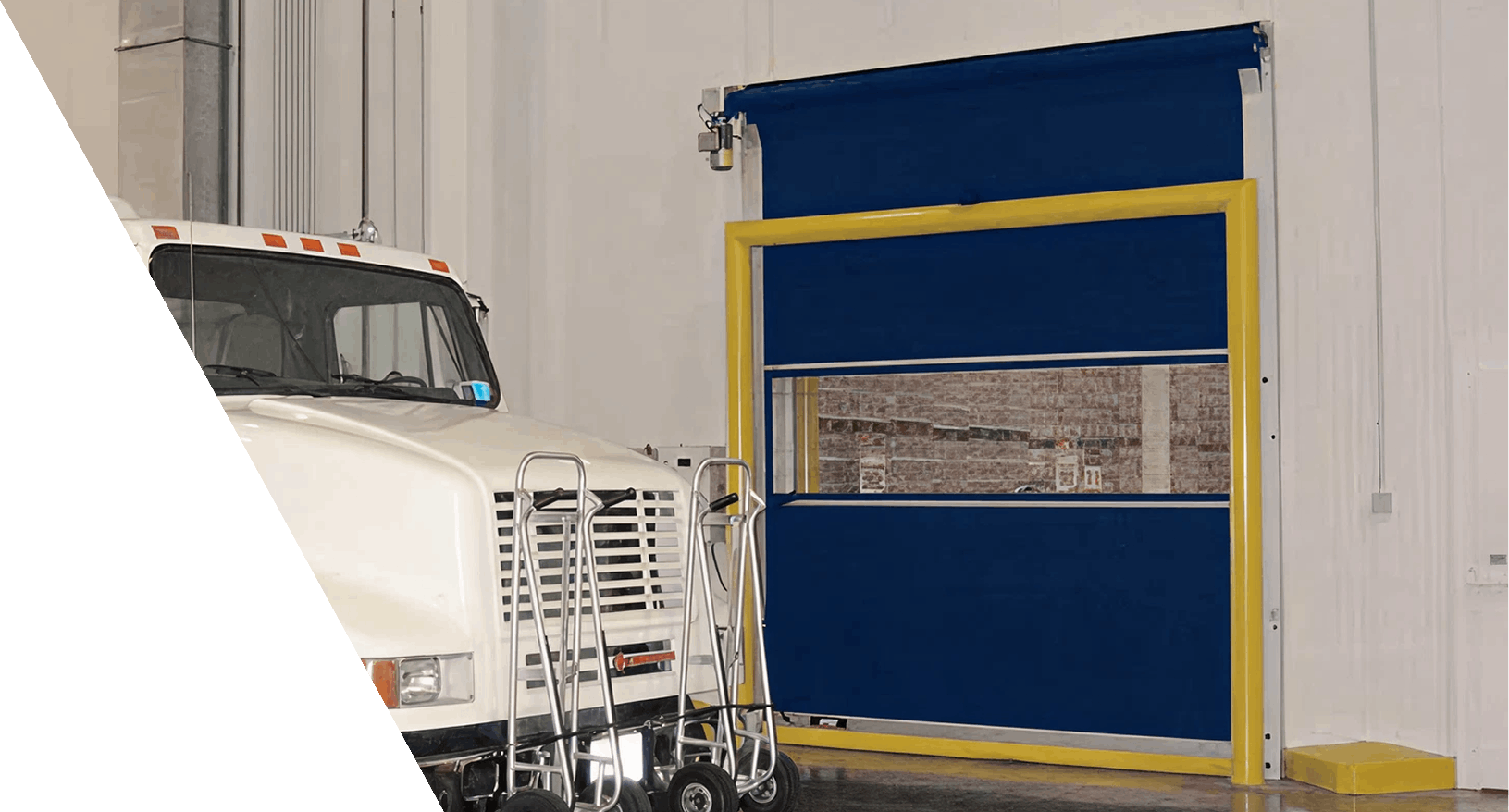

truck next to PredaDoor NXT

Technical Specs

Full operating, physical, and construction specifications for the PredaDoor® NXT®.

Operating Specifications

Opening speed

Up to 50 inches per second
Drive type

Variable AC drive with System 4+™ controller

Wireless communication

Ry-Wi® Wireless System (two-way between control box and bottom bar)

Safety system

Pathwatch® Safety Light System with dual thru-beam photo eyes and sensitivity-adjustable pneumatic reversing edge
Physical Specifications

Max width

16'

Max height

16'

Vision panel

Full width, replaceable

Headroom /side clearance

  • 20" headroom above lintel

  • 17" head projection

  • 4" side column projection

  • 8" side clearance, non-drive

  • 16" side clearance, motor side

  • Left- or right-hand motor placement
Construction Specifications

Panel

2-ply Rylon® standard; 3-ply Rylon, USDA/FDA-compliant Rylon, vinyl, or screen material optional
Wind ribs

Integral aluminum standard; fiberglass optional
Bottom bar

Extruded aluminum with Quick-Set™ Break-Away™ tabs

Side column seals

Full-height brush seals

Top seal

Edge-to-edge brush seal

Floor seal

Vinyl loop seal on bottom bar

Optional components

Stainless steel side columns, bottom bar cover, hood, or motor cover; vinyl weatherseals; car wash configuration

Common Applications

Manufacturing-card

Manufacturing

Reduce energy costs and separate different areas within facilities and loading zones.

Explore Application
Warehousing-card

Warehousing & Distribution

Provide area separation and durable exterior dock access for freight operations.

Explore Application
Parking-card

Parking

Improve security and traffic flow and enhance architectural style.

Explore Application
Cold Storage-card

Cold Storage

Provide quick access throughout fast-paced cold storage facilities.

Explore Application

Compare the PredaDoor® NXT®

Full Comparison Page
PredaDoor NXT door

PredaDoor® NXT®

Fabric Doors

Opening speed:

50 inches/sec

Vision type:

Full Width Window Panel

Panel type:

2-ply Rylon®, 3-ply Rylon®, USDA/FDA-compliant, Vinyl, Ventilated

Max size:

16′ x 16′

High-cycle, durable, and versatile door for interior and exterior use across a variety of applications, including warehousing and manufacturing.

  • Manufacturing,
  • Warehousing & Distribution,
  • Parking,
  • Food & Beverage,
  • Cold Storage,
  • Automotive Dealerships,
  • Government & Municipalities,
  • Loading Docks,
  • Transit
View details
Rytec FlexTec door

FlexTec®

Fabric Doors

Opening speed:

100 inches/sec

Vision type:

Square Window(s)

Panel type:

1-ply Rylon®

Max size:

12′ x 12′

Flexible soft-edge door that self-repairs automatically after impact in either direction.

  • Manufacturing,
  • Warehousing & Distribution,
  • Cold Storage,
  • Food & Beverage
View details
Fast-Seal doors

Fast-Seal®

Fabric Doors

Opening speed:

50 inches/sec

Vision type:

Square Window(s), Full Width Screen

Panel type:

3-ply Rylon®, 2-ply Rylon®, Ventilated

Max size:

35′ x 24′

Exterior fabric door with heavy-duty panels and Break-Away™ bottom bar for wind loads and large doorways. (600′ sq. max.)

  • Large Openings,
  • Parking,
  • Manufacturing,
  • Warehousing & Distribution,
  • Government & Municipalities,
  • Food & Beverage,
  • Heavy Equipment,
  • Loading Docks,
  • Transit
View details

Technical Resources

Product sheets, manuals, drawings, and architect resources for the PredaDoor® NXT®.

Frequently Asked Questions

The bottom bar releases in either direction on impact. The motor cuts out automatically. Push a button and the door resets in seconds.
