Fast-Seal® Fabric Commercial Roll-Up Door for Exterior Openings

Designed to withstand pressure and winds, the Fast-Seal® high-speed industrial door can also take a hit with its Break-Away™ bottom bar. Used as either an exterior fabric door or for interior applications, it can stand up to the needs of high demand facilities.

  • Reinforced side frames, thick 3-ply Rylon® panel, tight seals and counterbalance & tension system provide extreme durability

  • Patented heavy-duty Break-Away™ end brackets release on impact in either direction if impacted

  • Ry-Wi® Wireless System runs two-way communication between the control box and bottom bar with no coil cords to replace

  • 5-year limited warranty on motor and 3-ply Rylon panel material, plus 2-year limited warranty on mechanical and electrical components
Request a Quote Compare Models View Product Sheet

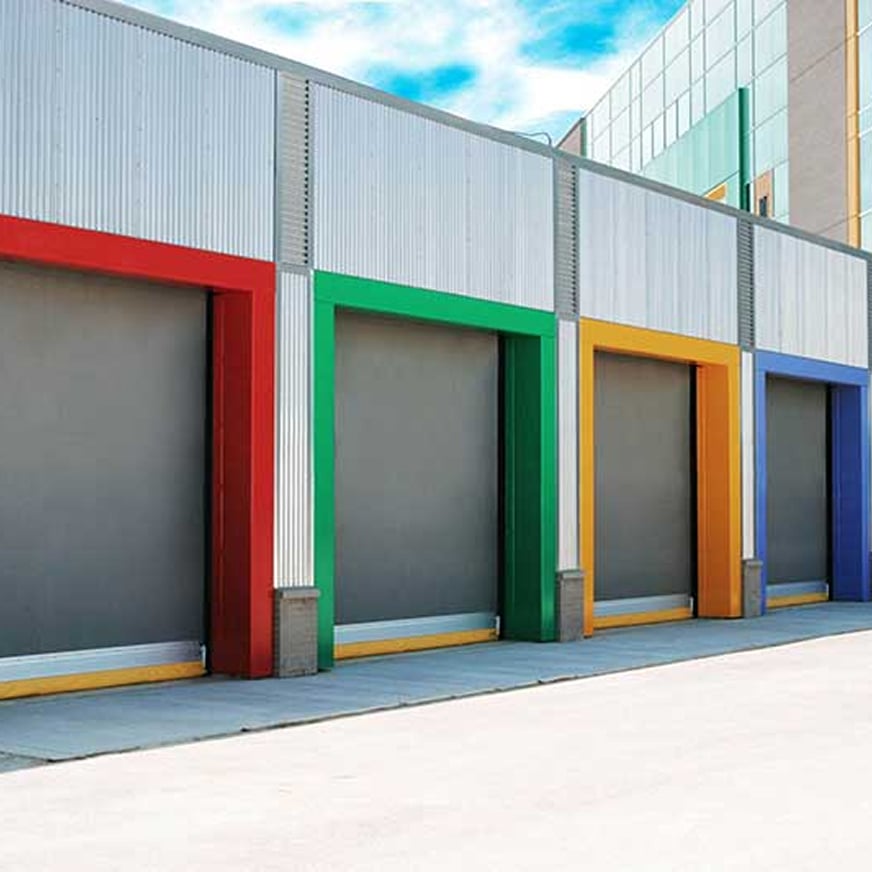

two of Fast-Seal doors with different colours

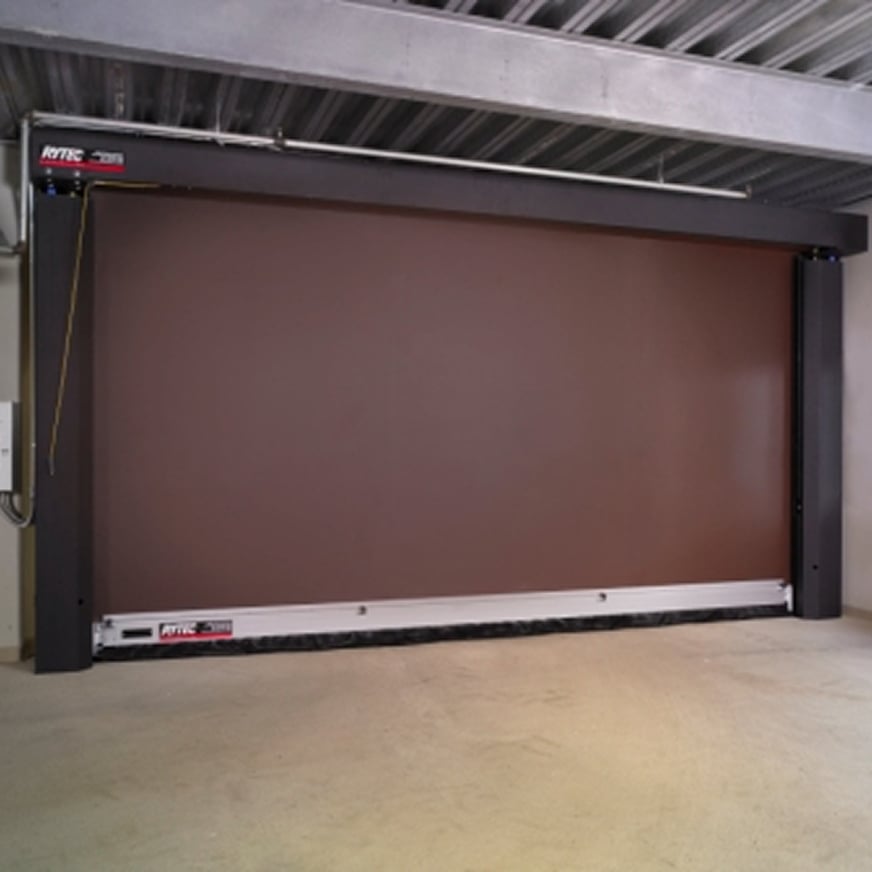

brown Fast-Seal door

Key Specs

Opening speed
Up to 50 inches per second
Max opening size
35' wide or 24' high
Panel material
3-ply Rylon® standard; 2-ply Rylon or screen material optional
Bottom bar
Heavy-duty Break-Away™ end brackets with wireless reversing edge
Vision panel
17" or 24" window(s) or screens, replaceable
Warranty
5-year limited warranty on motor and 3-ply Rylon panel material, plus 2-year limited warranty on mechanical and electrical components

Design Professionals

Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

Why the Fast-Seal®

The Fast-Seal® was the first high-speed industrial door that could take a hit without suffering damage. Combining Break-Away™ bottom bar and patented System II™ counterbalance and tensioning system. Now including the new System 4+™ Controller, powder coated components* and manufacturing process upgrades – the Fast-Seal remains unparalleled in commercial roll-up door performance. It provides the dependability and durability needed for fast-paced, 24/7 operations with minimal downtime or significant maintenance needs.

two Fast-Seal doors

Common Applications

Large openings-card

Large Openings

Heavy-duty components that stand up to the rigors of wide and tall openings.

Explore Application
Transit-card

Transit

Increase energy and productivity efficiency in fast-paced environments.

Explore Application
Parking-card

Parking

Keep vehicles moving and provide zone separation.

Explore Application

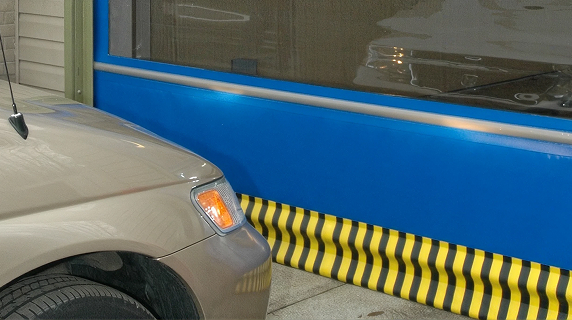

Heavy equipment-card

Heavy-Equipment

Provide fast, reliable access even in the most demanding of applications.

Explore Application

Technical Specs

Full operating, physical, and construction specifications for the Fast-Seal®.
Operating Specifications

Opening speed

Up to 50 inches per second
Drive type

Patented System II® counterbalance and tension system with System 4+™ controller

Wireless communication

Ry-Wi® Wireless System (two-way between control box and bottom bar)

Safety system

Pathwatch® Safety Light System with dual thru-beam photo eyes and sensitivity-adjustable pneumatic reversing edge
Physical Specifications

Max width

35'

Max height

24'

Vision panel

17" or 24" window(s) or screen optional, replaceable

Headroom / sideroom / backroom

  • 14" and 17" side column configurations

  • Left- or right-hand motor placement
Construction Specifications

Panel

3-ply Rylon® standard; 2-ply Rylon or screen material optional
Bottom bar

Extruded aluminum bottom bar with heavy-duty Break-Away™ end brackets and wireless reversing edge
Side columns

Fully bolt-together, reinforced side frames. Standard ‘split lift off’ side column covers and bolted side column base plates for improved stability and access

Side column seals

Full-height vinyl seals

Floor seal

Vinyl loop seal

Optional components

Flat or slanted hood cover, severe duty motor, wind bars

*Standard for models 20'2"W x 20'2"H or smaller

Compare the Fast-Seal®

Full Comparison Page
Fast-Seal doors

Fast-Seal®

Fabric Doors

Opening speed:

50 inches/sec

Vision type:

Square Window(s), Full Width Screen

Panel type:

3-ply Rylon®, 2-ply Rylon®, Ventilated

Max size:

35′ x 24′

Exterior fabric door with heavy-duty panels and Break-Away™ bottom bar for wind loads and large doorways. (600′ sq. max.)

  • Large Openings,
  • Parking,
  • Manufacturing,
  • Warehousing & Distribution,
  • Government & Municipalities,
  • Food & Beverage,
  • Heavy Equipment,
  • Loading Docks,
  • Transit
View details
PredaDoor NXT door

PredaDoor® NXT®

Fabric Doors

Opening speed:

50 inches/sec

Vision type:

Full Width Window Panel

Panel type:

2-ply Rylon®, 3-ply Rylon®, USDA/FDA-compliant, Vinyl, Ventilated

Max size:

16′ x 16′

High-cycle, durable, and versatile door for interior and exterior use across a variety of applications, including warehousing and manufacturing.

  • Manufacturing,
  • Warehousing & Distribution,
  • Parking,
  • Food & Beverage,
  • Cold Storage,
  • Automotive Dealerships,
  • Government & Municipalities,
  • Loading Docks,
  • Transit
View details
Rytec FlexTec door

FlexTec®

Fabric Doors

Opening speed:

100 inches/sec

Vision type:

Square Window(s)

Panel type:

1-ply Rylon®

Max size:

12′ x 12′

Flexible soft-edge door that self-repairs automatically after impact in either direction.

  • Manufacturing,
  • Warehousing & Distribution,
  • Cold Storage,
  • Food & Beverage
View details

Technical Resources

Product sheets, manuals, drawings, and architect resources for the Fast-Seal®.
