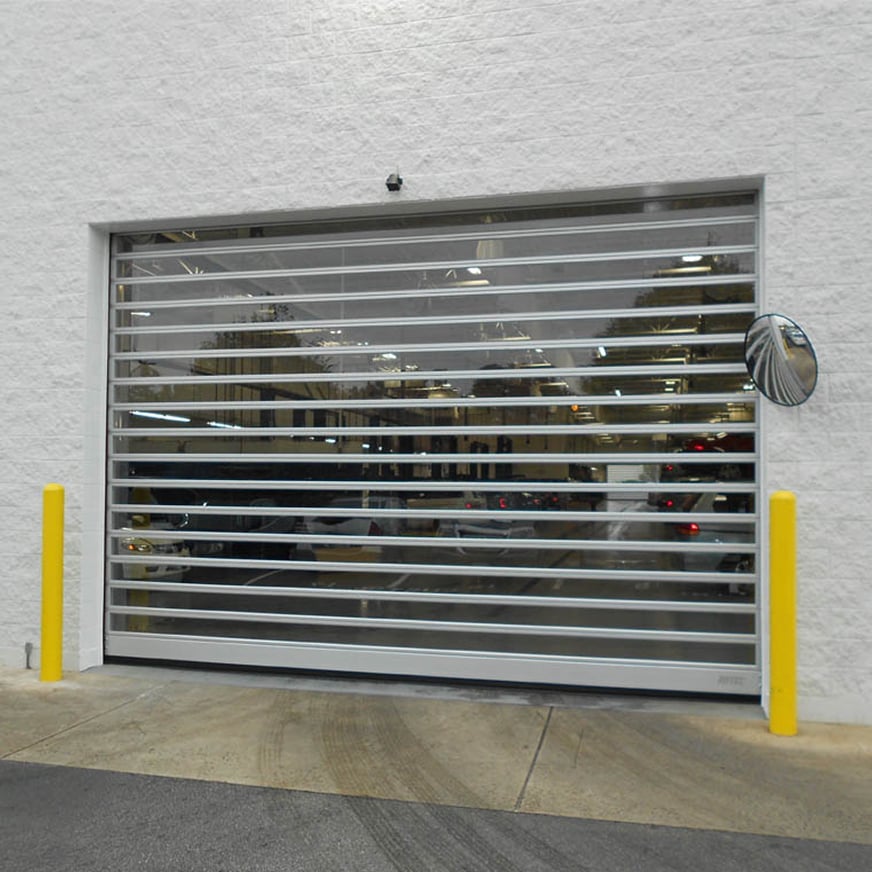

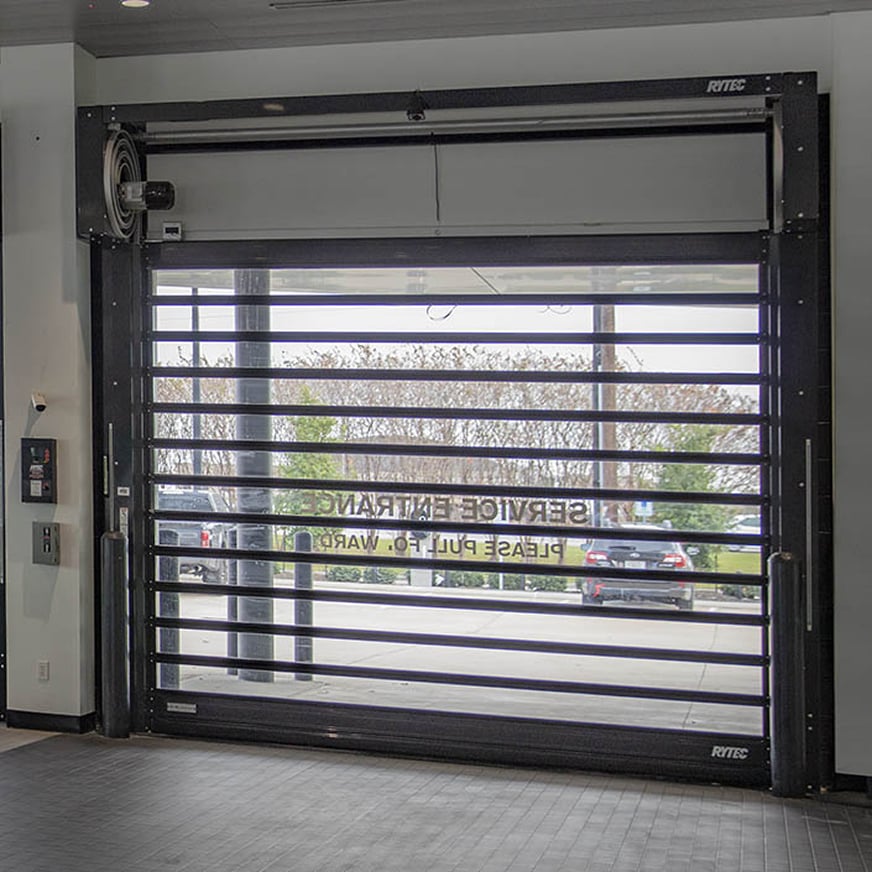

Spiral^® FV^® Full Vision Security Door with High-Speed Operation

Full-width vision slats that still provide the security of a rigid rolling door, the Spiral^® FV^® increases visibility in high-traffic facilities while providing high-tech, cutting-edge aesthetics.

Ultra-quiet opening speed up to 100 inches per second that uses the unique, patented Spiral^® design that creates no metal-to-metal contact, creating less wear and tear on the panel
Shatter-proof and scratch resistant LEXAN™ slats provide excellent visibility and natural light, while maintaining security
Includes SmartSurround^® Advanced Detection & Alert System that combines optical light curtains to monitor traffic and visual safety lights
5-year limited warranty on motor/mechanical components and materials; 2-year limited warranty on electrical components

Request a Quote Compare Models View Product Sheet

Key Specs

Opening speed: Up to 100 inches per second
Max opening size: 20' wide × 19' 8" high
Panel: 9" LEXAN™ polycarbonate windows with clear anodized aluminum slat frames and integral weatherseals between each
Track configuration: Unique Spiral^®, patented design that creates no metal-to-metal contact for less wear and tear
Warranty: 7-year limited warranty against breaks and excessive haze or yellowing on properly maintained LEXAN windows; 5-year limited warranty on motor/mechanical components and materials; 2-year limited warranty on electrical components

Design Professionals

Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

Why the Spiral^® FV^®

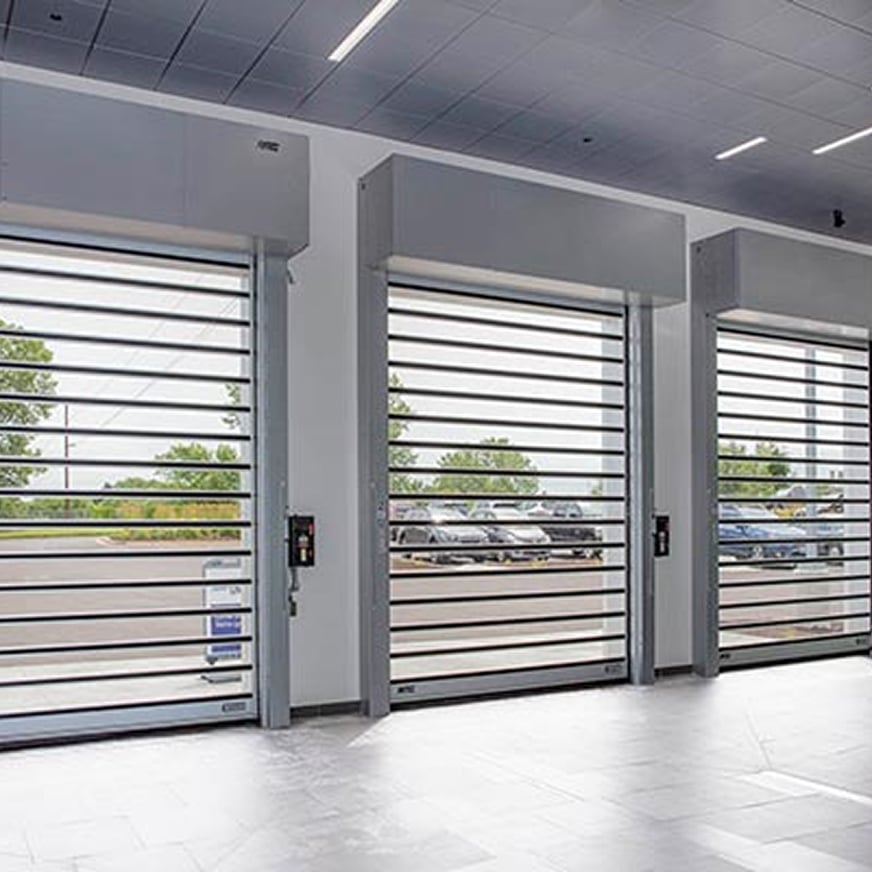

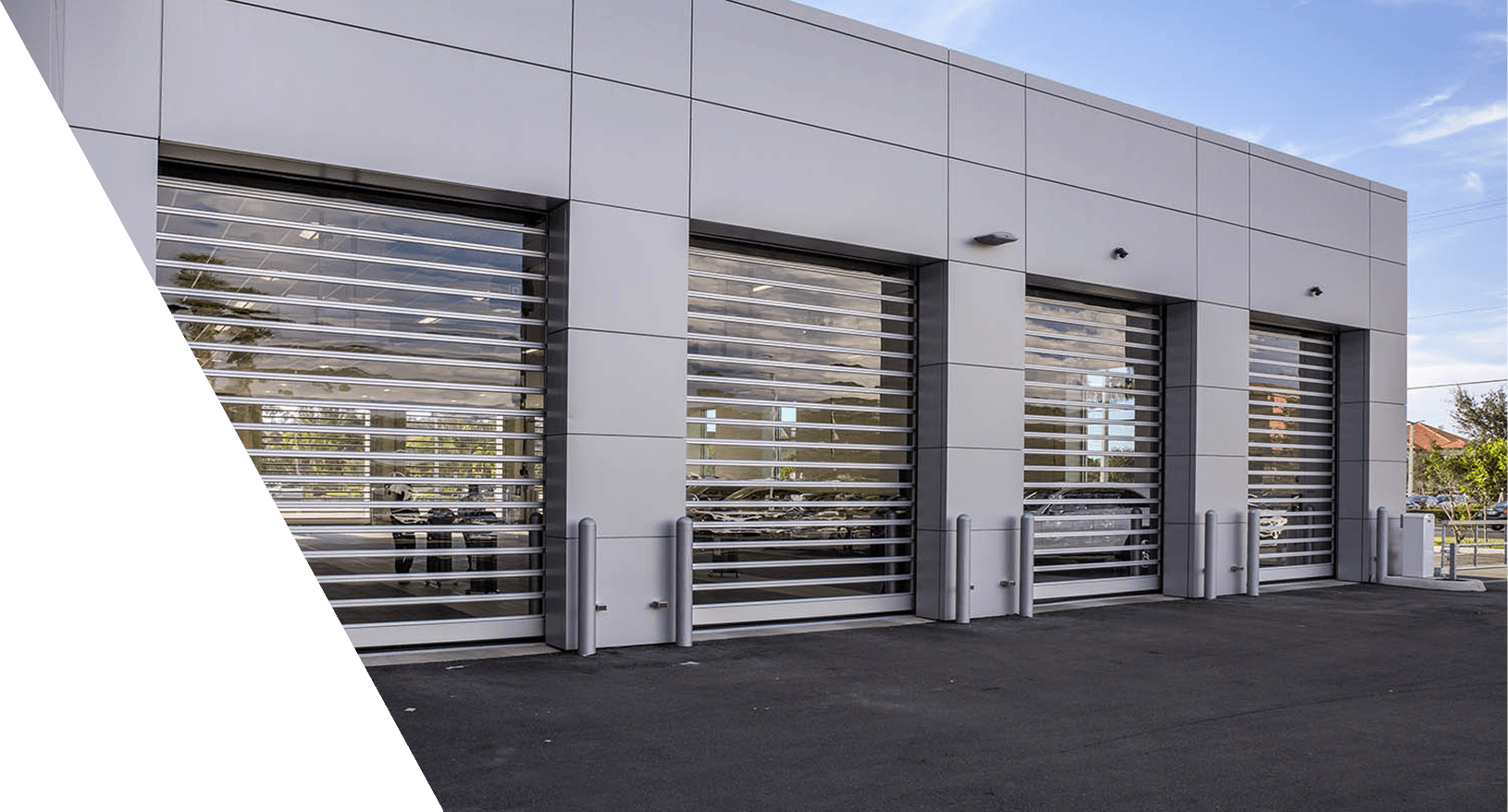

Using ultra-high-speed operation and unique Spiral^® technology, the Spiral^® FV^® door is fast and extremely quiet. Top-to-bottom, full-width window slats provide extra safety and a high-tech look to promote an enviable image of cutting-edge operations.

The Spiral FV door is ideal for modern production and commercial environments, such as automotive dealerships, government, parking, and security applications where a full view overhead security door is desired.

Spiral FV is backed by a 5-year limited warranty on motor/mechanical components and materials, plus a 2-year limited warranty on electrical components. Most Spiral models can also be outfitted with the optional Spiral Pre-Wired Premium Package. This reduces electrical connections and enhances aesthetics among other benefits. Learn more about the Pre-Wired Premium Package.

Common Applications

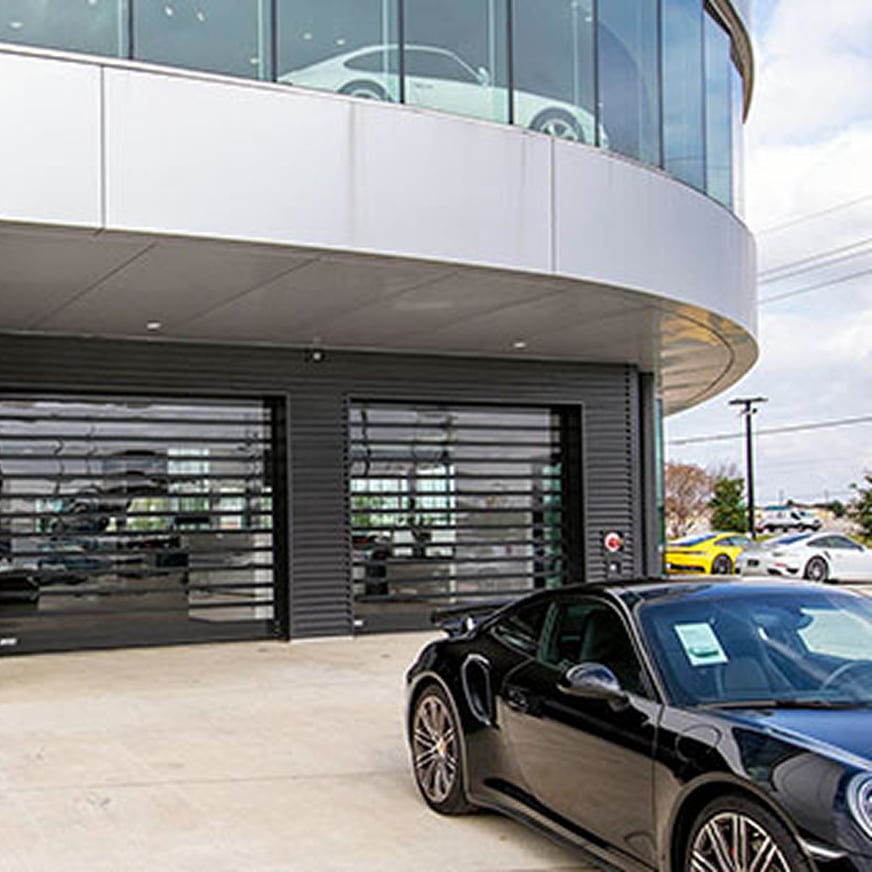

Auto Dealerships

Improve visibility, security and traffic flow in high-cycle areas.

Explore Application

Parking

Improve lighting, security traffic flow and enhance architectural style.

Explore Application

Self-Storage

Fast opening speeds and reliable, durable construction keep facilities secure and protected.

Explore Application

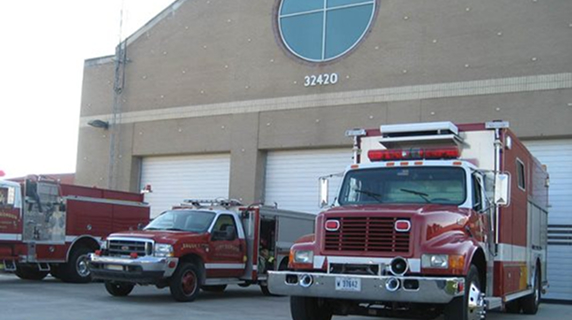

Fire Stations

Fast opening speed with secure visibility when it matters most.

Explore Application

Security

Protect buildings and facilities by helping prohibit unauthorized access.

Explore Application

Government

Ensure effective security and environmental controls are maintained.

Explore Application

Operating Specifications
Opening speed	Up to 100 inches per second
Drive type	Variable AC drive with System 4+™ Controller
Track configuration	Unique Spiral^®, patented design that creates no metal-to-metal contact for less wear and tear
Safety system	SmartSurround^® Advanced Detection and Alert System, Advanced³ Light Curtain Safety System and mechanical brake release lever in case of power failure

Physical Specifications
Max width	20'
Max height	19' 8"
Finish	Durable ‘Rytec Silver’ powder coated with UV-stable and resists rust, corrosion and fingerprints, classic and custom RAL colors available; LEXAN™ windows in clear or translucent bronze or gray tint
Headroom / side clearance	Size dependent

Construction Specifications
Panel	9" LEXAN™ polycarbonate windows with clear anodized aluminum-framed slat frames and integral weatherseals between each
Panel assembly	Patented heavy-duty hinge system allows for removal and replacement of individual slats without disassembling the door panel
Side columns	Durable powder coated steel side columns and head console; extension springs in side column
Optional components	Pre-wired premium package; hood and motor covers, compact BTA4 remove door controller, electric reversing edge with Ry-Wi^®

Compare the Spiral^® FV^®

Full Comparison Page

Spiral^® FV^® (Full Vision)

Spiral^® Rigid Rolling Doors

Opening speed:

100 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Lexan^™ Vision Slat(s)

Max size:

20′ x 18′ 8"

Full vision slats that allow light and visibility without compromising security.

Automotive Dealerships,
Parking,
Emergency Services,
Self Storage,
Government & Municipalities,
Security

View details

Spiral^®

Spiral^® Rigid Rolling Doors

Opening speed:

60 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Solid Slat(s)

Max size:

26′ 3" x 22′ 11"

Quality construction and architectural style when speed, security, aesthetics and reliability are priorities.

Automotive Dealerships,
Parking,
Security,
Government & Municipalities,
Self Storage,
Transit

View details

Spiral^® VP (Direct Drive)

Spiral^® Rigid Rolling Doors

Opening speed:

12 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Solid Slat(s)

Max size:

14′ x 14′

Designs for lower-cycle, lower-speed applications while still aesthetically matching other models and providing same quality construction.

Automotive Dealerships,
Security

View details
