Spiral^® VP the Lower Cycle, Lower Speed Overhead Door

Quality construction and aesthetics with lower speed operation for low-cycle environments. The Spiral^® VP allows for consistent aesthetics when bundling with high-speed models for different areas of a facility or used individually for securing transitional low-cycle applications.

Choose from direct drive or balanced operation paired with the same quality and durable components of the standard Spiral^® high-speed model.
Double walled aluminum, insulated, vision or ventilated slats with integral rubber weatherseals and heavy-duty hinge system provide solid security
Standard, high or vertical lift track options available
20-year extended warranty on rollers, hinges and door track; 5-year limited warranty on motor/mechanical components; 2-year limited warranty on electrical components

Request a Quote Compare Models View Product Sheet

Key Specs

Opening speed: Up to 12 inches per second (direct drive); Up to 8 inches per second (balanced)
Max opening size: 14' wide × 14' high
Panel: Double walled aluminum, insulated, vision or ventilated slats with integral rubber weatherseals and heavy-duty hinge system provide solid security
Track configuration: Standard, high or vertical lift track options available
Warranty: 20-year extended warranty on rollers, hinges and door track; 5-year limited warranty on motor/mechanical components; 2-year limited warranty on electrical components

Design Professionals

Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

Why the Spiral^® VP

Featuring the stylish design and structural integrity of the Spiral^® high-performance door series, the Spiral^® VP door offers a new combination of quality, value, and performance for lower speed, lower cycle applications.

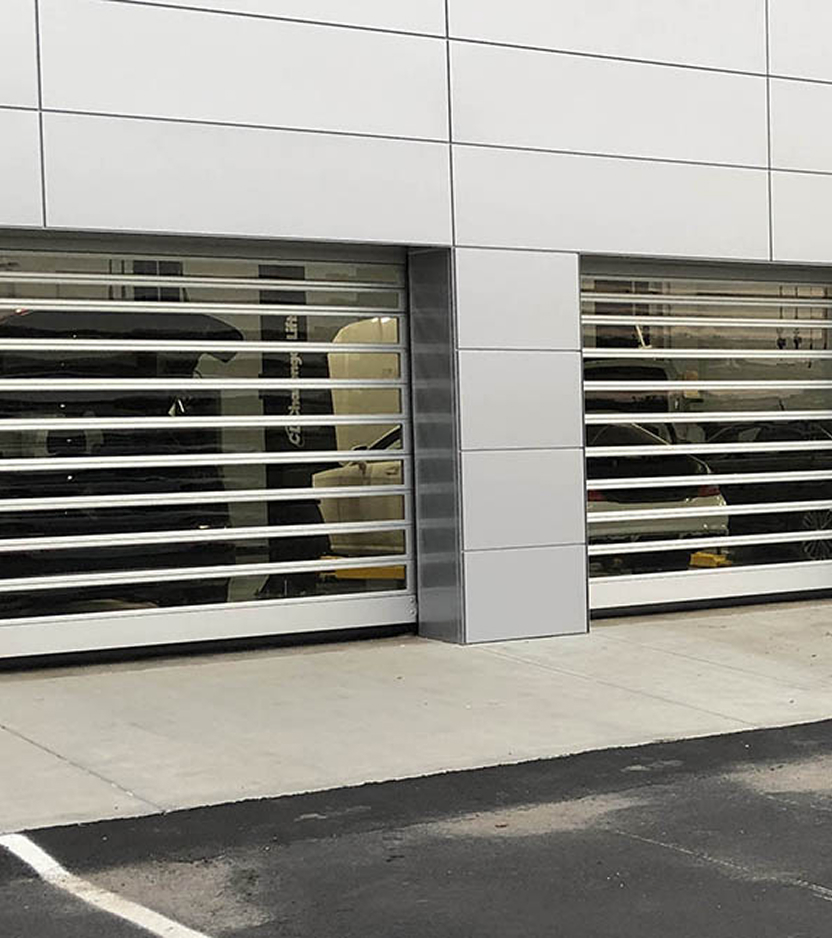

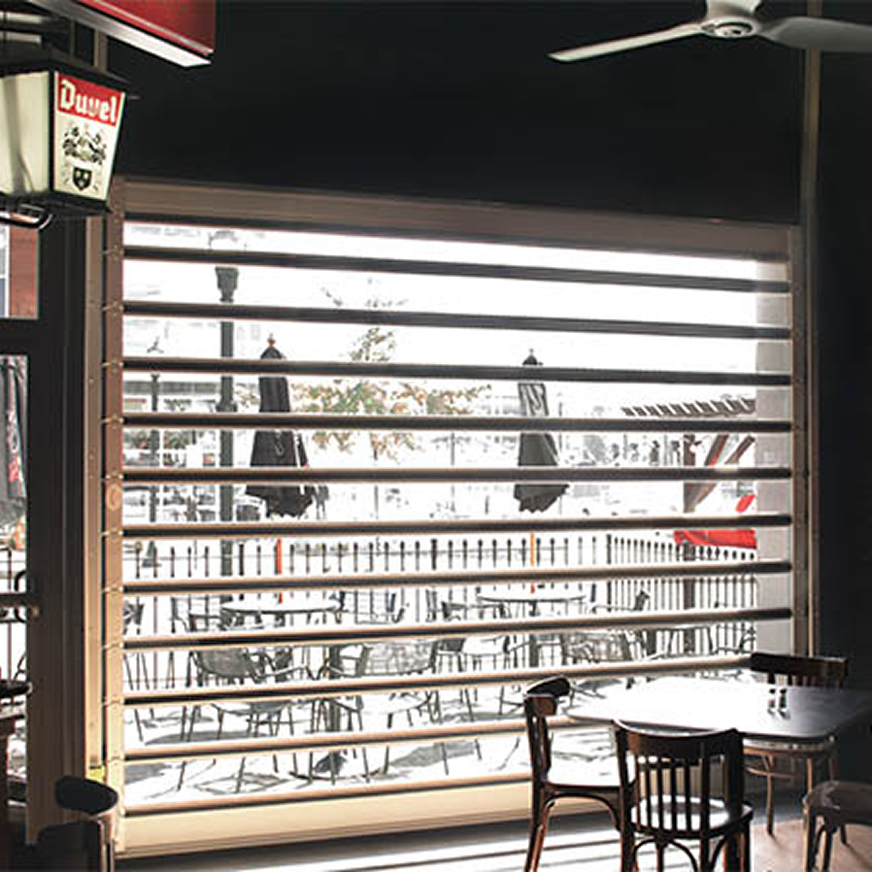

Now, auto dealerships can maintain a consistent aesthetic look – from front to back – without sacrificing high performance. In addition, when the Spiral VP is used as a restaurant overhead door, it enhances ambiance in transitional indoor-outdoor spaces and other hospitality-focused settings.

The Spiral VP door integrates proven Spiral overhead door components and a small footprint that allows the door to be installed almost anywhere a conventional overhead door fits – without visible attachment hardware. With sleek styling, quiet functioning, and a compact profile, a consistent 360-degree customer experience is now a reality.

For commercial environments with light to moderate traffic, the lower speed/lower cycle Spiral VP door offers aesthetic quality, durable performance, and reliable security.

Common Applications

Auto Dealerships

Improve security, energy efficiency and traffic flow in high-cycle areas.

Explore Application

Security

Protect buildings and facilities by helping prohibit unauthorized access.

Explore Application

Operating Specifications
Opening speed	Up to 12 inches per second (direct drive); Up to 8 inches per second (balanced)
Drive type	Direct drive or balanced operation
Track configuration	Standard, high or vertical lift track options available
Safety system	Advanced³ Light Curtain Safety System (direct drive); thru-beam photo eyes (balanced)

Physical Specifications
Max width	14'
Max height	14'
Finish	Durable ‘Rytec Silver’ powder coated with UV-stable and resists rust, corrosion and fingerprints, classic and custom RAL colors available
Headroom / side clearance	Size dependent

Construction Specifications
Panel	Double walled aluminum, insulated, vision or ventilated slats with integral rubber weatherseals and heavy-duty hinge system provide solid security
Panel assembly	Patented heavy-duty hinge system, polyurethane rollers with sealed roller bearings, no visible mounting hardware
Side columns	Durable powder coated steel side columns
Optional components	Chain hoist operator (direct drive); heavy duty operator, chain fall, extended-life springs (balanced)

Compare the Spiral^® VP

Full Comparison Page

Spiral^® VP (Direct Drive)

Spiral^® Rigid Rolling Doors

Opening speed:

12 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Solid Slat(s)

Max size:

14′ x 14′

Designs for lower-cycle, lower-speed applications while still aesthetically matching other models and providing same quality construction.

Automotive Dealerships,
Security

View details

Spiral^®

Spiral^® Rigid Rolling Doors

Opening speed:

60 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Solid Slat(s)

Max size:

26′ 3" x 22′ 11"

Quality construction and architectural style when speed, security, aesthetics and reliability are priorities.

Automotive Dealerships,
Parking,
Security,
Government & Municipalities,
Self Storage,
Transit

View details

Spiral^® FV^® (Full Vision)

Spiral^® Rigid Rolling Doors

Opening speed:

100 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Lexan^™ Vision Slat(s)

Max size:

20′ x 18′ 8"

Full vision slats that allow light and visibility without compromising security.

Automotive Dealerships,
Parking,
Emergency Services,
Self Storage,
Government & Municipalities,
Security

View details
