PowerTec® MR Industrial Rubber Door for Low Cycle Applications

When door durability is a must to withstand harsh environments but not opened and closed frequently, the rugged PowerTec® MR industrial rubber door offers manual operation with minimal maintenance.

  • Thick ¼-inch SBR rubber panel to withstand harsh environments and better resist punctures and tears

  • 3.5-inch low profile side columns require minimal installation room to fit a variety of application needs

  • Breakaway tabs allow the bottom bar to release on impact in either direction and easily be reset

  • 2-year limited warranty on motor, mechanical and electrical components; limited lifetime warranty on SBR panel material
Request a Quote Compare Models View Product Sheet

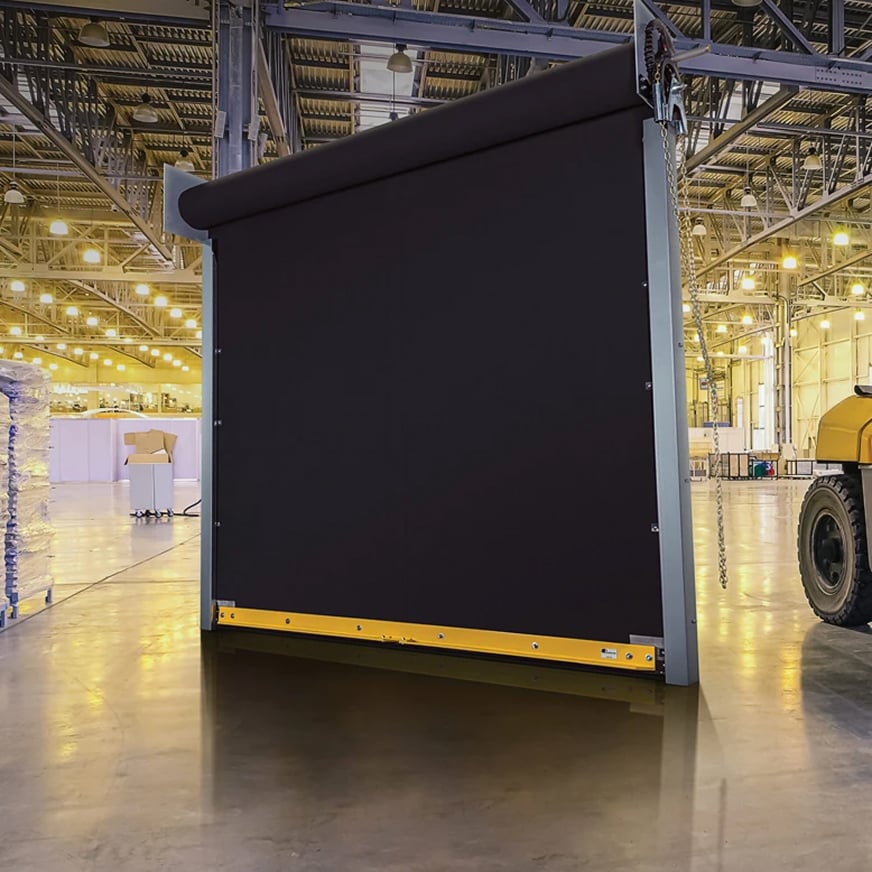

PowerTec MR door on display

Key Specs

Opening speed
Manual drive system with chain hoist
Max opening size
18' wide × 18' high
Panel material
¼-inch thick reinforced SBR rubber panel with 2000 psi tensile strength that is puncture and rip-resistant
Side column
3.5-inch powder coated guides for tight spaces
Warranty
2-year limited warranty on motor, mechanical and electrical components; limited lifetime warranty on SBR panel material

Design Professionals

Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

Why the PowerTec® MR

Manually operated PowerTec® MR industrial rubber doors are built with durable materials to withstand harsh environments in low cycle applications. In addition, the impactable design reduces maintenance and repair costs and decreases downtime.

When high-speed and fast operation is not required but dependability is, these doors with heavy-duty SBR rubber panels are a perfect fit.

Ready when you are, these doors can stand up to changing weather conditions of exterior openings or to securely separate interior areas.

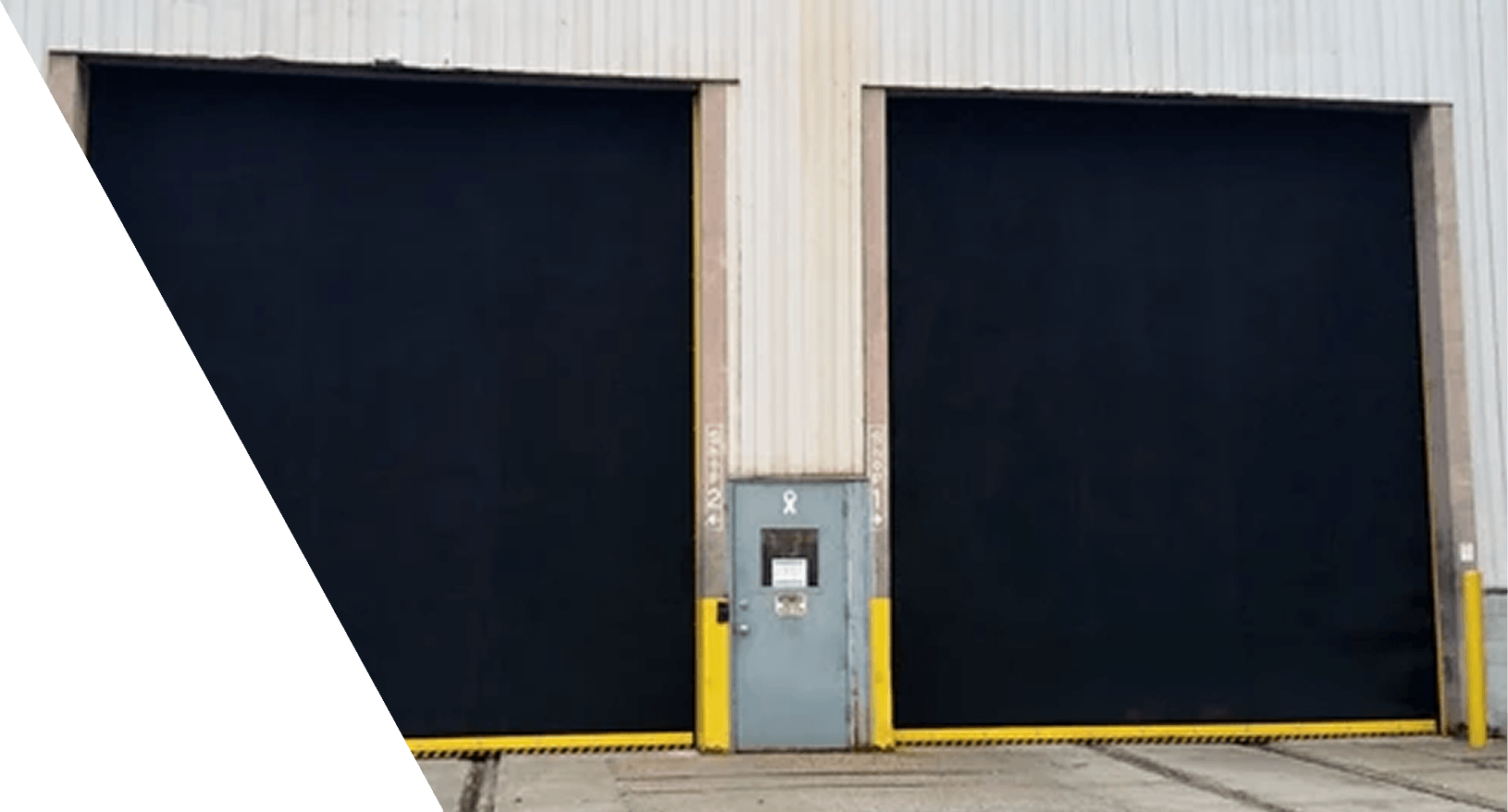

two PowerTec MR doors

Common Applications

Manufacturing-card

Manufacturing

Reduce energy costs and separate different areas within facilities and loading zones.

Explore Application
Warehousing-card

Warehousing & Distribution

Provide area separation and durable exterior dock access for freight operations.

Explore Application
Loading docks-card

Loading Docks

Increase reliability and sealing capabilities in a variety of loading dock settings.

Explore Application

Technical Specs

Full operating, physical, and construction specifications for the PowerTec® MR.

Operating Specifications

Opening speed

Manual drive system with chain hoist
Safety system

Breakaway bottom bar
Physical Specifications

Max width

18'

Max height

18'

Finish

Highly visible, powder-coated safety yellow components

Headroom / side clearance

  • 20'-22' (22'-24' with hood) headroom above lintel

  • 18' max head projection

  • 6' side column projection

  • 11' side clearance, both sides

  • Chain hoist/motor placement on right or left side
Construction Specifications

Panel

¼-inch thick reinforced SBR rubber panel with 2000 psi tensile strength that is puncture and rip-resistant

Bottom bar

Breakaway tabs allow the bottom bar to release in either direction if impacted and easily be reset in seconds

Floor seal

Rubber loop seal on bottom bar

Optional components

EPDM panel material, hood and motor cover, 2' high visibility strip and 14" or 20" vision windows

Compare the PowerTec® MR

Full Comparison Page

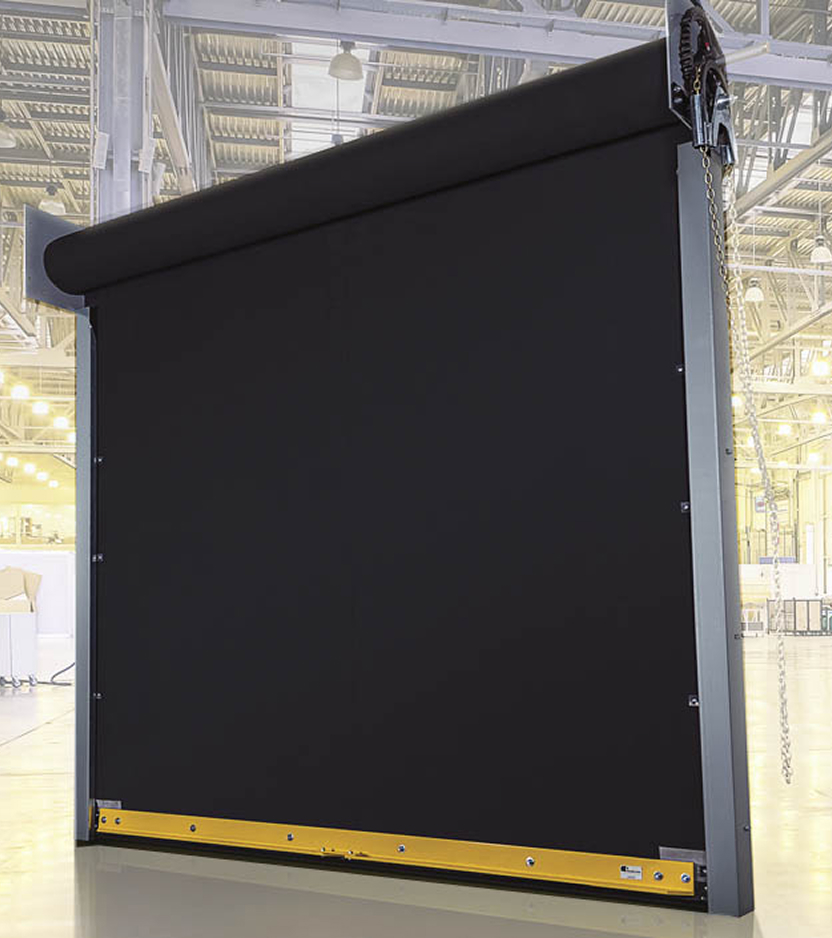

PowerTec MR door

PowerTec® MR

Rubber Doors

Vision type:

Square Window(s)

Panel type:

SBR rubber

Max size:

18′ x 18′

Manually operated for low-cycle environments, built with durable materials.

  • Manufacturing,
  • Warehousing & Distribution,
  • Loading Docks
View details
PowerTec SD door

PowerTec® SD

Rubber Doors

Opening speed:

18 inches/sec

Vision type:

Square Window(s)

Panel type:

SBR rubber

Max size:

12′ x 12′

For dock applications that need tight seals, durability and lasting reliability.

  • Manufacturing,
  • Warehousing & Distribution,
  • Loading Docks
View details
Bantam_motorized

Bantam® (Motorized)

Fabric Doors

Opening speed:

12 inches/sec

Vision type:

Full Width Window Panel, Square Window(s)

Panel type:

Vinyl, 2-ply Rylon®, 3-ply Rylon®, USDA/FDA-compliant, Ventilated

Max size:

15′ x 14′

Interior and exterior, low-speed fabric door with Break-Away capabilities for low traffic environments.

  • Warehousing & Distribution,
  • Manufacturing,
  • Loading Docks,
  • Ventilation
View details

Technical Resources

Product sheets, manuals, drawings, and architect resources for the PowerTec® MR.
