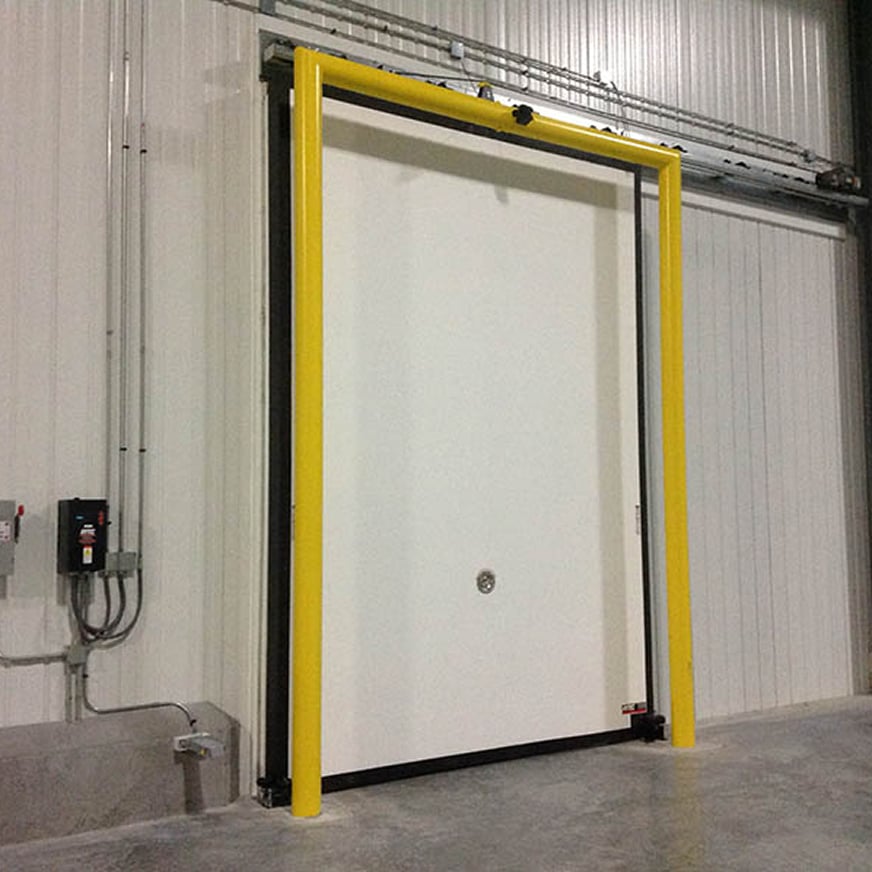

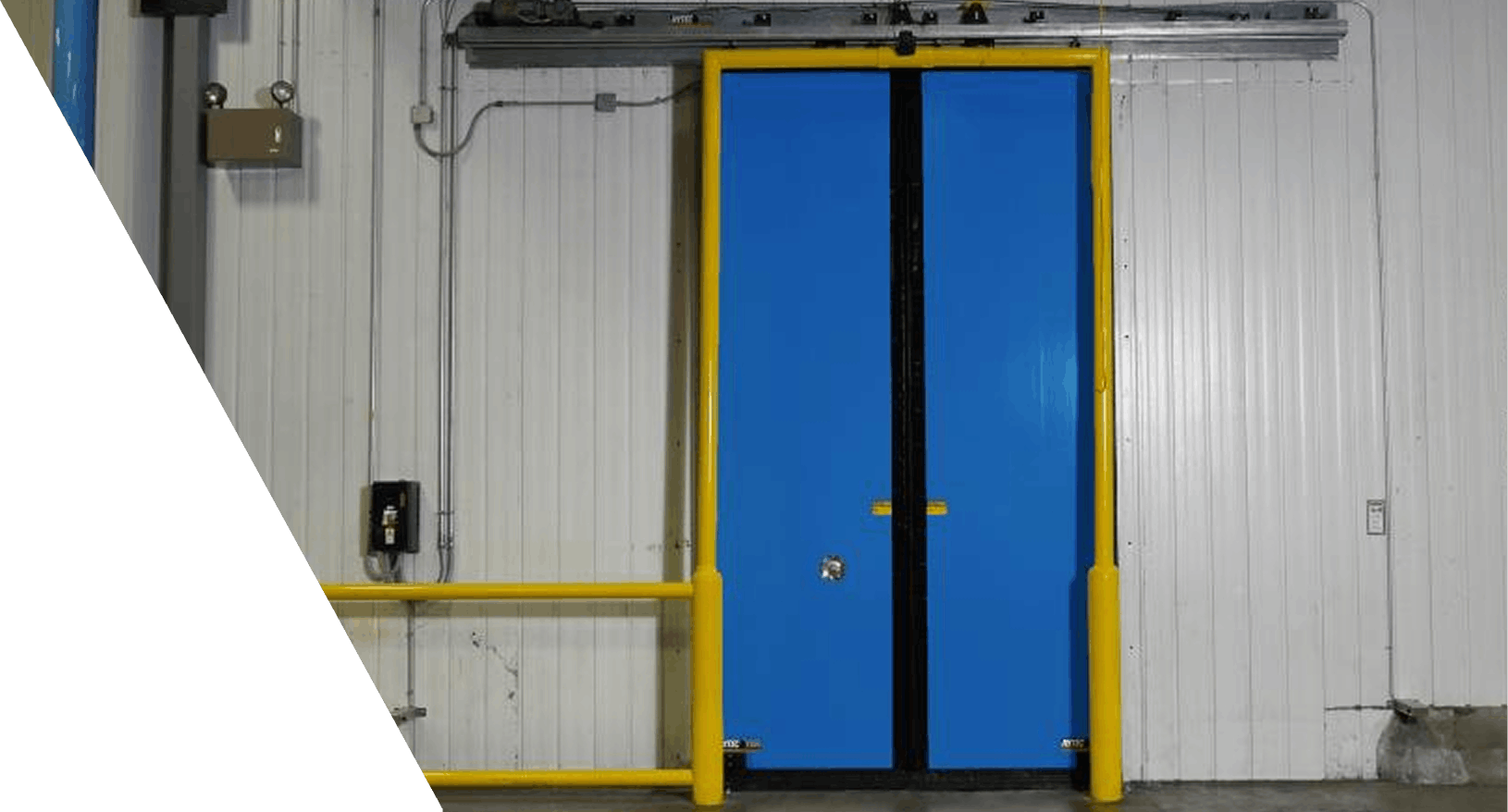

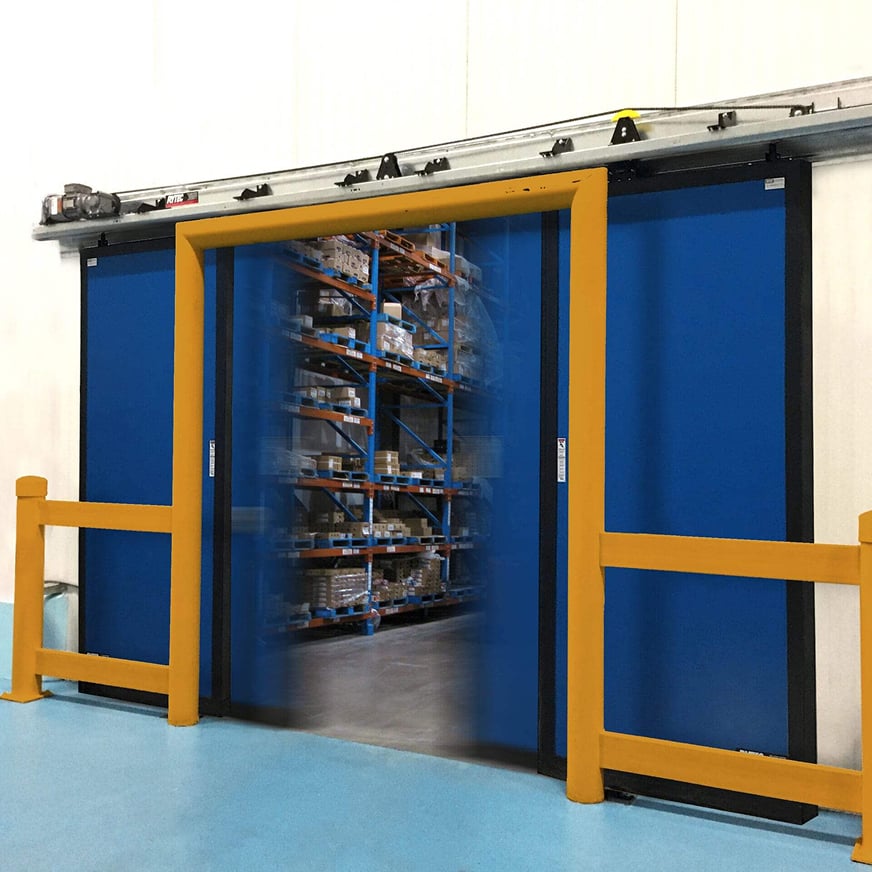

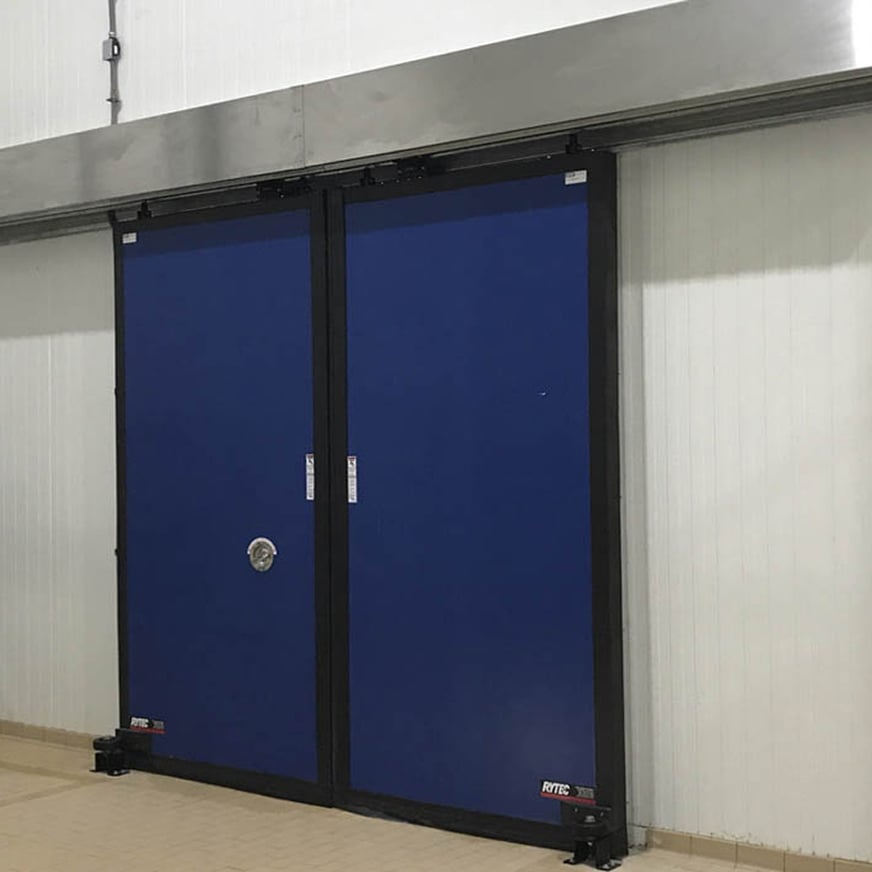

Turbo-Slide^® Insulated Sliding Door for Cold Storage Applications

Featuring highly insulated sliding panels for advanced thermal and energy efficiency, the Turbo-Slide^® insulated sliding door offers instant vertical access and can withstand the rigorous demands of fast-paced cold storage facilities.

Opens at up to 125 inches per second and can be a single or bi-parting configuration
State-of-the-art insulated foam panels are up to 50% lighter than conventional sliding door panels with R-values from R-17 (standard) to R-40
Flexible rigid panel and innovative design allow door to withstand accidental impact with easy realignment
5-year limited warranty on standard door panel material, plus a 1-million cycle/5-year limited warranty on mechanical components and System 4+™ Door Controller

Request a Quote Compare Models View Product Sheet

Key Specs

Opening speed: Up to 125 inches per second
Max opening size: 10' wide × 24' high (single slide), 16' wide x 24' high (bi-parting)
Panel material: Thick, rigid panel design with EVA foam core material and FDA approved thermoplastic outer shell
Perimeter Seal: Full perimeter seal secures all edges; bottom sweep consists of adjustable rubber with hook and loop closure to ensure thermal envelope is secure
Warranty: 5-year limited warranty on standard door panel material, plus a 1-million cycle/5-year limited warranty on mechanical components and System 4+™ Door Controller

Design Professionals

Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

Why the Turbo-Slide^®

Based on a superior design, the Turbo-Slide^® high-performance insulated sliding door provides advanced thermal features to endure the rigorous demands of cold storage environments. With R-values ranging from R-17 up to R-40, the Turbo-Slide freezer warehouse sliding door offers excellent energy efficiency along with an innovative design that enables the door to withstand accidental impact with easy realignment.

The Turbo-Slide is ideal for cold storage and food & beverage operations, where increased productivity and energy efficiency are paramount.

Common Applications

Cold Storage

Provide quick access throughout fast-paced cold storage facilities.

Explore Application

Food & Beverage

Maintain temperature between different conditioned zones in processing and warehousing.

Explore Application

Coolers

Quick opening speeds and tight seals for temperature control.

Explore Application

Freezers

High-speed & perimeter seals minimize the air exchange between areas.

Explore Application

Operating Specifications
Opening speed	Up to 125 inches per second
Drive type	Power drive system with electric brake and with System 4+™ Controller
Safety system	Dual thru-beam photo eyes and manual release handle in case of power outage

Physical Specifications
Max width	10' (single slide); 16' (bi-parting)
Max height	24' (single slide and bi-parting)
Headroom / side clearance	21" headroom above lintel All other clearances are door size dependent Left- or right-hand motor placement

Construction Specifications
Panel	Thick, rigid panel design with EVA foam core material and FDA approved thermoplastic outer shell
Track Assembly	Heavy-duty galvanized steel, heated gasket system to help prevent icing around opening
Bottom edge	Multi-layered PVC-coated polyester fabric bottom sweep
Perimeter Seal	Full perimeter seal secures all edges; bottom sweep consists of adjustable rubber with hook and loop closure to ensure thermal envelope is secure
Optional components	No Velcro^® seals, stainless steel hood and motor cover, perimeter skirt, hook & loop closure or sealed

Compare the Turbo-Slide^®

Full Comparison Page

Turbo-Slide^® (Single Slide)

Sliding Doors

Opening speed:

125 inches/sec

Panel type:

Insulated

Max size:

10′ x 24′

Interior insulated single panel sliding door for cold storage that provides instant full access of the doorway and self-repairs if impacted.

Cold Storage,
Food & Beverage,
Coolers,
Freezers

View details

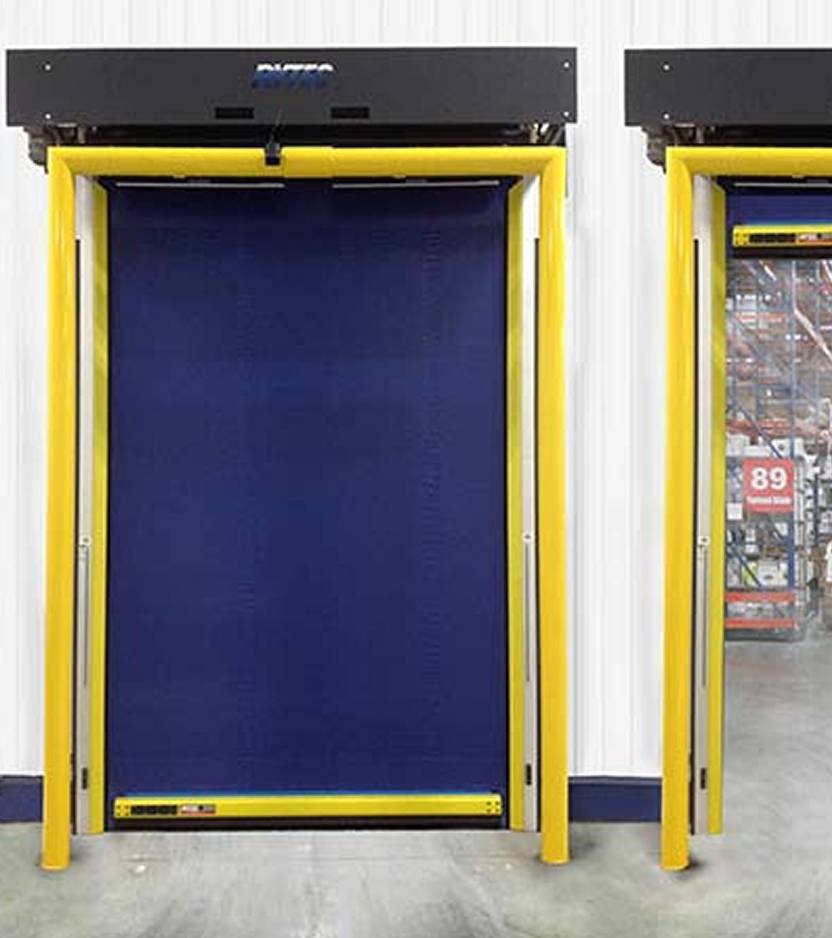

Turbo-Seal^® Insulated

Fabric Doors

Opening speed:

101 inches/sec

Panel type:

Insulated

Max size:

12′ x 21′

Interior, insulated fabric curtain for cold storage operations where both roll-up speed and thermal performance matter.

Cold Storage,
Food & Beverage,
Coolers,
Freezers

View details

PredaCool^™

Fabric Doors

Opening speed:

75 inches/sec

Vision type:

Square Window(s)

Panel type:

3-ply Rylon^®

Max size:

12′ x 16′

Interior cold room door designed for high-traffic cooler and freezer areas where speed matters more than insulation value.

Cold Storage,
Coolers,
Freezers,
Food & Beverage

View details
