Spiral® LP Low-Profile High-Performance Door for Limited Space Applications

Provide secure, reliable operation in both new builds and retrofitting in environments that have limited space with the Spiral® LP (Low Profile) door.

  • Compared to the regular Spiral® door model, the Spiral® LP has a standard track design but engineered for low head clearance applications that allow it to fit with as little as 11 inches of headroom

  • Opens at up to 36 inches per second using a compact, variable speed motor

  • Includes SmartSurround® Advanced Detection & Alert System that combines optical light curtains to monitor traffic and visual safety lights

  • 5-year limited warranty on motor/mechanical components and materials; 2-year limited warranty on electrical components

Request a Quote Compare Models View Product Sheet

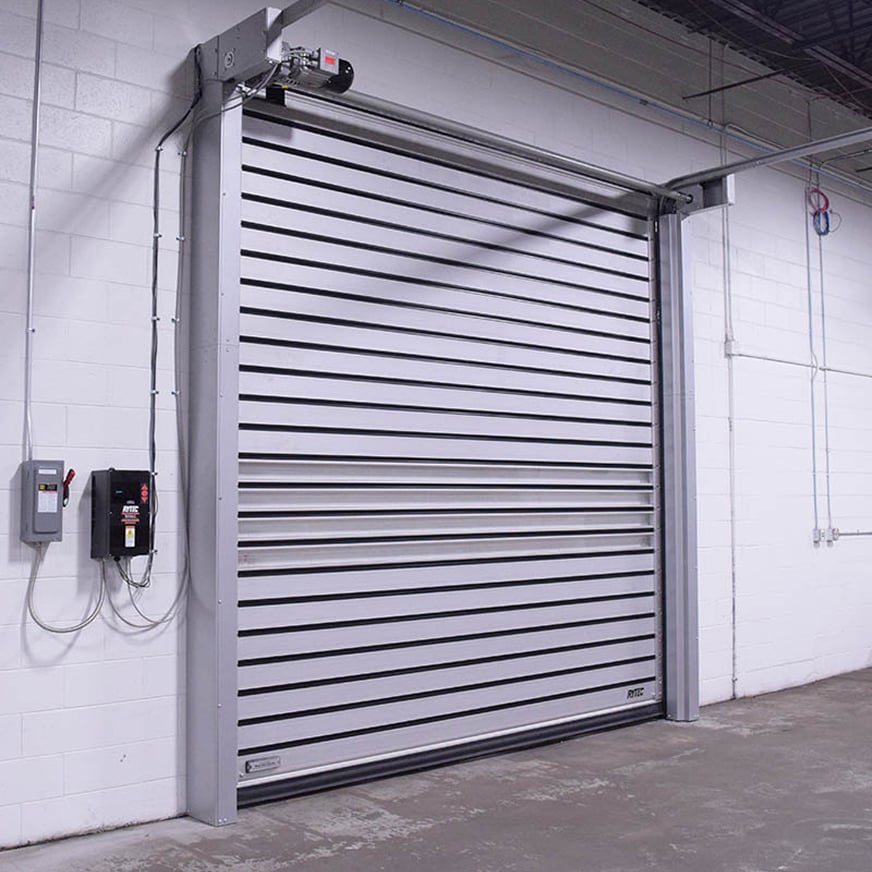

Spiral LP door at angle

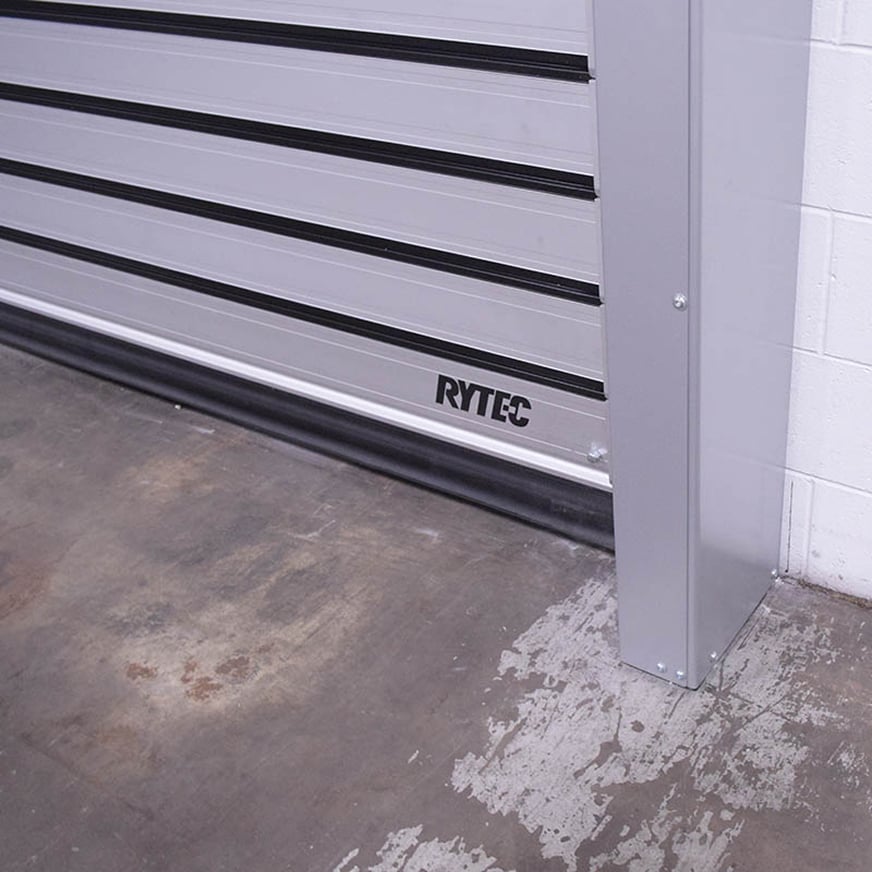

Spiral LP door close-up

Key Specs

Opening speed
Up to 36 inches per second
Max opening size
20' wide × 12' high (standard; 18' wide x 12' high (LP-FV & LP-VT)
Panel
6" double-walled, clear anodized aluminum slats with integral weatherseals between each
Track configuration
Standard low headroom track design for applications with as little as 11 inches of headroom clearance
Warranty
5-year limited warranty on motor/mechanical components and materials; 2-year limited warranty on electrical components

Design Professionals

Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

Why the Spiral® LP

Combining a low-profile side column design with a low headroom configuration, the Spiral® LP (Low Profile) door offers high performance and speed for high-traffic situations with limited space. This reduced profile can benefit many parking garages and other commercial structures.

The Spiral LP low-profile high-performance door has sleek, crisp lines. It also features rigid, aluminum slats for strength, eliminating the need for a second security door. With a reduced profile allowing it to fit in tighter spaces, it is the ideal low-profile parking door. It is also equally optimal for security, government, parking, and automotive dealership installations.

Models designed with 9-inch tall full-vision (Spiral® LP-FV) or full-ventilation (Spiral® LP-VT) slats for specific applications or environments are also available.

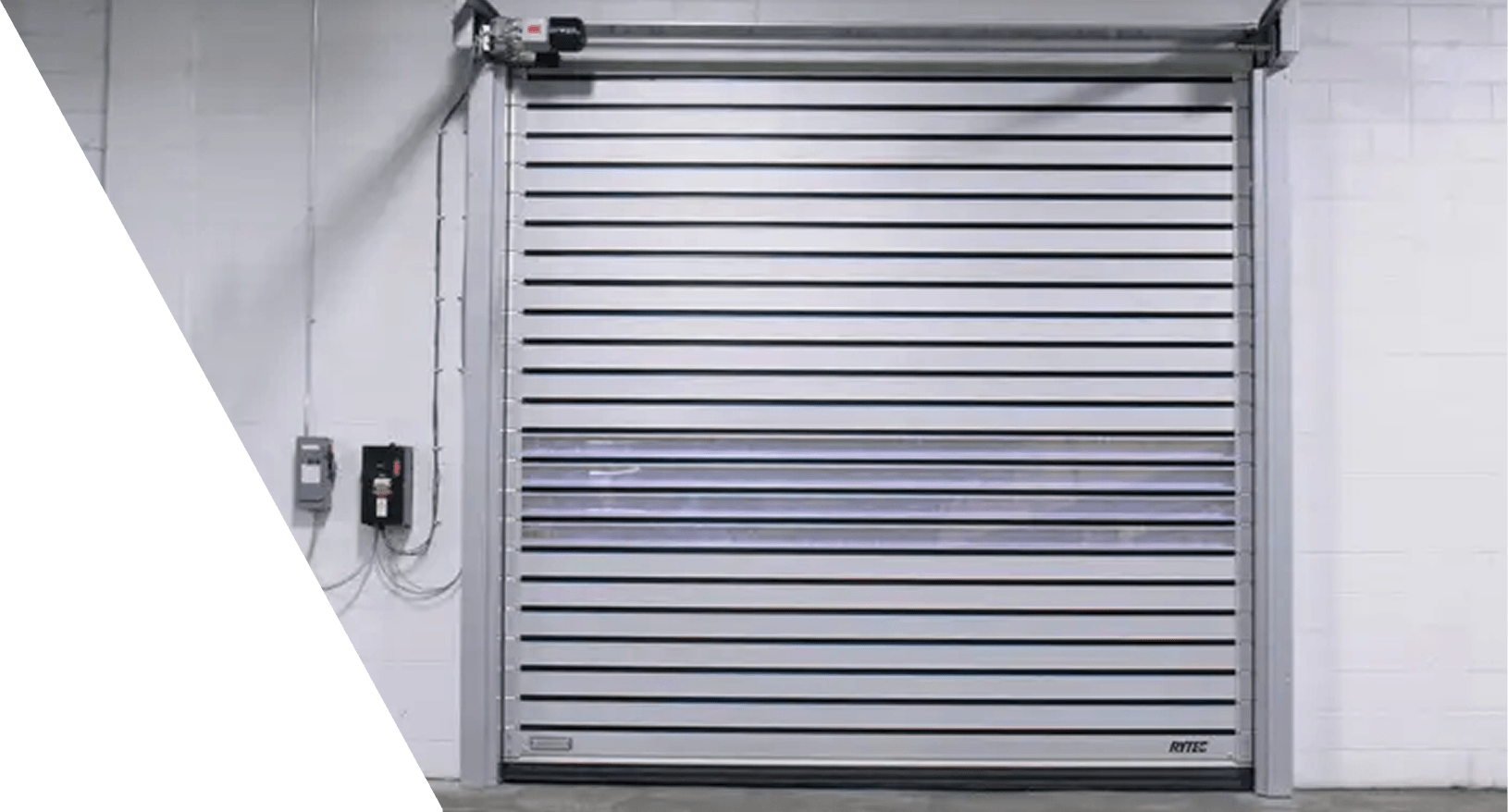

Spiral LP door wide shot

Common Applications

Automotive Dealerships-card

Auto Dealerships

Improve security, energy efficiency and traffic flow in high-cycle areas.

Explore Application
Parking-card

Parking

Improve security and traffic flow and enhance architectural style.

Explore Application
Security-card

Security

Protect buildings and facilities by helping prohibit unauthorized access.

Explore Application
Government-card

Government

Ensure effective security and environmental controls are maintained.

Explore Application
Self-storage-card

Self-Storage

Fast opening speeds and reliable, durable construction keep facilities secure and protected

Explore Application

Technical Specs

Full operating, physical, and construction specifications for the Spiral® LP.

Operating Specifications

Opening speed

Up to 36 inches per second
Drive type

Variable AC drive with System 4+™ controller

Track configuration

Standard low headroom track design for applications with as little as 11 inches of headroom clearance

Safety system

SmartSurround® Advanced Detection and Alert System, Advanced3 Light Curtain Safety System and mechanical brake release lever in case of power failure
Physical Specifications

Max width

20' (standard) 18' (LH-FV & LH-VT)

Max height

12'

Finish

Durable ‘Rytec Silver’ powder coated with UV-stable and resists rust, corrosion and fingerprints, classic and custom RAL colors available

Headroom / side clearance

Size dependent
Construction Specifications

Panel

6" double-walled, clear anodized aluminum slats with integral weatherseals between each

Panel assembly

Patented heavy-duty hinge system allows for removal and replacement of individual salts without disassembling the door panel

Side columns

Low profile side columns requiring only 6.5 inches of side clearances; durable powder coated steel; extension springs in side column

Optional components

Insulated, ventilated or vision slats; compact BTA4 remove door controller, electric reversing edge with Ry-Wi®

Compare the Spiral® LP

Full Comparison Page
Spiral LP door

Spiral® LP (Low Profile)

Spiral® Rigid Rolling Doors

Opening speed:

36 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Solid Slat(s)

Max size:

20′ x 12′

Configured to fit in limited space applications with a low headroom and low-profile side column design.

  • Automotive Dealerships,
  • Parking,
  • Government & Municipalities,
  • Security
View details
Spiral door

Spiral®

Spiral® Rigid Rolling Doors

Opening speed:

60 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Solid Slat(s)

Max size:

26′ 3" x 22′ 11"

Quality construction and architectural style when speed, security, aesthetics and reliability are priorities.

  • Automotive Dealerships,
  • Parking,
  • Security,
  • Government & Municipalities,
  • Self Storage,
  • Transit
View details
Spiral LH door

Spiral® LH® (Low Headroom)

Spiral® Rigid Rolling Doors

Opening speed:

60 inches/sec

Vision type:

Full Width Lexan Slat(s)

Panel type:

Solid Slat(s)

Max size:

20′ x 16′ 4"

Low-headroom track configuration for installation with as little as 11-inch clearance, built on the same Spiral model platform.

  • Parking,
  • Automotive Dealerships,
  • Government & Municipalities,
  • Security,
  • Self Storage,
  • Transit
View details

Technical Resources

Product sheets, manuals, drawings, and architect resources for the Spiral® LP.
