Advanced Composites for Advanced Form and Function

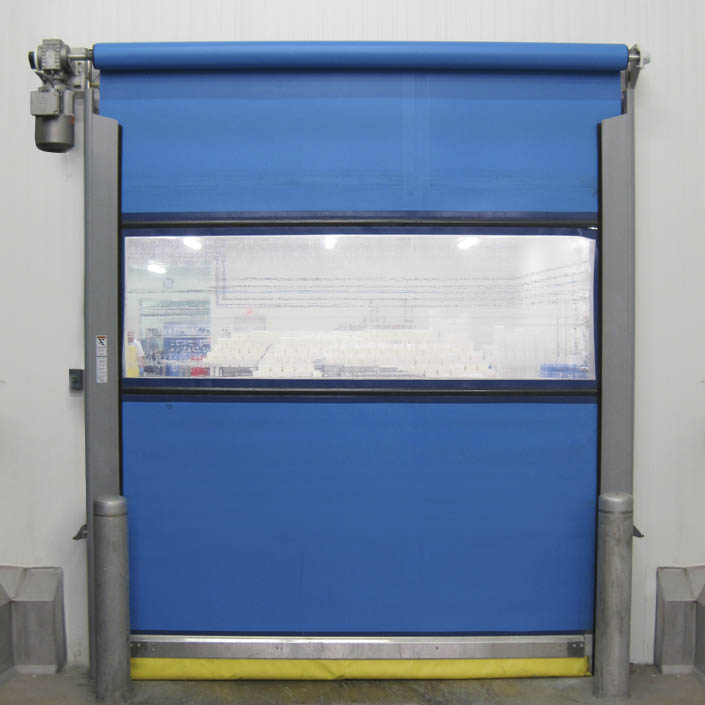

Plexline® High-Performance Door
Combining the high performance of composite materials with the benefits of Rytec high-speed doors, the Plexline is designed for high-traffic, interior applications where durability, speed, and visual impact are paramount.
The fiberglass composite materials offer strength, long life, and the durability of stainless steel, at a remarkably low price.

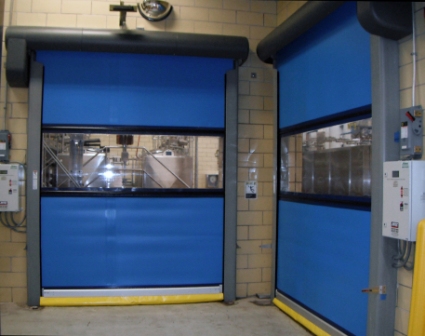

Ideal for cold storage, food and beverage, manufacturing and warehousing applications, the Plexline can be built up to 16′ wide x 15′ high.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
AC drive allows for soft acceleration and deceleration, reducing wear, increasing door longevity and providing quiet operation

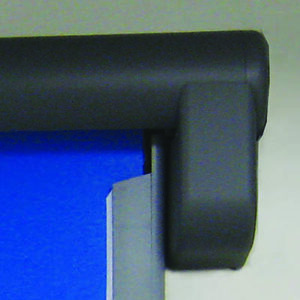

Optional composite or aluminum hood and motor cover
Full width, replaceable vision panel with integral aluminum wind ribs

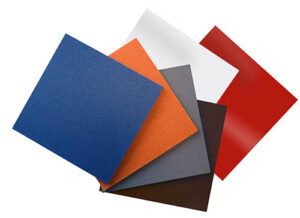

2-ply Rylon® panel standard, optional 3-ply, USDA/FDA or vinyl material
Easy-to-clean composite side column material is corrosion-resistant and chemical-resistant and includes full-height brush seals on both sides of the door
Bottom bar seal for energy efficiency and Quick-Set™ Break-Away™ tabs allow it to release in either direction without damaging the door
-
Benefits
- Quick-Set™ repair system allows the operator to reset the door with the push of a button after aligning the bottom bar.
- Corrosion and chemical-resistant side frames are easy to clean and more impact-resistant than stainless steel.
- Direct-drive motor opens the door at up to 50 inches per second for improved traffic flow, productivity and energy conservation.
-
Safety
- Intuitive and Customizable Pathwatch® Safety Light System provides advanced warning to vehicle drivers and pedestrians.
- Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
- A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
- Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.
Performance You Can Count On
Construction
- 2-ply door panel sections with integrated wind ribs
- Full-width, replaceable vision panel
- Fiberglass composite side frames
- Front and rear full-height brush seals
- Extruded aluminum break-away bottom bar
- Vinyl loop seal on bottom bar
Options
- 3-ply, USDA/FDA-compliant or tear-resistant vinyl door panel
- ABS Plastic hood and motor cover
- Fiberglass wind ribs
- IP65 Severe-duty motor
- Stainless steel-clad bottom bar
- Vinyl weatherseals
- Optional counterweighted lift-assist system
What Our Customers Have to Say
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the Plexline is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
