The High-Speed Roll Up Door Designed to Meet FDA Guidelines

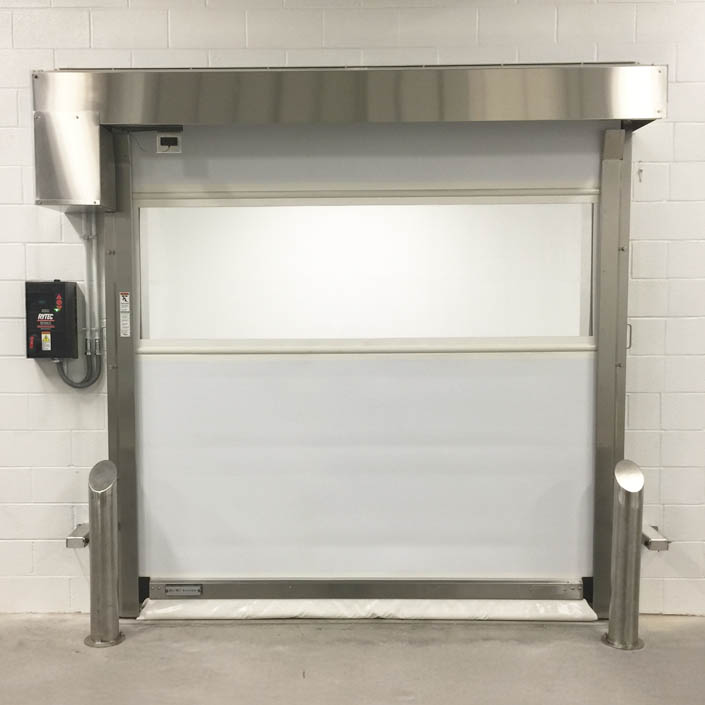

PredaCleanTM High-Performance Door
The PredaClean door is designed specifically to meet the operational and sanitary requirements of food and beverage applications while maintaining pressure differentials. Innovative engineering means this clean room door provides all the maintenance-saving and efficiency benefits of a high-performance door while allowing for easy wipe-down cleaning.
Ideal for food and beverage applications, the PredaClean can be built up to 12′ wide x 12′ high.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
AC drive allows for soft acceleration and deceleration, reducing wear, increasing door longevity and providing quiet operation
Optional hood and motor covers for protection and aesthetics
Smooth vinyl panel standard, optional 2-ply, 3-ply Rylon or USDA/FDA material
Full width, replaceable vision panel with integral aluminum wind ribs
304 stainless steel and #4 finish removable side frame covers for easy cleaning with full height weatherseals
Stainless clad bottom bar with only a 3-inch profile height and vinyl seal for energy efficiency and Quick-Set™ Break-Away™ tabs allow it to release in either direction without damaging the door
-
Benefits
- Ensure cleanliness and compliance with full wipe-down of all surfaces.
- 304 stainless steel and #4 finish removable side frame covers for easy cleaning – no tools required.
- Opening speeds up to 50 inches per second improve traffic flow and operational efficiency.
- Direct drive motor and AC drive reduce maintenance and increase door longevity.
-
Safety
- Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
- A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
- Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.
Performance You Can Count On
Construction
- Smooth vinyl door panel
- Fully bolt-together, aluminum side frames
- 304 stainless steel removable side frame covers
- Full-height weatherseal for a tight seal
- Dual NEMA 4X thru-beam photo eyes and safety reversing edge
- Stainless clad break-away bottom bar
Options
- 2-ply, 3-ply or USDA-compliant door panel – multiple color options
- Stainless steel hood and/or motor cover
- Fiberglass wind ribs
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the PredaClean is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
