Low Profile Design with Rugged Durability for Industrial Applications
PowerTec™ Pro High-Performance Rubber Door
The PowerTec Pro industrial rubber roll-up door leverages the reliability and durability of PowerTec rubber doors and adds a low-profile design, allowing it to fit into tighter space requirements. Its slim profile requires no more space than that of standard rolling steel doors. Featuring springless engineering and an impactable design, it has few moving parts and requires only minimal maintenance while ensuring increased productivity and efficiency.
Ideal for exterior or interior applications in a variety of industries including manufacturing, warehousing, distribution, transit, parking, government/municipal operations and more. PowerTec Pro can be built up to 18′ wide x 18′ high.
The low profile PowerTec Pro high-performance rubber door is powered exclusively by the Rytec System 4® Controller and backed with a limited lifetime rubber panel warranty and a 2-year limited motor, mechanical and electrical warranty.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
AC drive allows for soft acceleration and deceleration, reducing wear, increasing door longevity and providing quiet operation
Optional hood and motor covers for protection and aesthetics
Durable, SBR or EPDM panel material
Powder-coated components provide corrosion-resistance
Bottom bar seal for energy efficiency
-
Benefits
- Engineered with a springless design and few moving parts for low maintenance.
- Thick, puncture and rip-resistant reinforced SBR rubber panel.
- 3.5-inch low profile side columns to fit into tight spaces.
- Variable AC drive and intelligent controller reduce wear on door parts and control power consumption, with opening speed up to 18 inches per second.
-
Safety
- Standard safety yellow side columns and bottom bar.
- Dual thru-beam photo eyes detect movement close to the door, activating reverse-to-open.
- Standard chain hoist for manual operation in the event of power failure.
Performance You Can Count On
Construction
- 1/4-inch thick SBR rubber panel

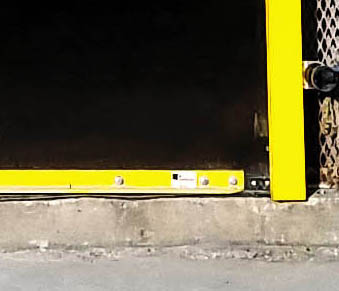

- Breakaway bottom bar in safety yellow
- Powder-coated components provide corrosion-resistance
- 3.5-inch low profile side columns in safety yellow
- Rubber loop seal on bottom bar
Options
- Blue or gray EPDM panel material
- Hood and motor cover
- Wireless reversing edge
- Pathwatch® Safety Light System
- Windload package
- 2” high visibility strip
- 14” x 14” or 20″ x 20″ vision windows
- Multiple door activation options available; contact factory for details
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the PowerTec Pro is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
