Rugged, Reliable Rubber Doors for Large Openings

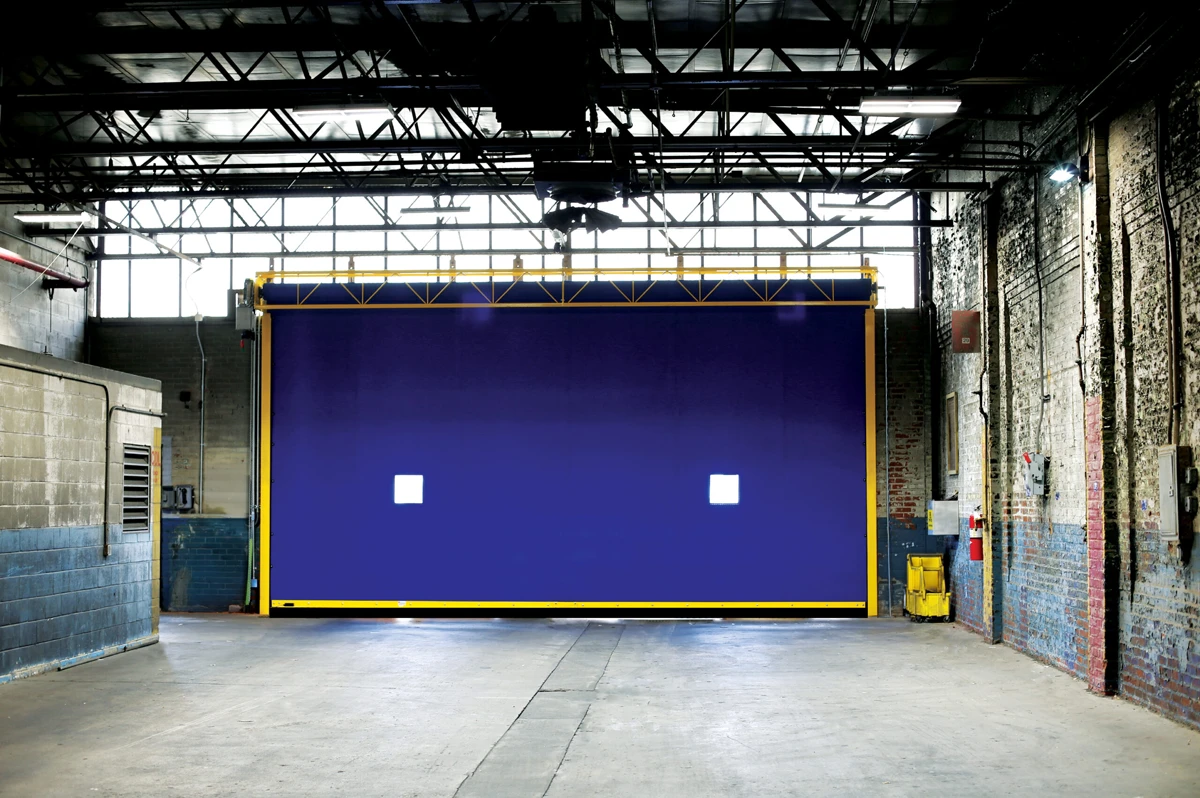

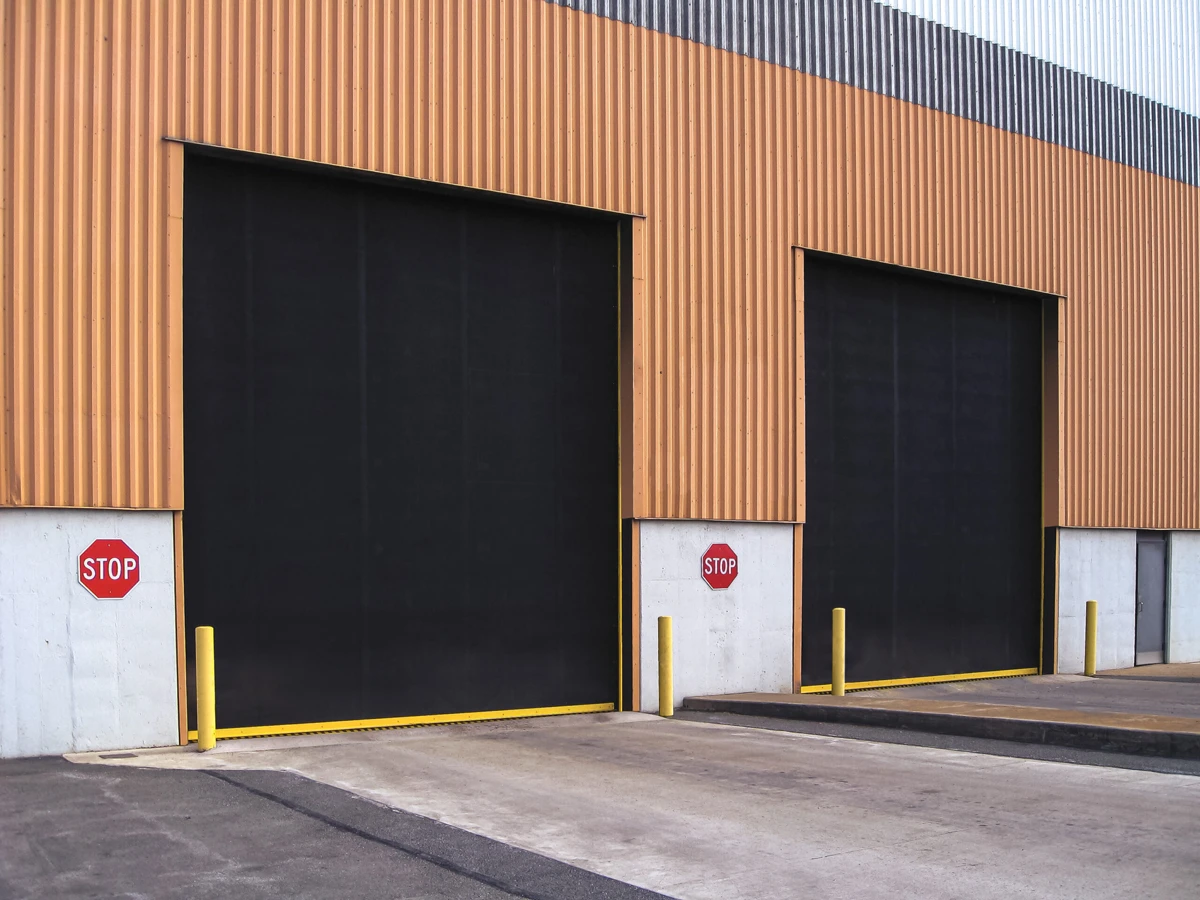

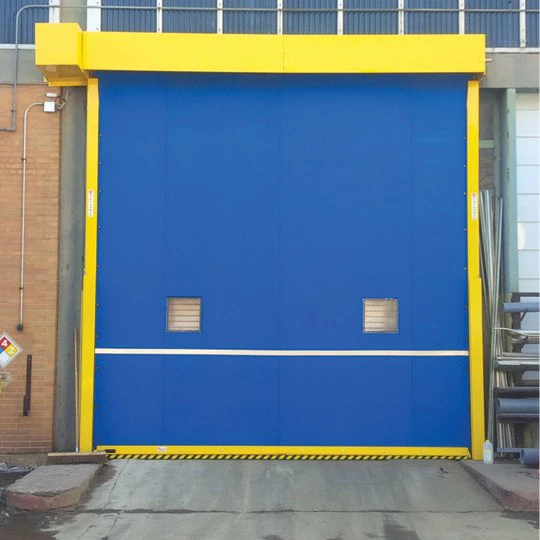

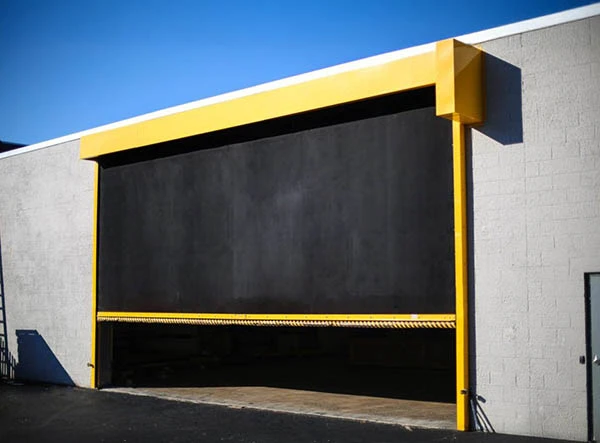

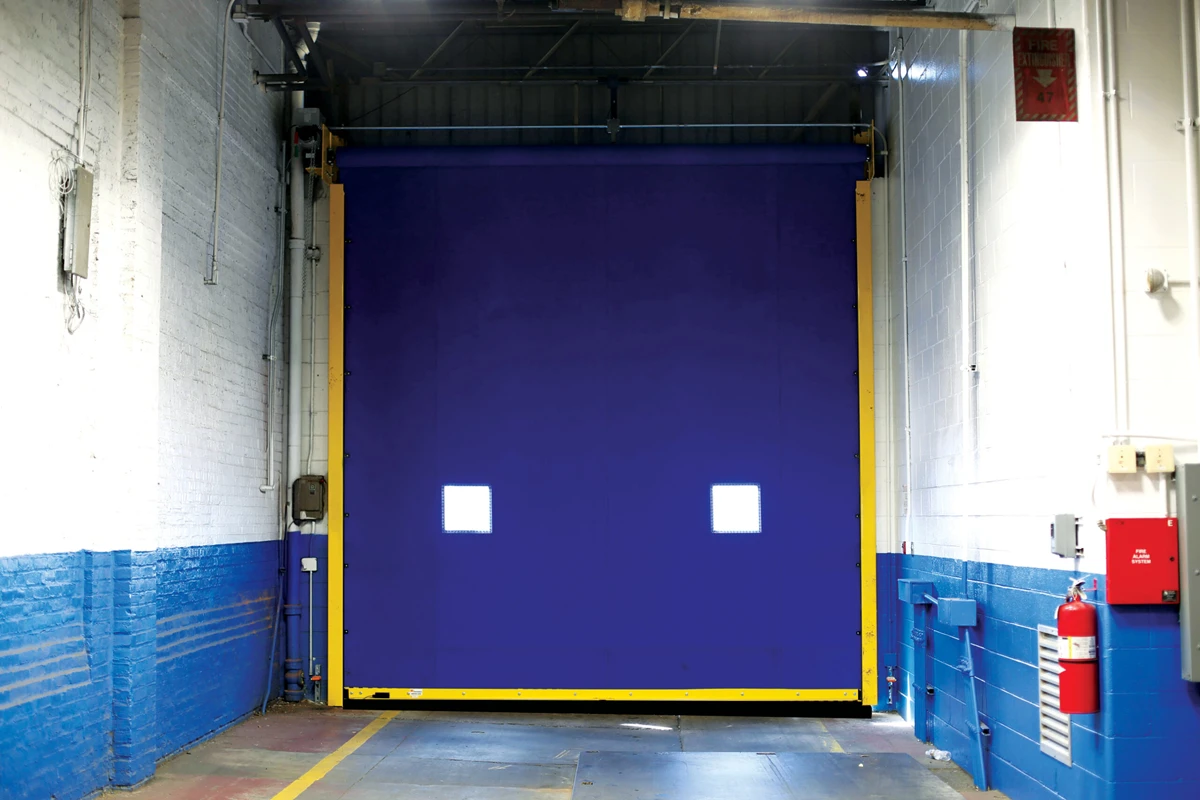

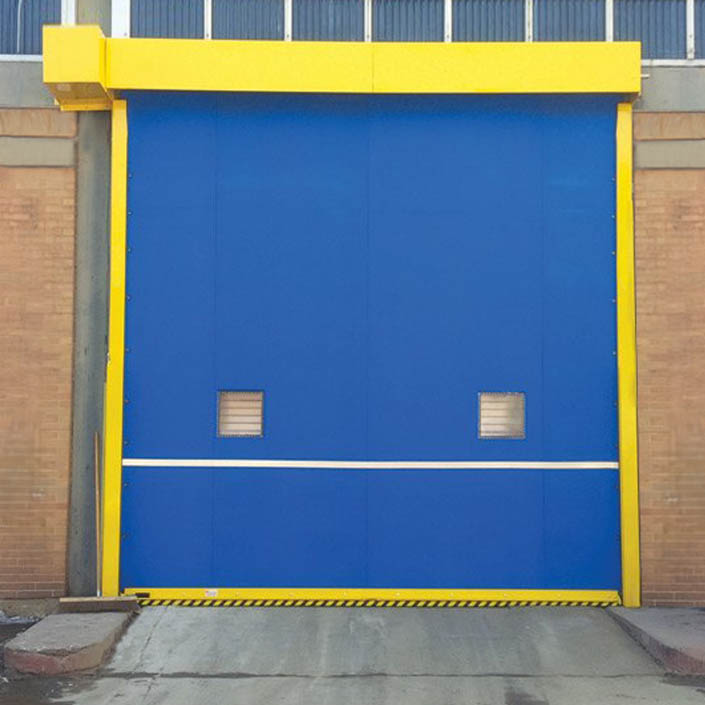

PowerTec™ SR High-Performance Rubber Door
The PowerTec SR rubber door can be built to fit large openings in a variety of settings – and withstand harsh industrial environments. Its heavy-duty components and durable SBR panel are engineered to take a hit and be back up and running with little effort – keeping facilities moving and productive. The springless, low maintenance design ensures continuous operation and safer operating conditions.
Ideal for exterior or interior applications across many industries including manufacturing/warehousing/distribution, transit, parking, automotive dealerships, government operations and heavy equipment. It’s the ‘go-to’ solution when doors for large openings are needed – and can be built up to 30′ wide x 30′ high.
The PowerTec SR rubber industrial overhead door is powered exclusively by the Rytec System 4® Controller and backed with a limited lifetime rubber panel warranty and a 2-year limited motor, mechanical and electrical warranty.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
AC drive allows for soft acceleration and deceleration, reducing wear, increasing door longevity and providing quiet operation
Optional hood and motor covers for protection and aesthetics
Durable, SBR or EPDM panel material
Optional vision windows provide visibility
Powder-coated components provide corrosion-resistance
Bottom bar seal for energy efficiency and break-away tabs allow it to release in either direction without damaging the door
-
Benefits
- Engineered with a springless design and few moving parts for low maintenance.
- Thick, puncture and rip-resistant reinforced SBR rubber panel.
- Opening speed up to 48 inches per second improves traffic flow, productivity and energy conservation.
- Variable AC drive and intelligent controller reduce wear on door parts and control power consumption.
-
Safety
- Standard safety yellow side columns and bottom bar.
- Dual thru-beam photo eyes detect movement close to the door, activating reverse-to-open.
- Wireless reversing edge reverses door upon request.
- Wireless system eliminates coil cords and provides two-way communication between control box and bottom bar.
- Standard chain hoist for manual operation in the event of power failure.
Performance You Can Count On
Construction
- 1/4-inch thick SBR rubber panel
- Breakaway bottom bar in safety yellow
- Powder-coated components provide corrosion-resistance
- 5-inch low profile side columns in safety yellow
- Rubber loop seal on bottom bar
Options
- Blue or gray EPDM panel material
- Hood and motor cover
- Pathwatch® Safety Light System
- Windload package
- 2” high visibility strip
- 14” x 14” or 20″ x 20″ vision windows
- Multiple door activation options available; contact factory for details
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the PowerTec SR is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
