America's Leading High-Speed Fabric Door Taken to the ‘NXT’ Level

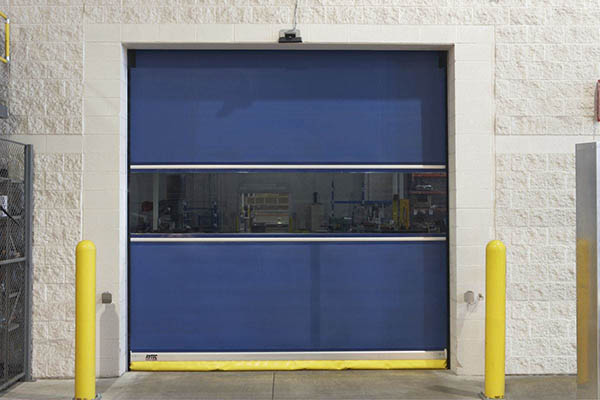

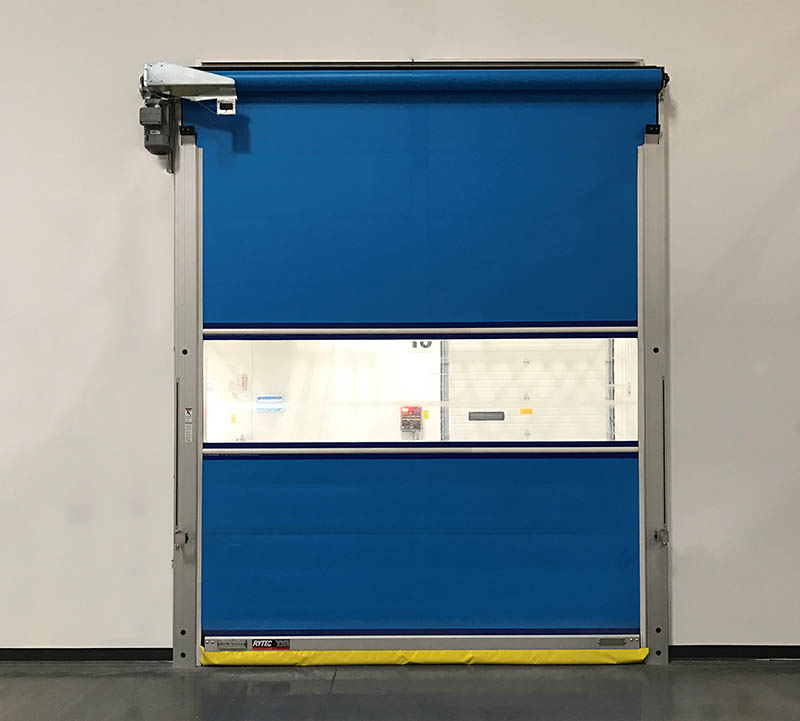

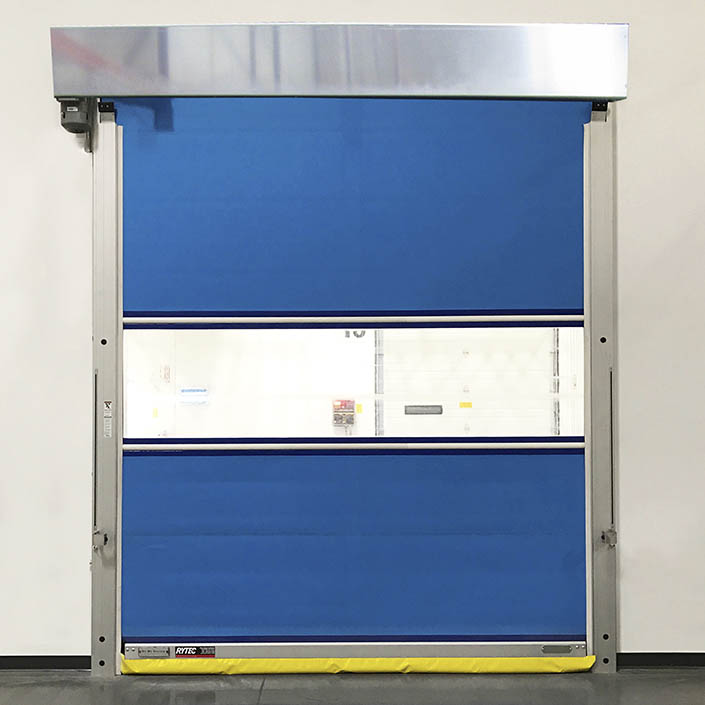

PredaDoor® NXT® High-Performance Door
The PredaDoor NXT is the top-selling high-speed, industrial roll-up door with next-generation features. A tight perimeter seal, advanced wireless safety system, and durable components provide unsurpassed performance and reliability. The NXT Quick-Set™ repair system and System 4® door controller minimize door downtime.
Ideal for interior and exterior applications, including manufacturing and warehousing, parking, coolers and cold storage, where speed, low maintenance, and dependability are critical. The PredaDoor NXT fabric roll-up door can be built up to 16′ wide x 16′ high.
PredaDoor NXT is backed by a 5-year limited warranty on motor/mechanical components and Rylon® panel material, plus a 2-year limited warranty on electrical components.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
AC drive allows for soft acceleration and deceleration, reducing wear, increasing door longevity and providing quiet operation
Optional hood and motor covers for protection and aesthetics
2-ply Rylon® panel standard, optional 3-ply, USDA/FDA-compliant, vinyl, or screen material
Full width, replaceable vision panel with integral aluminum wind ribs
Full-height brush seals on both side columns and edge-to-edge brush seal at top of door
Bottom bar seal for energy efficiency and Quick-Set™ Break-Away™ tabs allow it to release in either direction without damaging the door
-
Benefits
- Limited amount of conventional wear parts require minimal maintenance or repair for the life of the door.
- Fast opening speeds, up to 50 inches per second, improve traffic flow, productivity and energy conservation.
- NXT Quick-Set repair allows the door to be easily reset without tools.
- Variable AC drive and intelligent controller reduce wear on door parts and control power consumption.
-
Safety
- Intuitive and Customizable Pathwatch® Safety Light System provides advanced warning to vehicle drivers and pedestrians.
- Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
- A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
- Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.
Performance You Can Count On
Construction
- 2-ply Rylon® door panel sections
- Full width, replaceable vision panel
- Integral wind ribs
- Extruded aluminum break-away bottom bar
- Full-height brush seals
- Brush seal at top of door
- Vinyl loop seal on bottom bar
Options
- 3-ply, USDA/FDA-compliant, tear-resistant vinyl or screen door panel – multiple color options
- Fiberglass wind ribs
- Vinyl weatherseals
- Hood and motor cover
- Stainless steel side columns, bottom bar cover, hood or motor cover
- Car wash configuration – consult factory for details
Quick Ship
PREDADOOR® NXT® PROGRAM
- Shipment within 10-15 days or less after specifications confirmed
- Standard configuration/size/panel choices
- Rytec’s top-selling fabric model
- Expedited Quick Ship order processing
See the PredaDoor® NXT® Door in Action
America’s Leading High-Speed Fabric Door Taken to the ‘NXT’ Level
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
What Our Customers Have to Say
Let Us Help You Select the Right Door
Not sure if the PredaDoor NXT is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
