The Roll-Up Door That Revolutionized the Industry

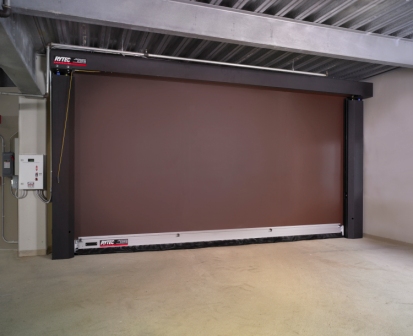

Fast-Seal® High-Performance Door
Fast-Seal – the first high-speed industrial door that could take a hit without suffering damage. Combining Break-Away™ bottom bar and patented System II™ counterbalance and tensioning system – and including new System 4+ Controller*, powder coated components* and manufacturing process upgrades – Fast-Seal remains unparalleled in commercial roll-up door performance. The new Fast-Seal provides the dependability and durability needed for fast-paced, 24/7 operations with minimal downtime or significant maintenance needs.
Ideal for a variety of applications, such as parking, the Fast-Seal is designed for use as an exterior fabric door or for interior applications and can be built up to 35′ wide or 24′ high, up to a maximum door size of 600 square feet.
Fast-Seal is backed by a 5-year limited warranty on motor and 3-ply Rylon® panel material, plus a 2-year limited warranty on mechanical/electrical components.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
Power drive system with electric motor/brake
3-ply Rylon door panel standard; 2-ply, full screen door panel or removable windows optional
Optional wind bars for added protection against weather
System II independent counterbalance and tensioning system withstands high pressure and wind loads
Full-height brush seals on both side columns and vinyl top and bottom seals
Bottom bar seal for energy efficiency and heavy-duty Break-Away™ end brackets allow it to release in either direction without damaging the door
-
Benefits
- Built to withstand pressure and winds using the System II independent counterbalance and tensioning system.
- Patented Break-Away bottom bar can be reset in just seconds, without tools.
- Bolted side column base plates for improved stability and access*.
- New head assembly design for greater strength and durability.
- Standard 3-ply panel comes with a five-year warranty and a lifetime warranty on counterweights and tension springs.
-
Safety
- Intuitive and Customizable Pathwatch® Safety Light System provides advanced warning to vehicle drivers and pedestrians.
- Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
- A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
- Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.
Performance You Can Count On
Construction
- 3-Ply, 85.5 oz, Rylon® door panel
- Fully bolt-together, reinforced side frames
- Standard ‘split lift off’ side column covers*
- Full-height vinyl door seals
- System II independent counterbalance & tensioning system
- Break-Away™ extruded aluminum bottom bar
- Vinyl loop seal on the bottom bar
Options
- 2-Ply Rylon door panel – multiple color options
- Full-screen door panel
- 17″ x 17″ or 24″ x 24″ replaceable windows or screens
- Wind bars
- Hood cover
- Severe-duty motor
*Standard for models 20’2”W x 20’2”H or smaller
See the Fast-Seal® Door in Action
The Door That Revolutionized the Industry
What Our Customers Have to Say
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the Fast-Seal is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
