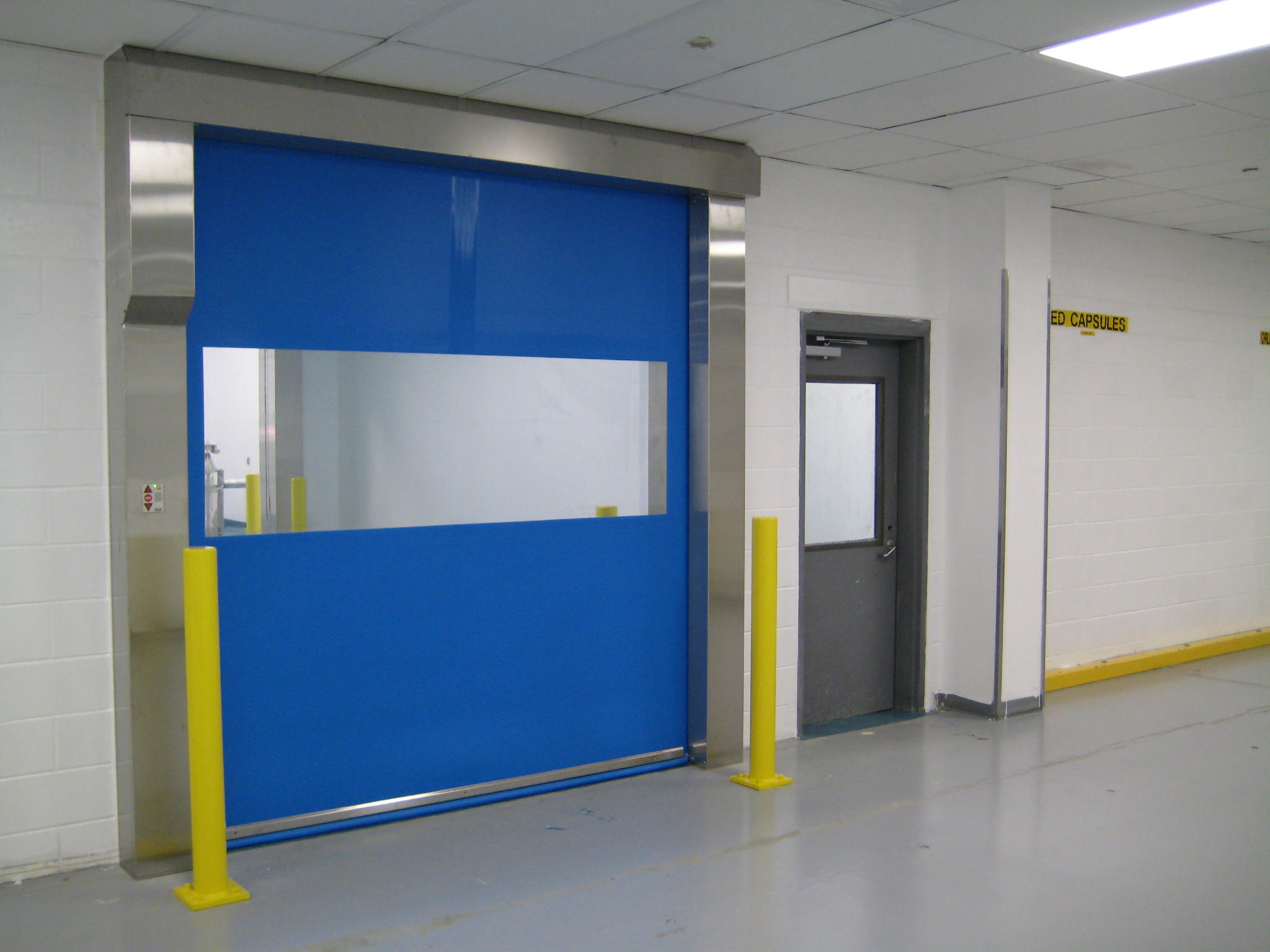

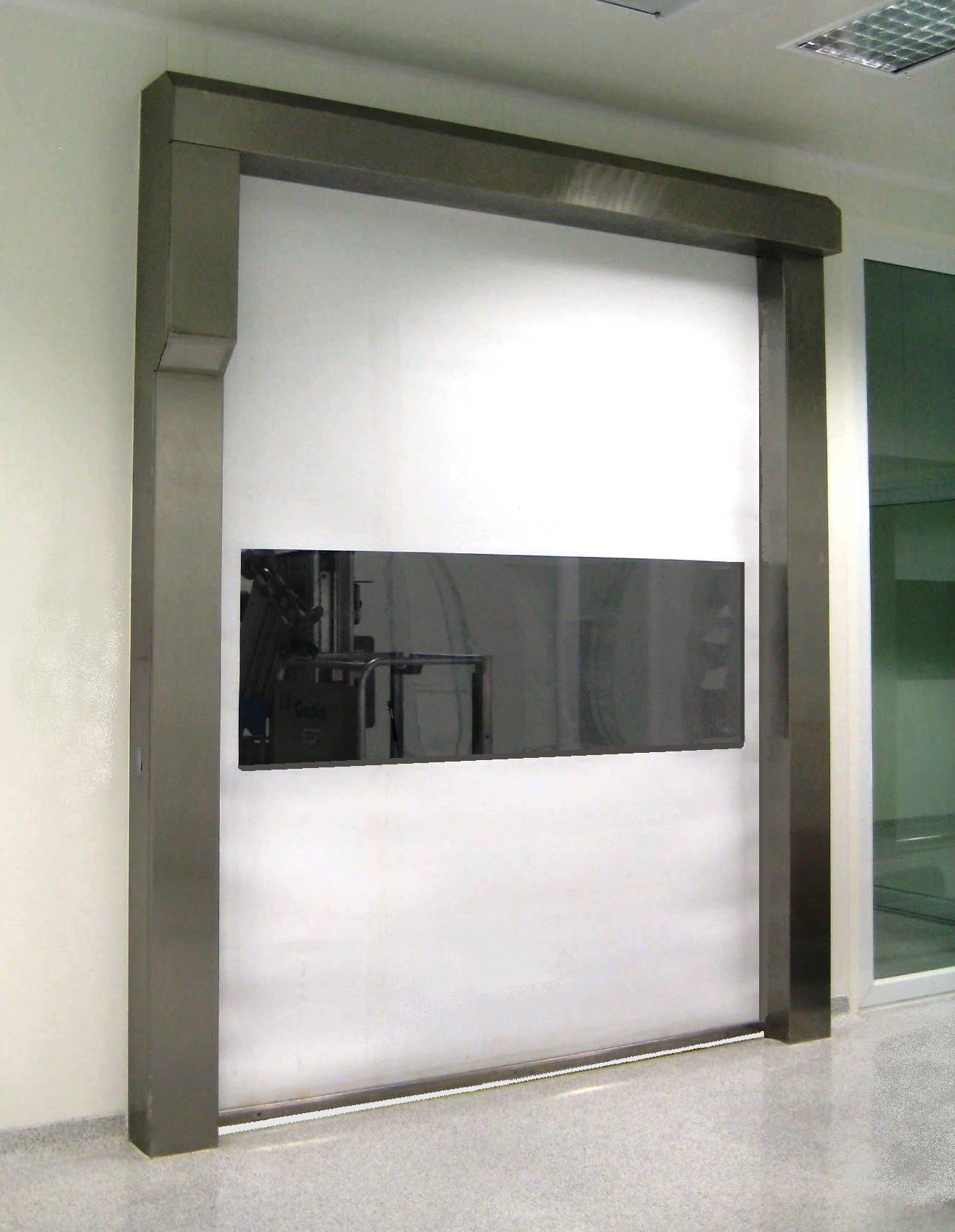

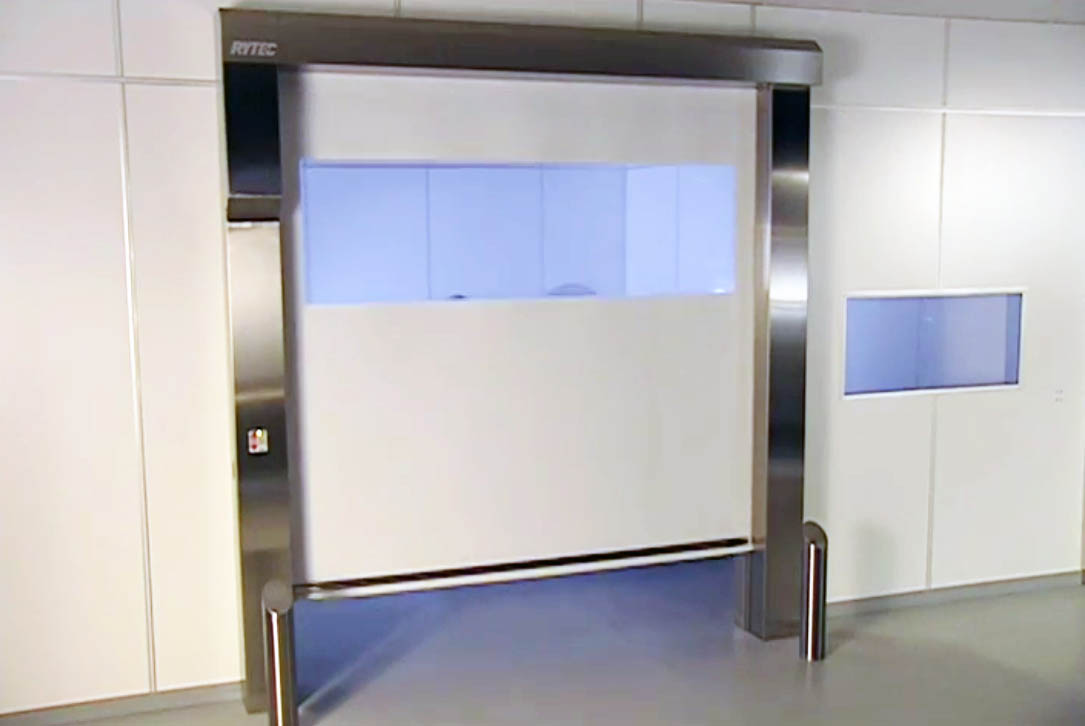

The Clean Room Door Engineered for cGMP and 'Class-Rated' Facilities
Pharma-Seal® High-Performance Door

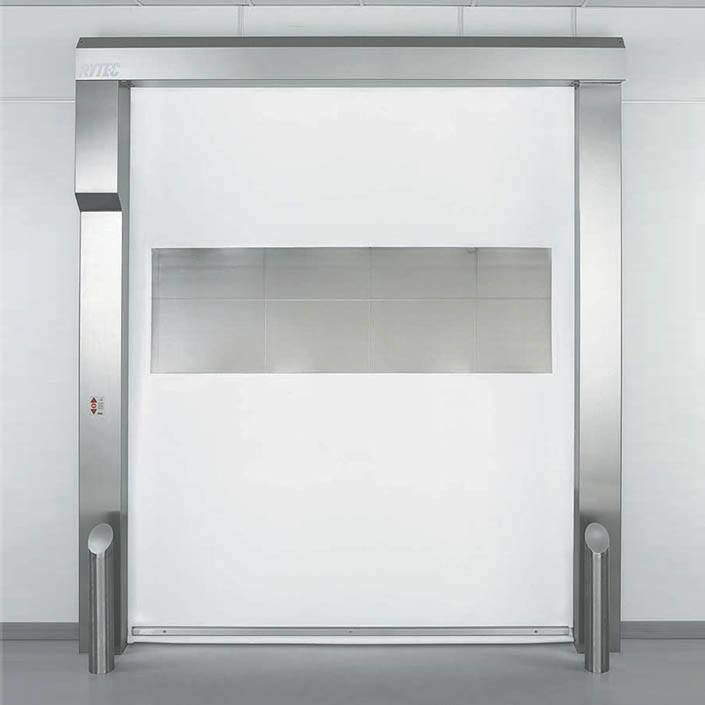

Engineered to comply with cGMP guidelines – while maintaining pressure differentials – the Pharma-Seal is the tightest sealing, most reliable, high-performance pharmaceutical clean room door available. The simple design is fully enclosed with stainless steel side columns and head assembly without any external parts, making it easy to clean.
Engineered for pharmaceutical environments a flush membrane switch and flush manual release handle are standard. Hands free wave-to-open options are available.
As the ideal pharmaceutical door, the Pharma-Seal is also suited for food and beverage processing applications, and can be built up to 10′ wide x 10′ high.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
AC drive allows for soft acceleration and deceleration, reducing wear, increasing door longevity and providing quiet operation
Fully enclosed stainless steel hood seals the top of the door eliminating the need for a weather gasket that could eventually create particles in the air and on the floor
Optional Vulcanized vision windows or full width vision panel
Smooth 2-ply USDA/FDA-compliant multifilament panel for easy cleaning standard that withstands industry 0.10" W.C. of room pressurization standard

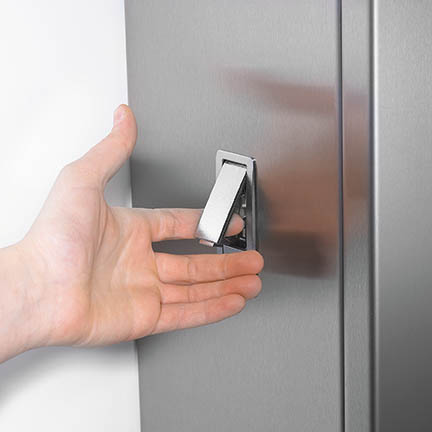

Flush counterbalanced manual release system fully-enclosed allows door to open with the flip of a lever
Fully enclosed side frames, constructed of 304 stainless steel and #4 finish are easy to clean and remove, includes hidden wind knobs for entire perimeter seal
Stainless clad bottom bar with only a 3-inch profile height and fabric loop seal for energy efficiency and tight seal
-
Benefits
- With only a 3/8-inch gap for the door panel, hidden wind knobs seal the perimeter and withstand negative pressure.
- Variable speed AC drive enables opening speeds up to 50 inches per second and provides uninterrupted facility operations.
- Using all USDA/FDA-compliant materials, the Pharma-Seal is engineered to provide unprecedented reliability in class-rated environments.
-
Safety
- ‘Intelligent’ Advanced3 Light Curtain Safety System continuously monitors door opening.
- Persons or objects entering the opening will cause the door to reverse without contact.
- Counterbalanced manual release system incorporates fully-enclosed counterweight and brake release allowing door to open with the flip of a lever.
Performance You Can Count On
Construction
- USDA/FDA-compliant, 2-ply door panel
- Fully-enclosed 304 stainless steel side frames with removable covers
- Stainless steel hood assembly
- Stainless clad bottom bar with loop seal
- Flush mounted manual release
Options
- 316 stainless steel head and side frames
- Vulcanized vision window
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the Pharma-Seal is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
