Red Stripes

High-Speed, Highly Insulated, and Practically Unstoppable

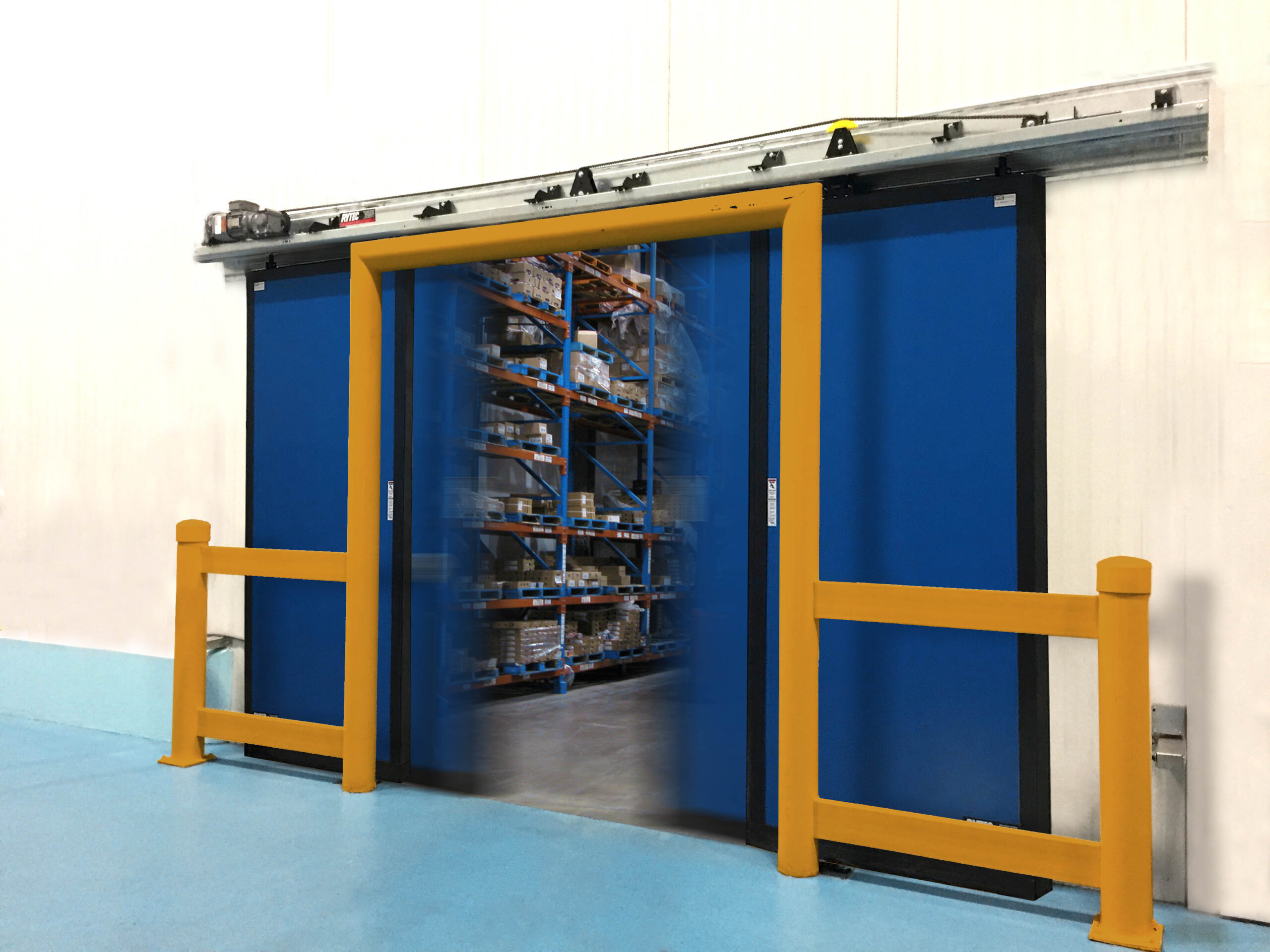

Turbo-Slide® High-Performance Door

With proprietary technology and a superior design, the Turbo-Slide® high-performance insulated sliding door provides advanced thermal features to endure the rigorous demands of cold storage environments. With R-values ranging from R-17 up to R-40, the Turbo-Slide® freezer warehouse sliding door offers excellent energy efficiency along with an innovative design that enables the door to withstand accidental impact with easy realignment.

The Turbo-Slide® is ideal for cold storage and food & beverage operations, where increased productivity and energy efficiency are paramount and can be built up to 10’ wide x 24’ high for single slide, and up to 16’ wide x 24’ high for bi-parting.

Turbo-Slide® is backed by a 5-year limited warranty on standard door panel material, plus a 1-million cycle/5-year limited warranty on mechanical components and System 4® Door Controller.

  • Using state-of-the-art technology, door panels are up to 50% lighter than conventional sliding door panels.
  • Opening speeds of up to 125 inches per second provide nearly instant access to the full height of the door opening.
  • Full perimeter seal secures the thermal envelope and provides a tight seal on all edges.
  • Available in single slide and bi-parting models.
  • Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
  • Manual release handle in case of power outage.

Construction

  • Flex-Panel® with an EVA foam core (R-17 to R-40)
  • Thermoplastic outer shell
  • Polyurethane elastomer edge seal
  • Multi-layered PVC-coated polyester fabric bottom sweep
  • Heavy-duty galvanized steel track assembly
  • Heated gasket system to prevent icing around the opening

Options

  • USDA & FDA seal
  • Stainless steel hood & motor cover
  • Velcro® or sealed perimeter skirt
  • Single-slide or bi-parting panel configuration
red stripes

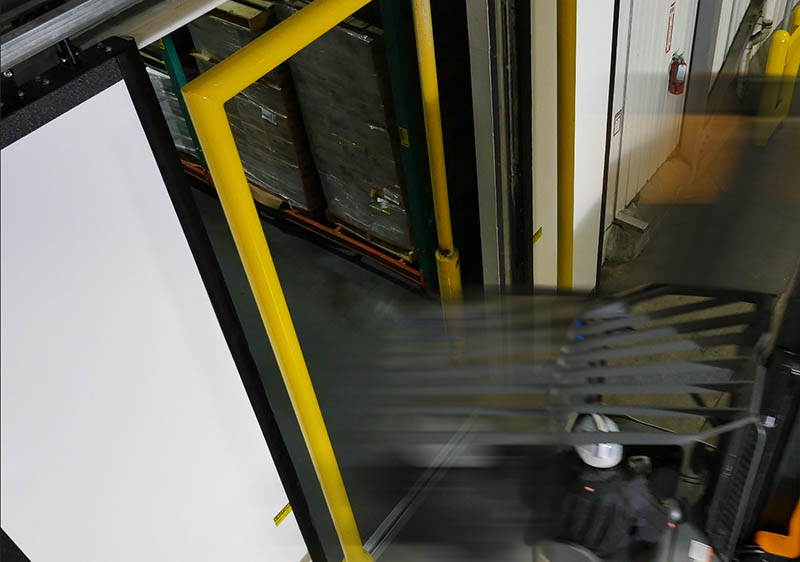

See the Turbo-Slide® in Action

High-Speed, Highly Insulated, and Practically Unstoppable

Document Resources

Additional manuals and documents available in our Document Resource Center. Click here to browse.

Knock Temperature Differentials Out Cold

Selecting the Right Cold Storage Door

Download our newly updated 2nd edition FREE Guide: Knock Temperature Differentials Out Cold – with High Performance Doors. You Will Learn the How and Why of:
