The World’s Fastest, Most Energy-Efficient Insulated Roll-Up Door

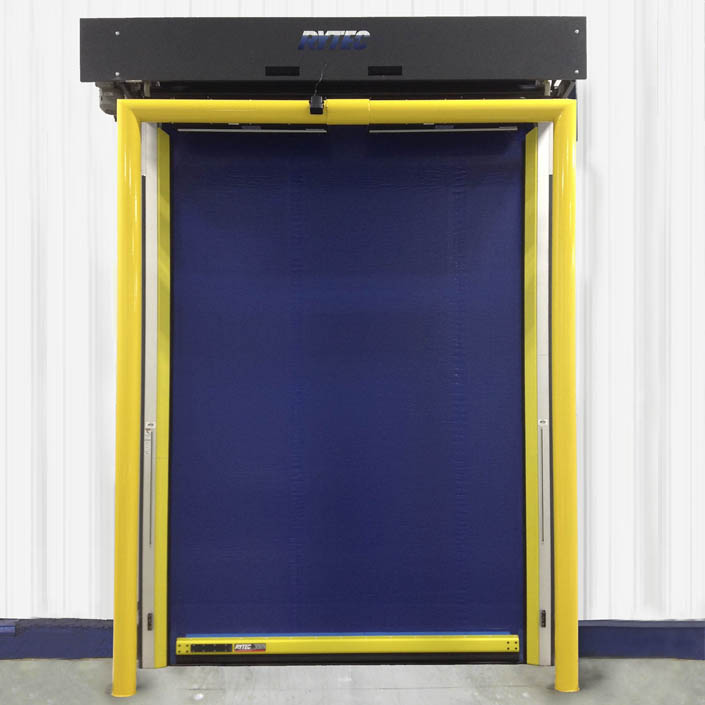

Turbo-Seal® Insulated High-Performance Door

With an average operational speed of over 101 inches per second and extraordinary insulating capability, the Turbo-Seal® Insulated roll-up door is the definitive solution for cold storage environments. This revolutionary door is built on the proven Turbo-Seal® platform for unmatched reliability and lasting performance.

The Turbo-Seal® Insulated is ideal for interior cold storage and food & beverage operations and can be built up to 12′ wide x 21′ high.

Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

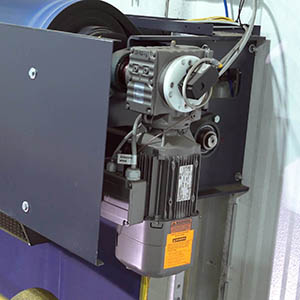

Turbo-Seal Insulated Head AssemblyThree horsepower motor and counterbalanced with heavy duty straps to assist motor and reduce energy consumption

Self-supporting steel side frames with four fiberglass protrusions and allows for easier maintenance and access to door components

Turbo-Seal Insulated Insulated Panel1 inch thick insulated panel with 3-ply construction consisting of Rylon, closed-cell foam and proprietary thermally-laminated protective film

Low profile side columns with extruded aluminum and fiberglass construction

Full height quad brush seals in side columns and edge-to-edge seals on top and bottom

Break-away panel instantly self-repairs and resets automatically without manual intervention

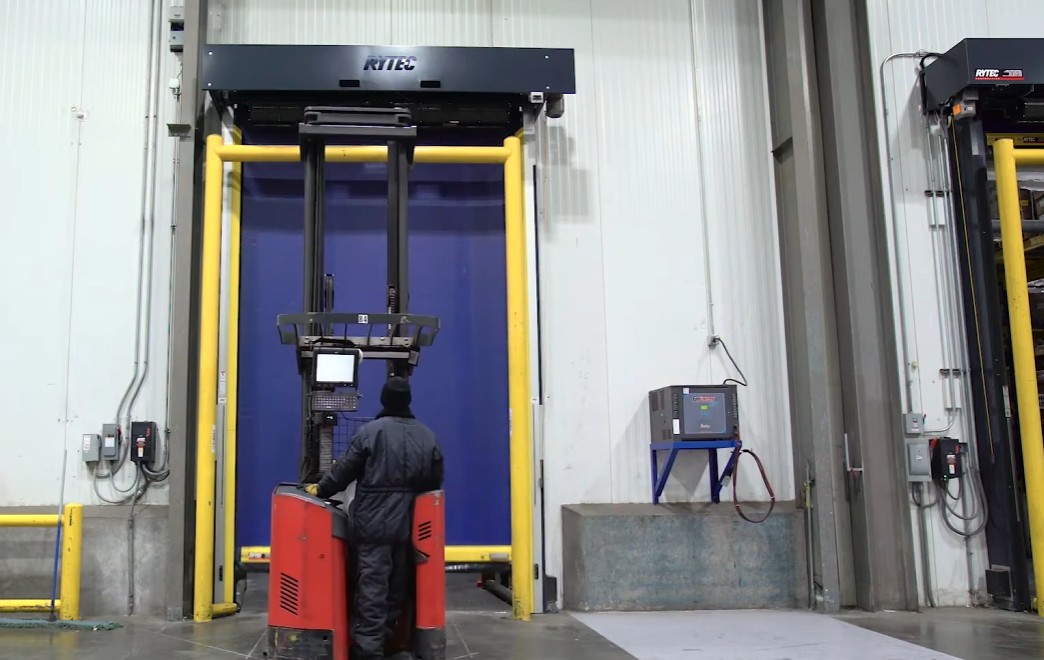

Watch the Turbo-Seal® Insulated high-performance door in action!

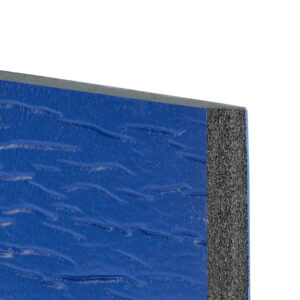

Door Panel Close Up

  • Benefits
  • Engineered to withstand the rigors of a freezer environment, but provide optimal operational & energy efficiency.
  • Thick, closed-cell foam panel with moisture-proof barrier for uniform performance.
  • With opening speed up to 182 inches per second, environmental control and traffic flow are optimized.
  • Extremely high-speed operation, self-repairing and unmatched thermal performance ensure reliability.

  • Safety
  • Intuitive and Customizable Pathwatch® Safety Light System provides advanced warning to vehicle drivers and pedestrians.
  • Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
  • A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
  • Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.

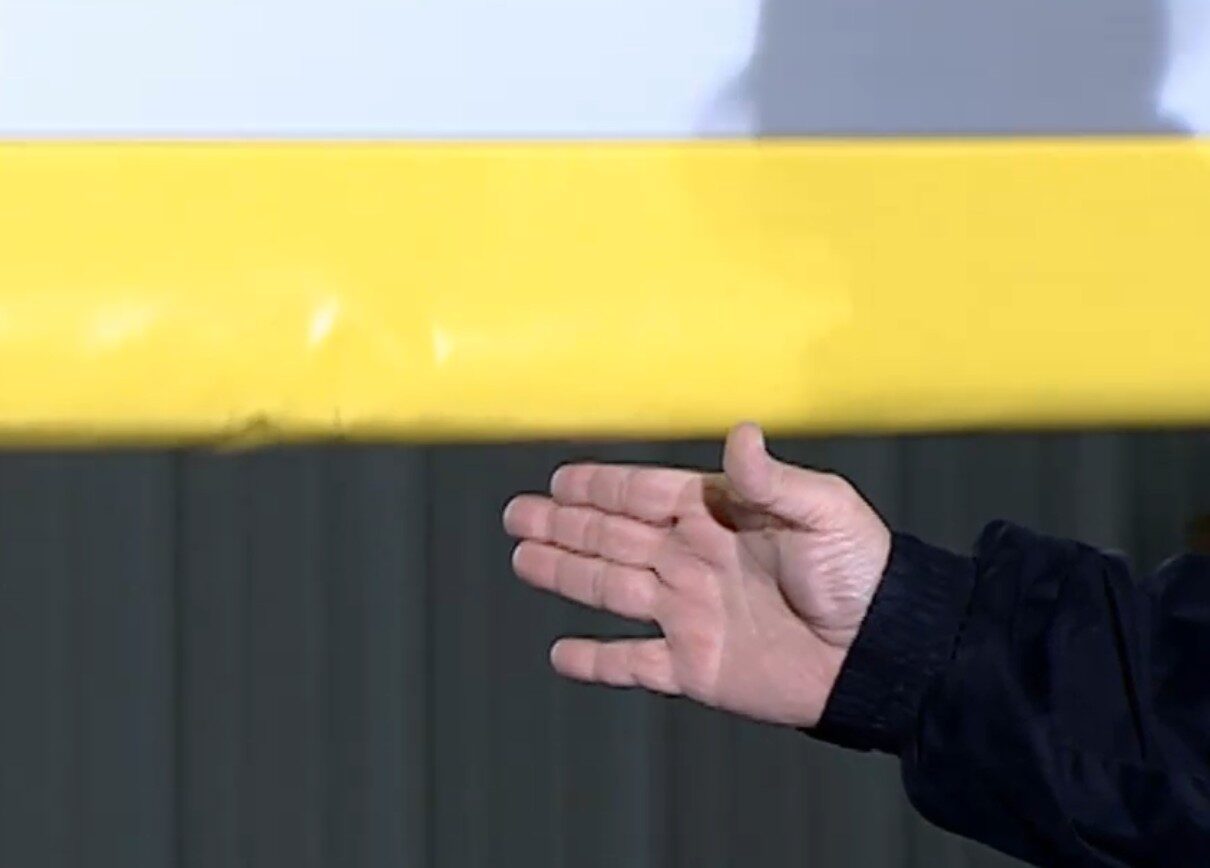

Bottom bar reversing edge

Performance You Can Count On

Construction

  • Rylon® thermal door panel (R-4 insulated value)
  • Self-supporting extruded aluminum side frames with four fiberglass protrusions
  • Thermal breaks integrated throughout the door
  • Composite Break-Away™ bottom bar
  • Integrated bottom/edge seal
  • Full-height quad brush seals
  • Edge-to-edge brush seal at top of door

Options

  • Single Source Transformer
Request More Information
red stripes

See the Rytec Turbo-Seal® Insulated Door in Action

Simply the World’s Fastest, Most Energy-Efficient Insulated Door

Knock Temperature Differentials Out Cold

Selecting the Right Cold Storage Door

Download our newly updated 2nd edition FREE Guide: Knock Temperature Differentials Out Cold – with High Performance Doors. You Will Learn the How and Why of:

  • Assessing Temperature Needs
  • Solutions for Temperatures Above Freezing
  • Solutions for Temperatures Below Freezing
  • The Importance of Size and Clearance
  • Safety Remedies to Protect staff, Products & Equipment
Get the Guide
gray stripes

What Our Customers Have to Say

There are doors we’ve had for 15 years and are still in operation after over three million cycles. While a low price for equipment is nice, what we can’t afford is door down time, and Rytec’s product reliability has proven itself throughout our relationship.
Senior Director of EngineeringCheney Brothers
We need a door that’s reliable along with a door company that is reliable, and we have found that to be the case with Rytec. Partnerships are a big part of our success. We feel that Rytec sees it the same way when it comes to relationships, and we like the way they listened to our needs.
Director of Distribution ServicesGSF
With the newer Rytec doors, with their rapid-roll design, it’s up, down very quickly – no more than ten seconds open time. It’s plenty of time for our operators to get in and out and we don’t lose nearly as much refrigeration. Rytec itself has been very good to work with.
Facilities EngineerPalermo’s Pizza
The Rytec doors are part of a successful program to control our environment and our quality.
Plant EngineerMinor’s

Document Resources

Additional manuals and documents available in our Document Resource Center. Click here to browse.

Let Us Help You Select the Right Door

Not sure if the Turbo-Seal Insulated is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
