Red Stripes

High Speed and Energy Efficiency for Automated Storage and Retrieval Systems (ASRS)

Sure-Seal® High-Performance Door

With peak speed of up to 100 inches per second and extraordinary insulating capability, the Sure-Seal® high-speed conveyor door keeps operations running smoothly. Designed for non-live-traffic storage facility conveyor door systems, it helps maintain energy efficiency with minimal air infiltration. Within facilities with frequent opening and closing, each cycle helps maintain and control environments – particularly between conveyor operations and storage areas.

The Sure-Seal is the ideal warehouse retrieval door for non-live-traffic interior applications, including cold storage, where speed, low maintenance, and dependability are critical and can be built up to 6′ wide x 13′ high.

Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Explore Now

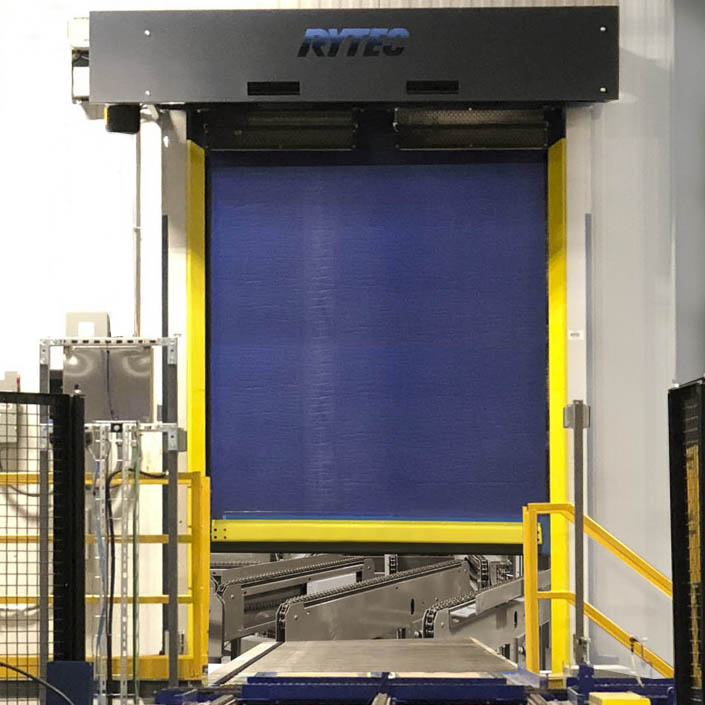

Rytec Sure-Seal Conveyor Door

Turbo-Seal Insulated Head AssemblyThree horsepower motor and counterbalanced with heavy duty straps to assist motor and reduce energy consumption

Self-supporting steel side frames with four fiberglass protrusions and allows for easier maintenance and access to door components

Turbo-Seal Insulated Insulated Panel1 inch thick insulated panel with 3-ply construction consisting of Rylon, closed-cell foam and proprietary thermally-laminated protective film

Low profile side columns with extruded aluminum and fiberglass construction

Full height quad brush seals in side columns and edge-to-edge seals on top and bottom

Integrates with ASRS system controls with dedicated 'open', 'close', and local control inputs and configurable for integrated signals

Door Panel Close Up

  • Benefits
  • Insulated panel provides energy efficiency between non-live-traffic environments.
  • Engineered to withstand the rigors of a freezer environment, but provide optimal operational & energy efficiency.
  • Opening speed up to 100 inches per second to support high cycle facilities with frequent open-and-close cycles.
  • Standard I/O expansion board and System 4® programming versatility provide efficient integration capability with ASRS controls.

Performance You Can Count On

Construction

  • Rylon® thermal door panel (R-4 insulated value)
  • Self-supporting steel side frames with four fiberglass protrusions
  • Thermal breaks integrated throughout the door
  • Integrated bottom/edge seal
  • Full-height quad brush seals
  • Edge-to-edge brush seal at top of door

Options

  • Side column heaters
  • Overhead blowers
  • Break-Away™ bottom bar with reversing edge and Ry-Wi® Wireless System
  • Front and rear dual thru-beam photo eyes
  • Pathwatch® Safety Light System
Request More Information

What Our Customers Have to Say

There are doors we’ve had for 15 years and are still in operation after over three million cycles. While a low price for equipment is nice, what we can’t afford is door down time, and Rytec’s product reliability has proven itself throughout our relationship.
Senior Director of EngineeringCheney Brothers
We need a door that’s reliable along with a door company that is reliable, and we have found that to be the case with Rytec. Partnerships are a big part of our success. We feel that Rytec sees it the same way when it comes to relationships, and we like the way they listened to our needs.
Director of Distribution ServicesGSF
With the newer Rytec doors, with their rapid-roll design, it’s up, down very quickly – no more than ten seconds open time. It’s plenty of time for our operators to get in and out and we don’t lose nearly as much refrigeration. Rytec itself has been very good to work with.
Facilities EngineerPalermo’s Pizza
The Rytec doors are part of a successful program to control our environment and our quality.
Plant EngineerMinor’s

Document Resources

Additional manuals and documents available in our Document Resource Center. Click here to browse.

Let Us Help You Select the Right Door

Not sure if the Sure-Seal is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
