Low Profile High-Speed Door for Limited Space Plus Security
Spiral® LP High-Performance Door

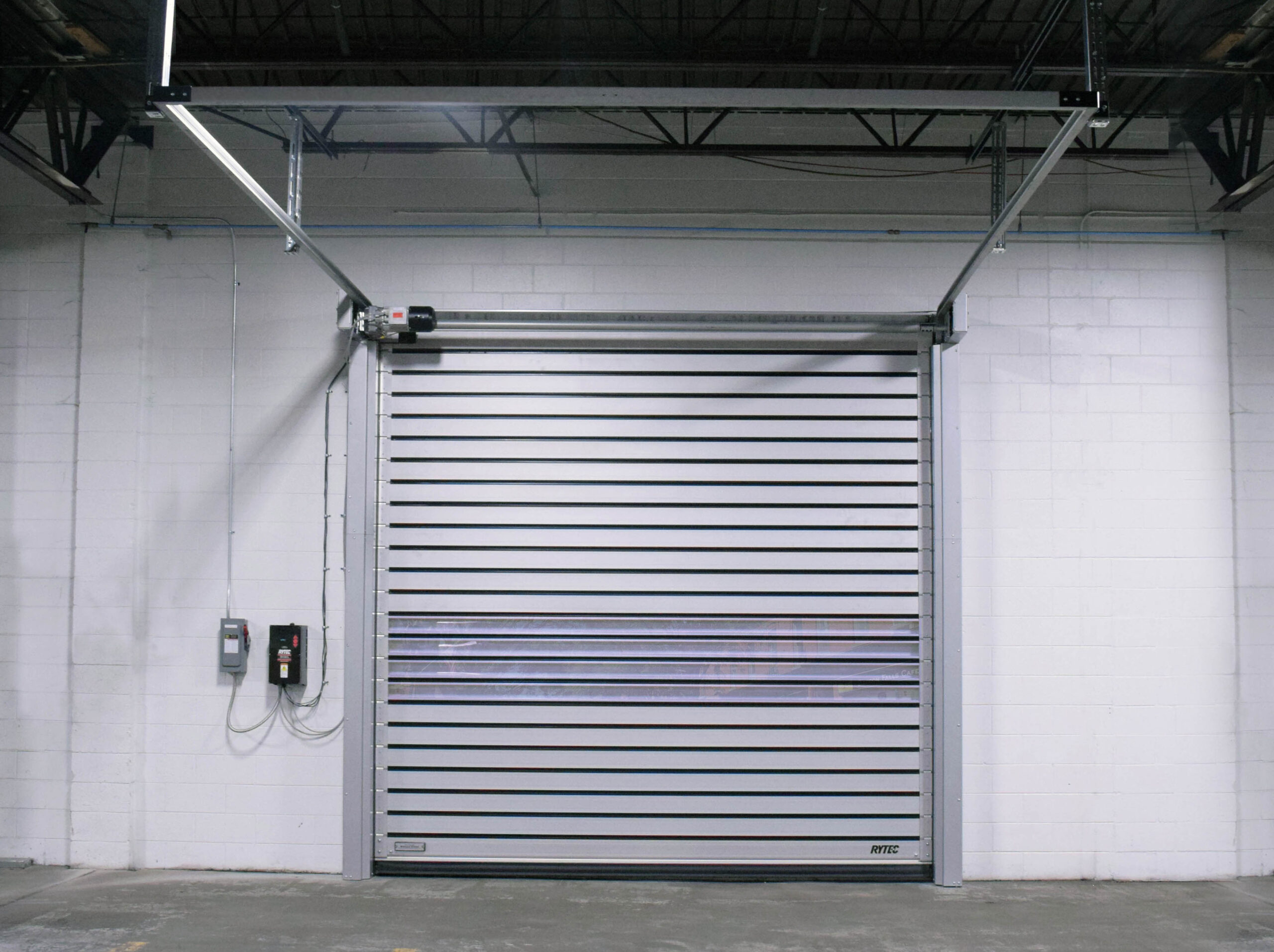

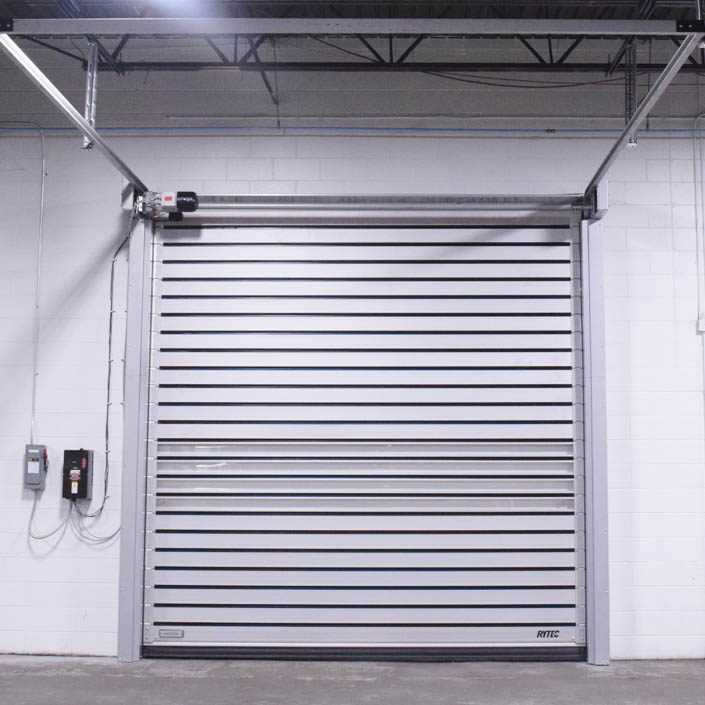

Combining a low profile side column design with a low headroom configuration the Spiral® LP (Low Profile) door offers high performance and speed for high-traffic situations with limited space. This reduced profile can benefit many parking garages and other commercial structures.
The Spiral LP low-profile high-performance door has sleek, crisp lines. It also features rigid, aluminum slats for strength, eliminating the need for a second security door.
With a reduced profile allowing it to fit in tighter spaces, it is the ideal low-profile parking door. It is also equally optimal for security, government, parking, and automotive dealership installations.
Models designed with 9-inch tall full-vision (Spiral® LP-FV) or full-ventilation (Spiral® LP-VT) slats for specific applications or environments are also available.
Spiral LP is backed by a 5-year limited warranty on motor/mechanical components and materials, plus a 2-year limited warranty on electrical components.
The Rytec Spiral® door portfolio includes models certified to withstand winds up to 175 miles per hour. See our hurricane-rated doors.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
Special track design allows a door to fit with as little as 11 inches of clearance
AC drive allows for soft acceleration and deceleration, reducing wear, increasing door longevity and providing quiet operation
Double-walled aluminum slats standard, vision and ventilated slats optional
SmartSurround® Advanced Detection & Alert System
Next-generation pattern recognition and advanced traffic- sensing technology
Low profile side columns require only 6.5 inches of side room clearance
Integral rubber
weatherseals
between slats
Bottom bar
seal for energy
efficiency
-
Benefits
- Low profile side columns require only 6.5 inches of side room clearance.
- Special track design allows a door to fit with as little as 11 inches of headroom clearance.
- Quiet, low maintenance spring-less operation.
- Double walled aluminum slats, integral rubber weatherseals and heavy-duty hinge system provide solid security.
-
Safety
- Advanced3 Light Curtain Safety System continuously monitors door opening.
- SmartSurround® Advanced Detection & Alert System combines optical light curtains to monitor traffic and visual safety lights – all in one.
Performance You Can Count On
Construction
- Double-walled, 6-inch, clear anodized aluminum slats
- Integral weatherseal between the aluminum slats
- Heavy-duty hinge system for door panel assembly
- Durable powder coated steel side columns and head console (excludes US/R models)
Options
- Insulated slats
- Vision slats
- Ventilated slats
- Classic RAL and custom color match powder-coated finish
- Electric reversing edge with Ry-Wi® Wireless System
Benefits & Advantages of the Patented Rytec Spiral High-Performance Doors
Download our free guide outlining what makes the Rytec Spiral Door perfect for any type of application and the wide range of features that can be customized for individual door needs.
- Security & Access Control
- Reduced Heating & Cooling Costs
- Increased Productivity & Safety
- Reduced Maintenance & Downtime
- Enhanced Aesthetics with Customization
What Our Customers Have to Say
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the Spiral LP is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
