Spiral® VT High-Performance Door
Engineered for speed – along with high cycles, airflow, visibility, and security – the Spiral® VT ventilated slat door maximizes fresh air and ventilation while reducing pollutants and odors.
Innovative perforated slat design allows for airflow and provides security without the need for an additional door.

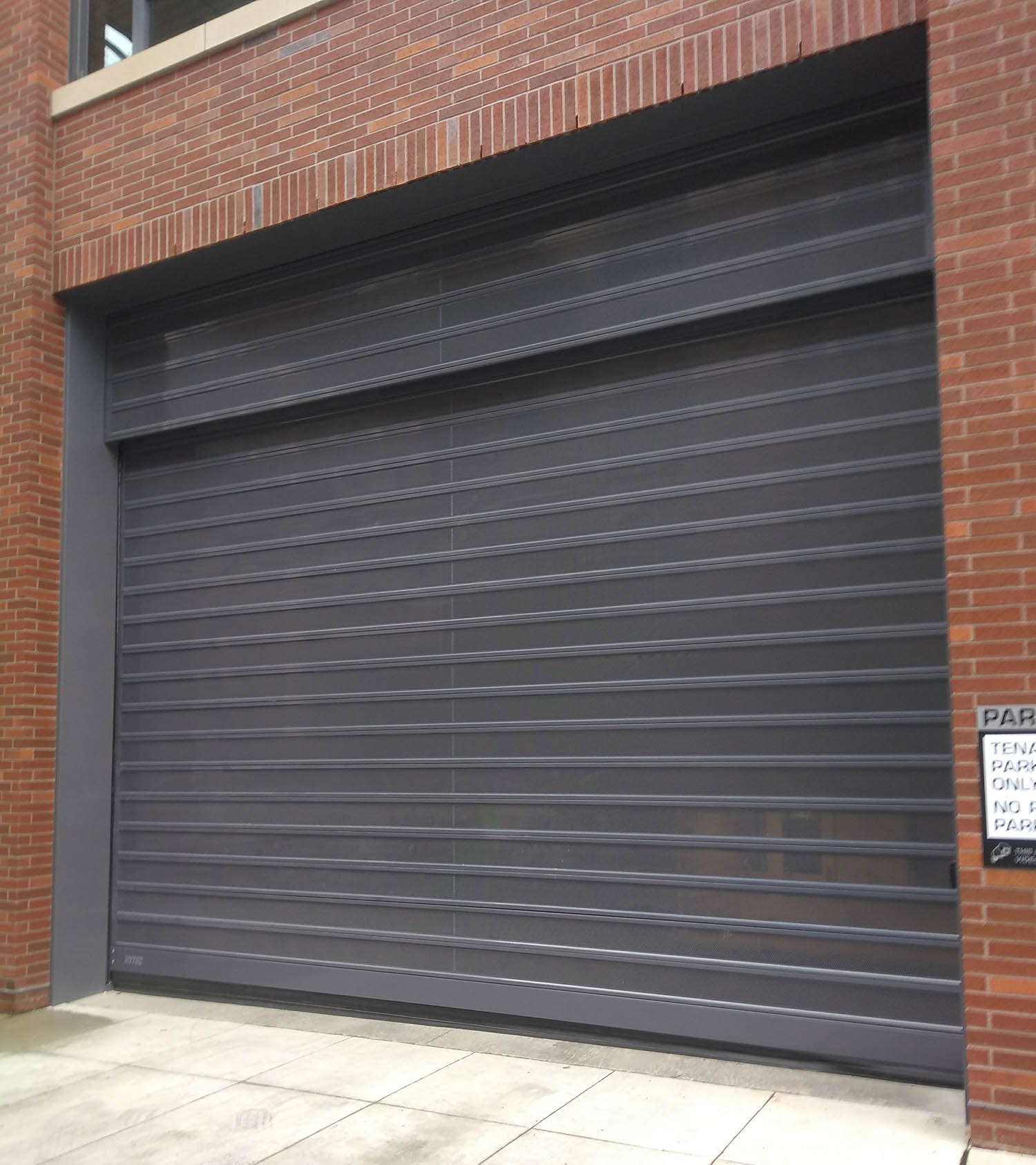

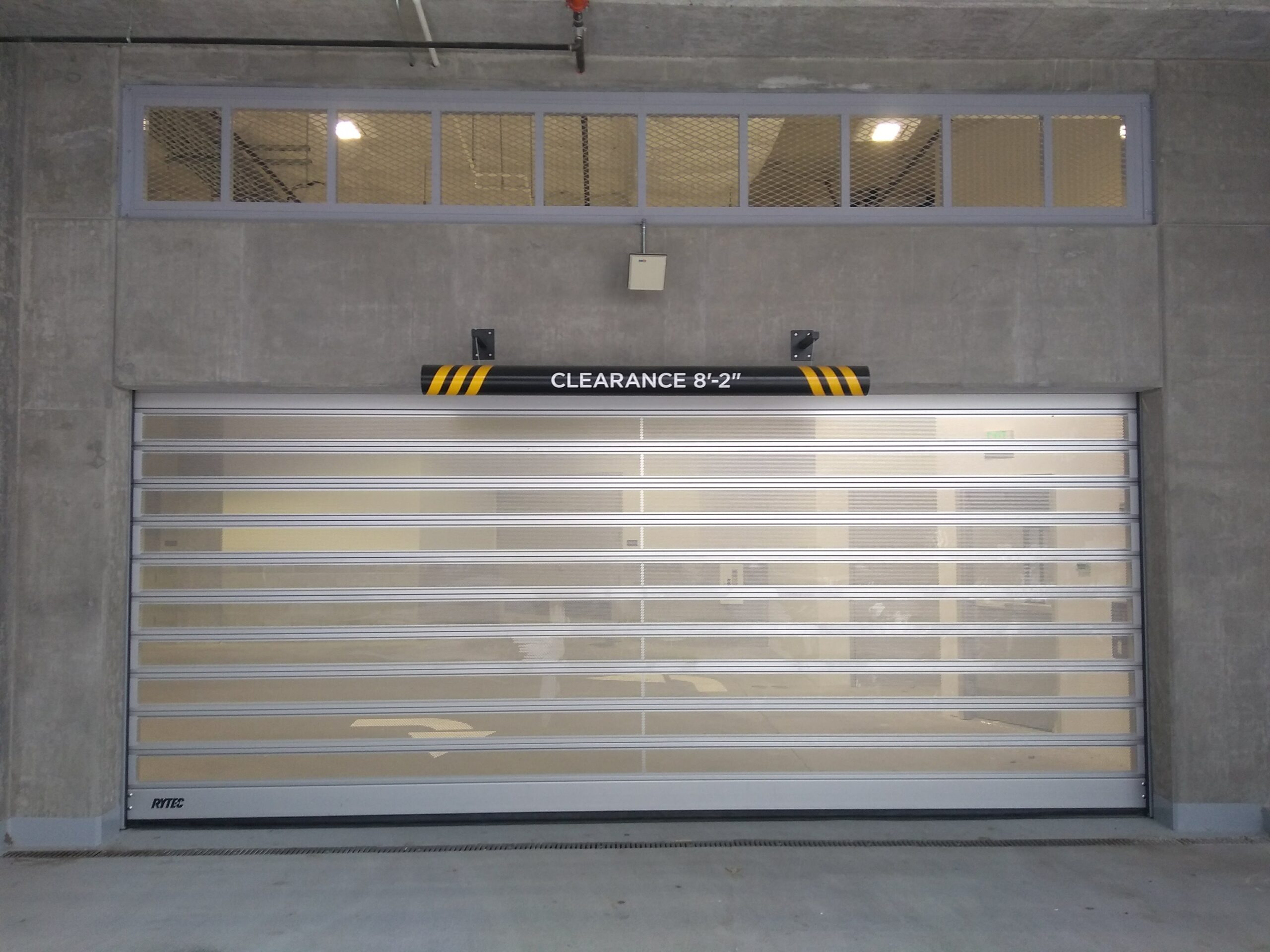

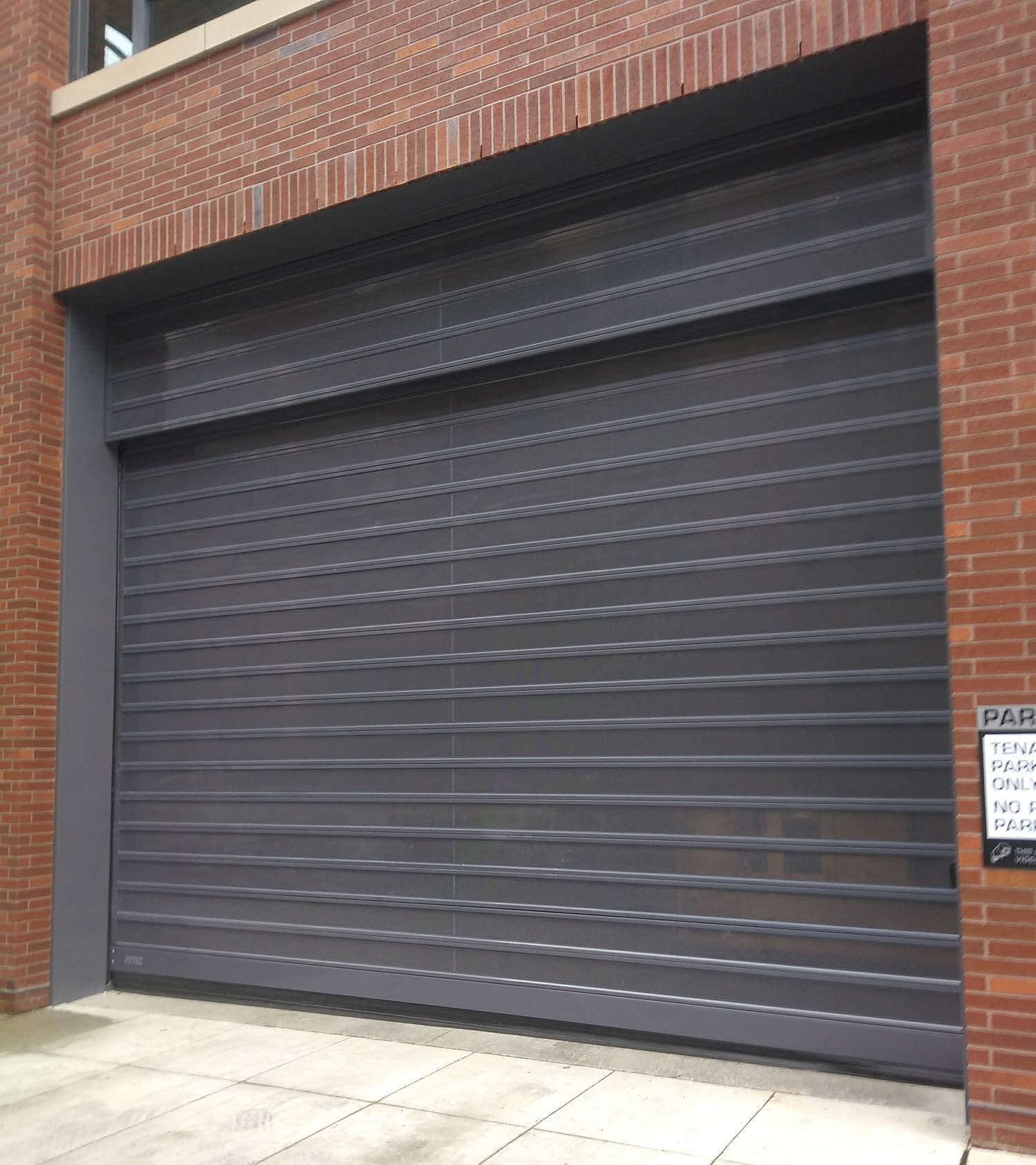

The Spiral VT perforated door is ideal for parking and security applications that require additional ventilation.
Spiral VT is backed by a 5-year limited warranty on motor/mechanical components and materials, plus a 2-year limited warranty on electrical components.
The Rytec Spiral® door portfolio includes models certified to withstand winds up to 175 miles per hour. See our hurricane rated doors.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.

Optional Pre-Wired Premium Package:
Reduces electrical connections, installation time and System 4® mounted in head assembly with smaller compact display unit used.
AC drive allows for soft acceleration and deceleration, reducing wear, increasing door longevity and providing quiet operation

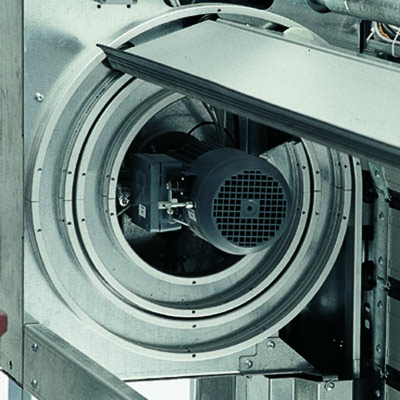

Patented Spiral
design eliminates
metal-to-metal
contact

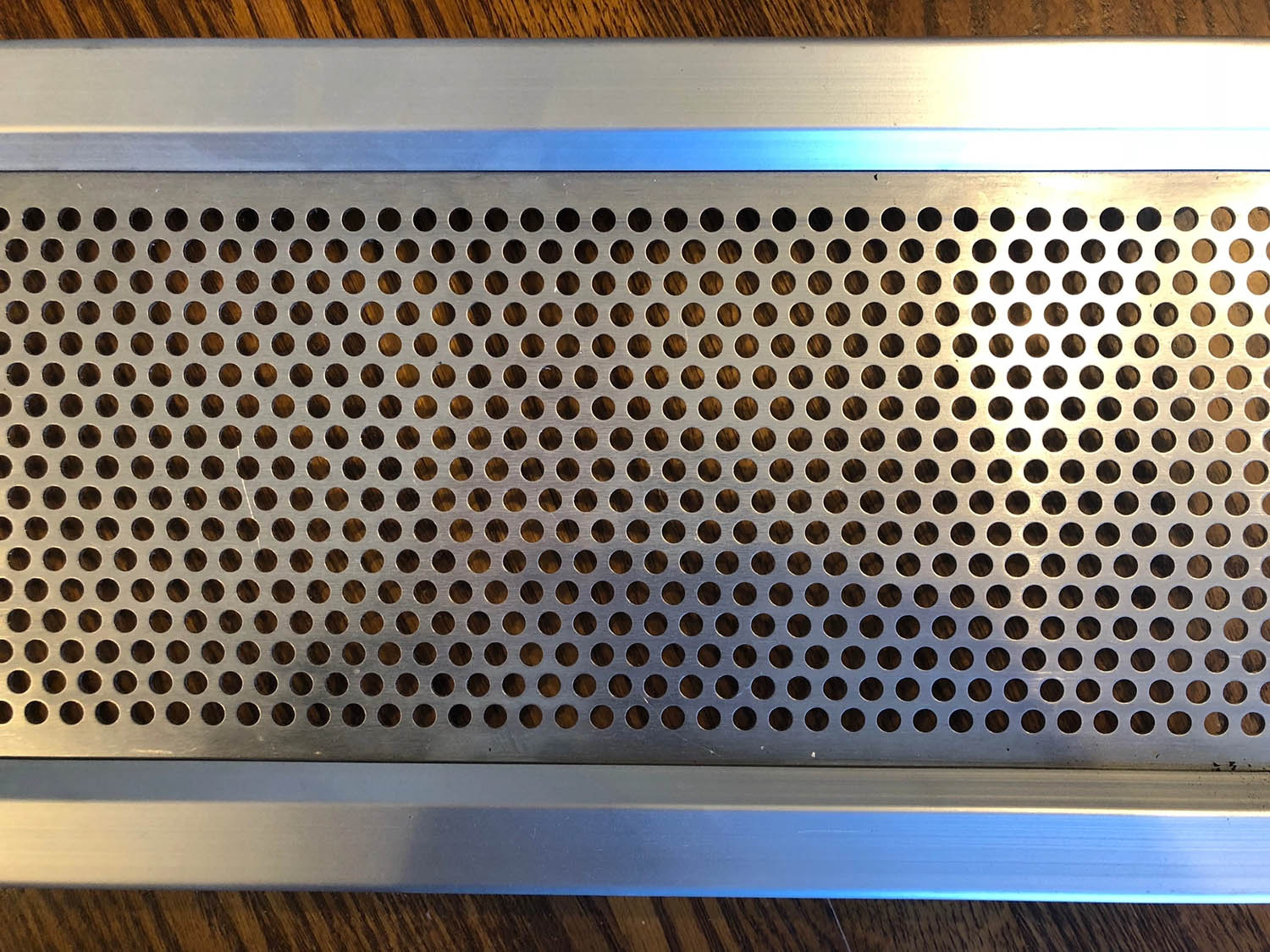

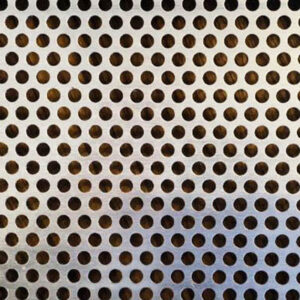

Perforated, round-hole style slats allow for air flow and security
SmartSurround® Advanced Detection & Alert SystemNext-generation pattern recognition and advanced traffic- sensing technology

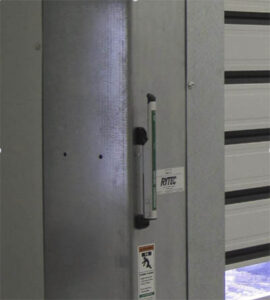

Brake release handle
helps door open
manually in case of
power failure

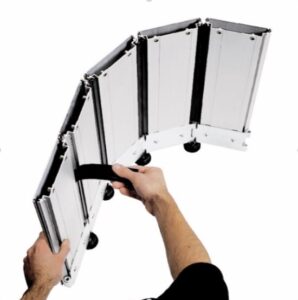

Integral rubber
weatherseals
between slats
Bottom bar
seal for energy
efficiency

-
Benefits
- Perforated, round-hole style slats allow for maximum air flow without compromising building security.
- Increased operational efficiency and traffic flow with opening speeds up to 100 inches per second.
- Counterbalance system, patented spiral design and AC drive reduce wear and increase door longevity, with minimal preventative maintenance.
- Spiral track design features no metal-to-metal contact for remarkably quiet operation.
-
Safety
- Advanced3 Light Curtain Safety System continuously monitors door opening.
- Mechanical brake release lever allows door opening in the event of power failure.
- SmartSurround® Advanced Detection & Alert System combines optical light curtains to monitor traffic and visual safety lights – all in one.

Performance You Can Count On
Construction
- 9-inch, perforated/round-hole style, clear anodized aluminum slats
- Integral weatherseal between the aluminum slats
- Heavy-duty hinge system for door panel assembly
- Durable powder coated steel side frames and head console
- Extension springs in side column
Options
- Hood and motor covers
- Classic RAL and custom color match powder coated finish
- Electric reversing edge with Ry-Wi® Wireless System
- Spiral® Pre-Wired Premium Package (size restrictions)

Benefits & Advantages of the Patented Rytec Spiral High-Performance Doors
Download our free guide outlining what makes the Rytec Spiral Door perfect for any type of application and the wide range of features that can be customized for individual door needs.
- Security & Access Control
- Reduced Heating & Cooling Costs
- Increased Productivity & Safety
- Reduced Maintenance & Downtime
- Enhanced Aesthetics with Customization

Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the Spiral VT is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
