The Economical, Break-Away Dock Door Alternative

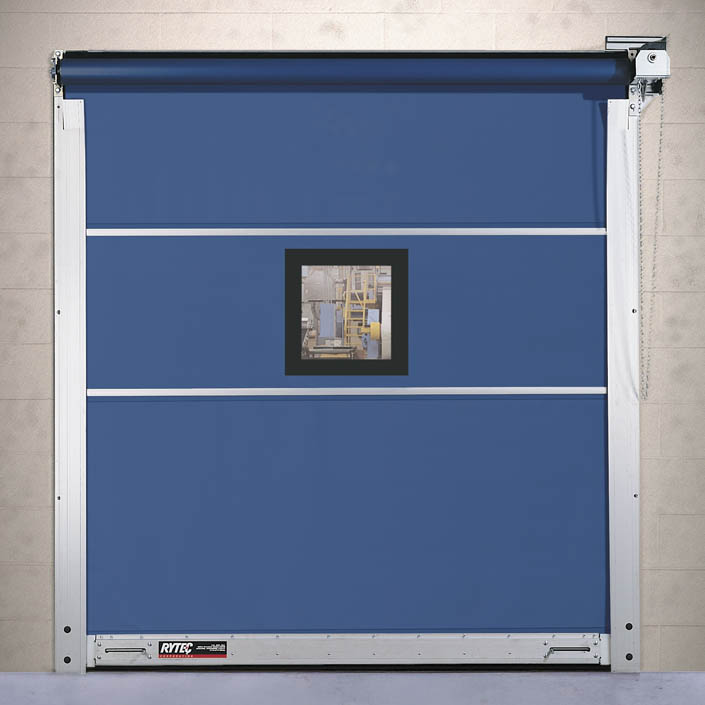

Bantam® High Performance Door
The Bantam roll up door is an economical fabric door alternative for high maintenance loading dock doors. The low profile design accommodates most dock applications. Manual operation is standard via a pull-chain hoist, with optional motorized operation. Also when looking for dependable, low maintenance and easy to operate roll up shop doors, look no farther than the Bantam.
Ideal for interior or exterior industrial applications with low to moderate traffic. The manual Bantam can be built up to 10′ wide x 10′ high, with a maximum size of 14′ wide x 15′ high for motorized doors.
Design Professionals: Visit our Rytec Pro Center! Search for products, documents and spec info; create design submittals and projects; easily save information to your account.
Low profile design requires only 6-1/4 inches of side clearance and 4-inches of side column projection
Manual drive system operated by use of a chain hoist and speed governor. Or optional motorized drive system with up/down switch
Vinyl panel standard or optional 2-ply, 3-ply Rylon USDA-compliant or screen material
Optional windows or full width, replaceable vision panel with integral wind ribs
Fully bolt-together anodized aluminum side columns with full-height weatherseal to seal against panel material
Bottom bar seal for energy efficiency and Quick-Set™ Break-Away™ tabs allow it to release in either direction without damaging the door
-
Benefits
- Durable components allow for accidental impact and unprecedented quality at an economical price.
- Simple door operation by chain hoist eliminates complicated electrical controls.
- Break-Away™ bottom bar is easily reset without tools, virtually eliminating maintenance.
- Modular panel design allows for easy replacement.
-
Safety
- Quick-Set™ Break-Away™ tabs allow the bottom bar to release in either direction without damaging the door.
- Optional full-width vision panel or 17″ window(s) provides visibility from both sides of the door.
Performance You Can Count On
Construction
- Fully bolt-together anodized aluminum low profile side columns
- Weatherseals in the side columns and the top of the opening
- Vinyl loop seal on bottom bar
- Vinyl door panel with integral panel connecting ribs
- Extruded aluminum break-away bottom bar
Options
- 2-ply, USDA-compliant or screen materials – multiple color options
- Hood cover, flat or slant
- Aluminum roll and door operator cover
- Full width vision panel or additional 17″ x 17″ windows
- Motorized ready configuration
- Motorized operation complete with a pneumatic reversing edge
- Damp or exterior applications or car wash configuration – consult factory for details
See the Bantam® in Action
What Our Customers Have to Say
Document Resources
Additional manuals and documents available in our Document Resource Center. Click here to browse.
Let Us Help You Select the Right Door
Not sure if the Bantam is right for your needs? Rytec is a leader in the high-performance door industry and can help you evaluate a new build or retrofit project for any type of application. With a wide range of products from rigid rolling, fabric roll-up and sliding doors – let our knowledgeable Sales Reps located across North America help you determine the best doors and features for your unique needs.
