The World’s First Release & Restore™ High-Speed Rubber Door

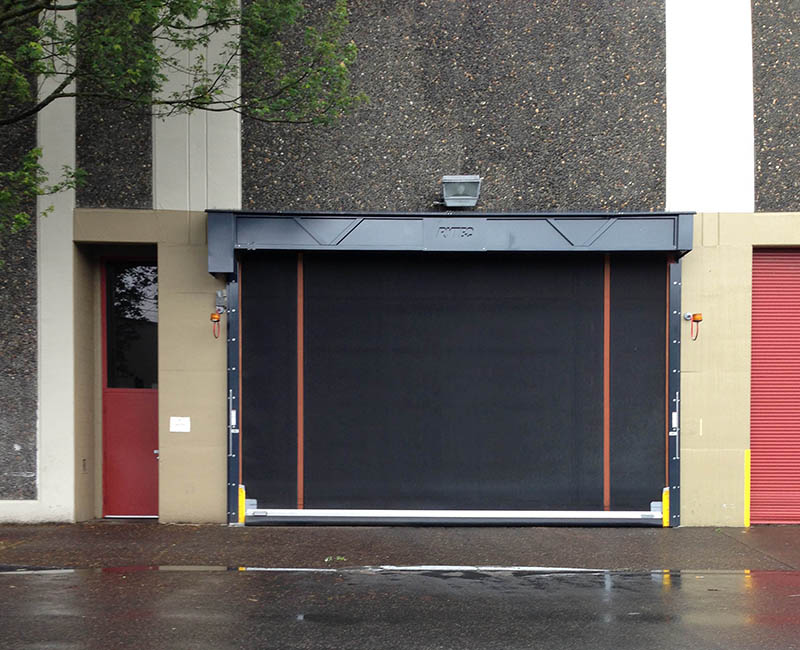

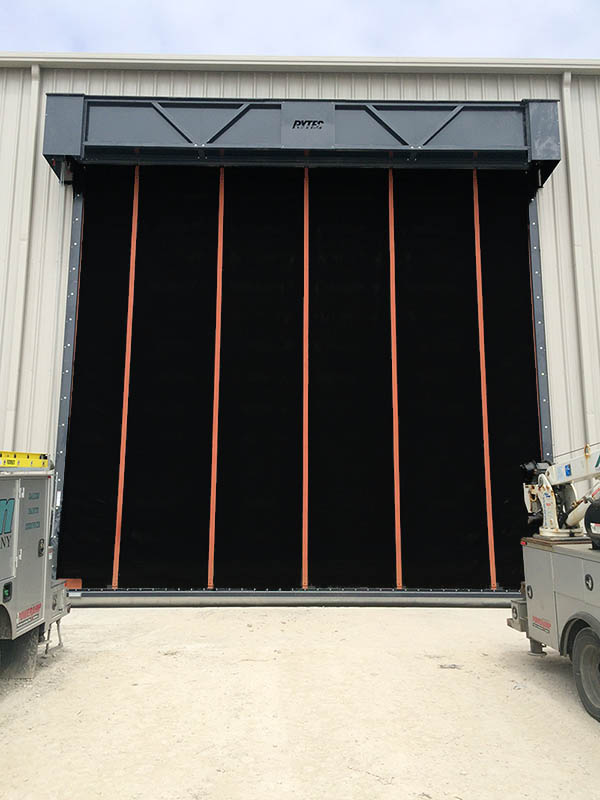

Powerhouse® SD High Performance Door

Heavy-duty construction, high-quality materials and patent-pending innovations have taken the Powerhouse® SD to a completely new level of resilience and performance. Compared to conventional industrial rubber roll-up doors, the Powerhouse® SD is virtually indestructible while offering power, performance and dependability to meet the demands of the world’s most extreme environments.

Ideal for heavy equipment, storage, government, parking, manufacturing and warehousing, the Powerhouse® SD can be built up to 24′ wide x 30′ high.

  • Stronger, tougher and sturdier than conventional rubber doors.
  • No shear bolts, wear-away parts or field repairs are required after most impacts.
  • Direct-drive, variable speed motor and no conventional wear parts extend the life of the door with minimal maintenance.
  • Release & Restore™ system allows the panel to release without damage to the panel, side frames or bottom bar, and self-reset in just seconds.
  • Intuitive and Customizable Pathwatch® Safety Light System provides advanced warning to vehicle drivers and pedestrians.
  • Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
  • A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
  • Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.
  • Chain hoist for manual operation.

Construction

  • 1/4-Inch thick SBR rubber panel
  • Segmented wind locks
  • Self-supporting structural steel side columns
  • Anodized aluminum bottom bar
  • Stay-Fast™ windstops
  • Ry-Tension™ system
  • Heavy-duty variable-speed direct-drive electric operator

Options

  • Blue or gray EPDM panel material
  • Hood and motor cover
  • Windows
red stripes

See the Powerhouse® SD in Action

The World’s First Release & Restore™ High-Speed Rubber Door

Document Resources

Additional manuals and documents available in our Document Resource Center. Click here to browse.
