The Ultimate High-Speed Rolling Door for Freezers and Coolers

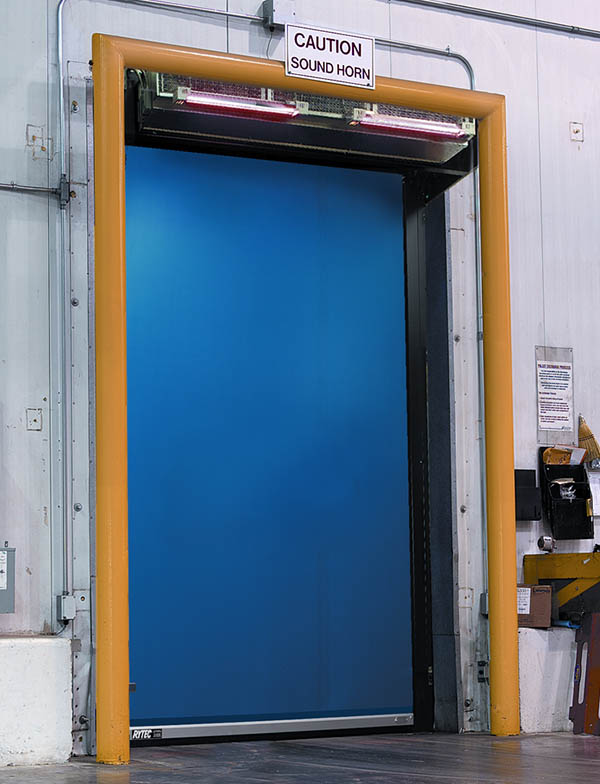

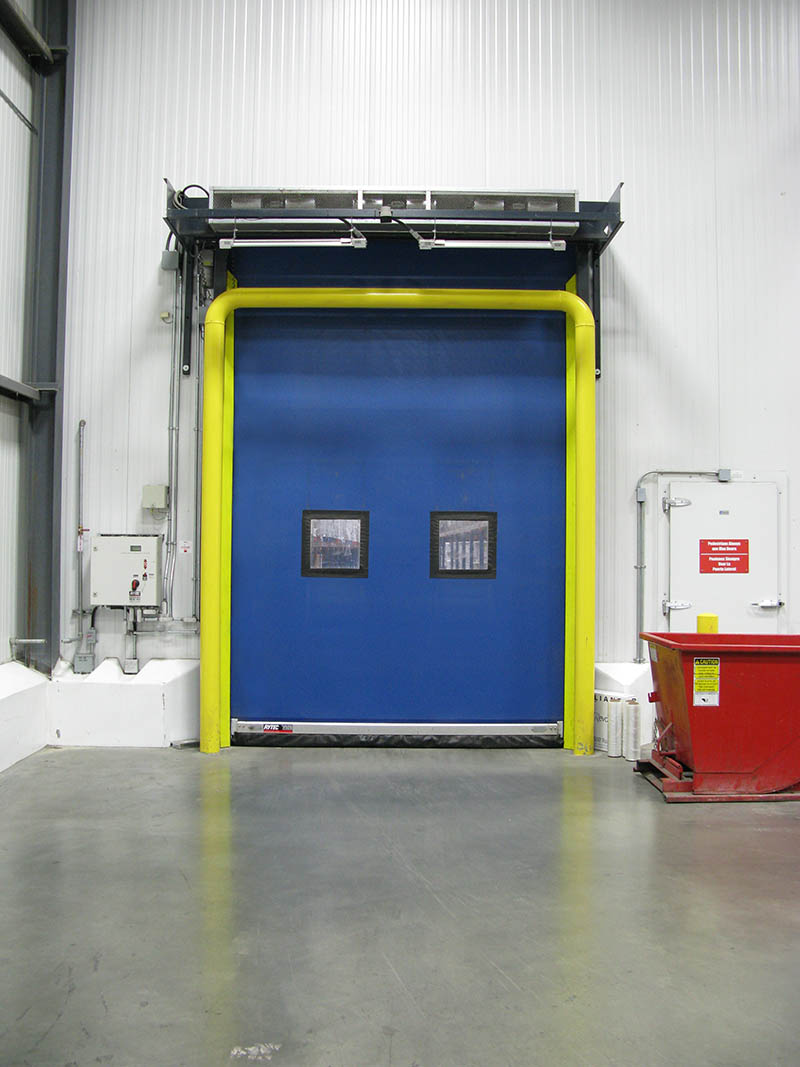

Turbo-Seal® Freezer Door

The Turbo-Seal Freezer provides minimized air infiltration and improved traffic flow by using high-speed operation and a tight full perimeter seal. Heated side columns and defrost system options virtually eliminate frost build-up. When it comes to high-speed roll-up freezer doors the Turbo-Seal Freezer is designed to meet the unique needs of cold storage facilities while maintaining a low profile, permitting it to fit almost anywhere.

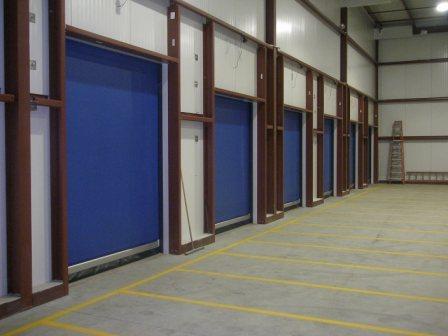

Ideal for cold storage and food and beverage operations, the Turbo-Seal Freezer and Cooler doors can be built up to 10′ wide x 14′ high.

  • Vinyl seals and a durable door panel provide a tight seal when the door is closed, reducing frost build-up and conserving energy.
  • Opening speeds up to 100 inches per second for improved traffic control and environmental control.
  • Counterweighted operation increases door opening speeds and reduces motor wear, increasing the life of the door.
  • Intuitive and Customizable Pathwatch® Safety Light System provides advanced warning to vehicle drivers and pedestrians.
  • Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
  • A sensitivity-adjustable pneumatic reversing edge reverses door if anything comes in contact with it.
  • Ry-Wi® Wireless System eliminates coil cords and provides two-way communication between control box and bottom bar.

Construction

  • 2-ply door panel
  • Self-supporting steel side frames
  • Full-height vinyl seals
  • Extruded aluminum break-away bottom bar
  • Dual-chamber pneumatic reversing edge
  • Edge-to-edge seal at top of door
  • Low-temperature hypalon loop seal on bottom bar
  • Tec-Light™ defrost system

Options

  • 3-Ply door panel
  • Tec-Lights with unheated blower or heated blower defrost systems
red stripes

See the Turbo-Seal® Freezer Door in Action

The Ultimate High-Speed Rolling Door for Freezers and Coolers
